HAYATE (UW125SC L2)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.29 HANDLE SWITCHFIG.30 FRAMEFIG.31 STANDFIG.32 FOOTRESTFIG.33 FUEL TANKFIG.34 FRAME COVERFIG.35 FRONT LEG SHIELDFIG.36 LOWER LEG SHIELDFIG.37 LEG SHIELDFIG.38 HELMET BOXFIG.39 FRONT FENDERFIG.40 HANDLE BARFIG.41 HANDLE COVERFIG.42 HANDLE LEVERFIG.43 REAR FENDERFIG.44 LABELFIG.45 SEATFIG.46 HANDLE, PILLION RIDERFIG.47 FRONT DAMPERFIG.48 STEERING STEMFIG.49 FRONT WHELLFIG.50 FRONT CALIPERFIG.51 FRONT MASTER CYLINDERFIG.52 SWINGING ARM REARFIG.53 REAR WHELL

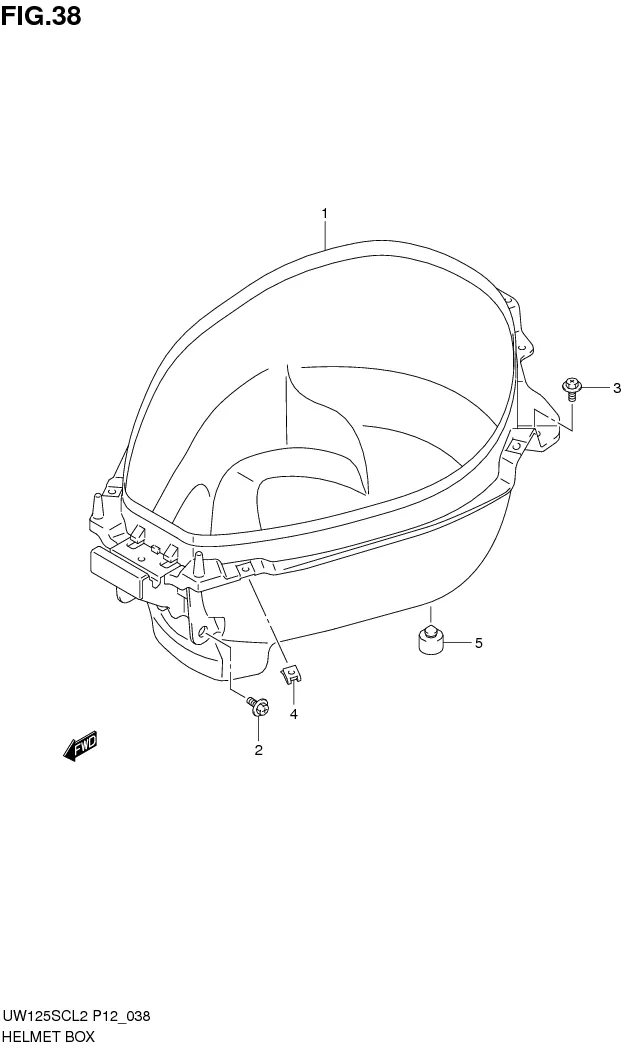

FIG.38 HELMET BOX

FIG.38 HELMET BOX
No No. Part Description Qty Price Per Pcs Remarks
1 92211-13HA0-000
SUB: 92211B13HA0N000		 BOX, HELMET 1 Rp269.000
2 09111-06107-000
SUB: 09111B06107N000		 BOLT 2 Rp4.000
3 09116-06168-000
SUB: 09116-06001-000		 BOLT (6X12) 2 Rp15.000
4 09148-05045-000 NUT 4 Rp4.000
5 92213-13H00-000
SUB: 92213B13H00N000		 CUSHION, HELMET BOX 1 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
