HAYATE (UW125SC L2)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.29 HANDLE SWITCHFIG.30 FRAMEFIG.31 STANDFIG.32 FOOTRESTFIG.33 FUEL TANKFIG.34 FRAME COVERFIG.35 FRONT LEG SHIELDFIG.36 LOWER LEG SHIELDFIG.37 LEG SHIELDFIG.38 HELMET BOXFIG.39 FRONT FENDERFIG.40 HANDLE BARFIG.41 HANDLE COVERFIG.42 HANDLE LEVERFIG.43 REAR FENDERFIG.44 LABELFIG.45 SEATFIG.46 HANDLE, PILLION RIDERFIG.47 FRONT DAMPERFIG.48 STEERING STEMFIG.49 FRONT WHELLFIG.50 FRONT CALIPERFIG.51 FRONT MASTER CYLINDERFIG.52 SWINGING ARM REARFIG.53 REAR WHELL

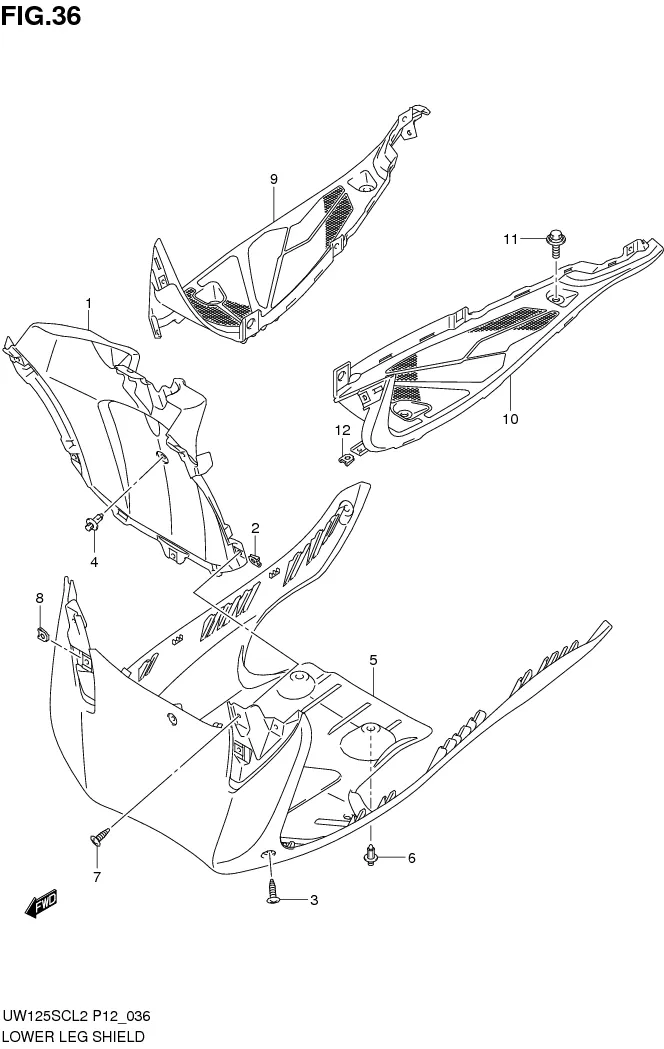

FIG.36 LOWER LEG SHIELD

FIG.36 LOWER LEG SHIELD
No No. Part Description Qty Price Per Pcs Remarks
1 48137B13HA0N000 SHIELD, LEG LOWER FRONT 1 -
2 09148-05045-000 NUT 5 Rp4.000
3 03541-0516A-000
SUB: 03541B0516BN000		 SCREW 5 Rp3.500
4 09409B06314N5PK000 CLIP (BLACK) 2 Rp2.200
5 48138B13HA0N000 SHIELD, LEG LOWER 1 -
6 09409B06314N5PK000 CLIP (BLACK) 2 Rp2.200
7 03541-0512A-000
SUB: 03541B0512AN000		 SCREW 2 Rp3.500
8 09148-05045-000 NUT 4 Rp4.000
9 48121-13HA0-000
SUB: 48121B13HA0N000		 FOOTBOARD, RH 1 Rp30.500
10 48122-13HA0-000
SUB: 48122B13HA0N000		 FOOTBOARD, LH 1 Rp30.500
11 09111-06102-000
SUB: 09111B06102N000		 BOLT 4 Rp3.500
12 09148-05045-000 NUT 10 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
