HAYATE (UW125SC L2)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.29 HANDLE SWITCHFIG.30 FRAMEFIG.31 STANDFIG.32 FOOTRESTFIG.33 FUEL TANKFIG.34 FRAME COVERFIG.35 FRONT LEG SHIELDFIG.36 LOWER LEG SHIELDFIG.37 LEG SHIELDFIG.38 HELMET BOXFIG.39 FRONT FENDERFIG.40 HANDLE BARFIG.41 HANDLE COVERFIG.42 HANDLE LEVERFIG.43 REAR FENDERFIG.44 LABELFIG.45 SEATFIG.46 HANDLE, PILLION RIDERFIG.47 FRONT DAMPERFIG.48 STEERING STEMFIG.49 FRONT WHELLFIG.50 FRONT CALIPERFIG.51 FRONT MASTER CYLINDERFIG.52 SWINGING ARM REARFIG.53 REAR WHELL

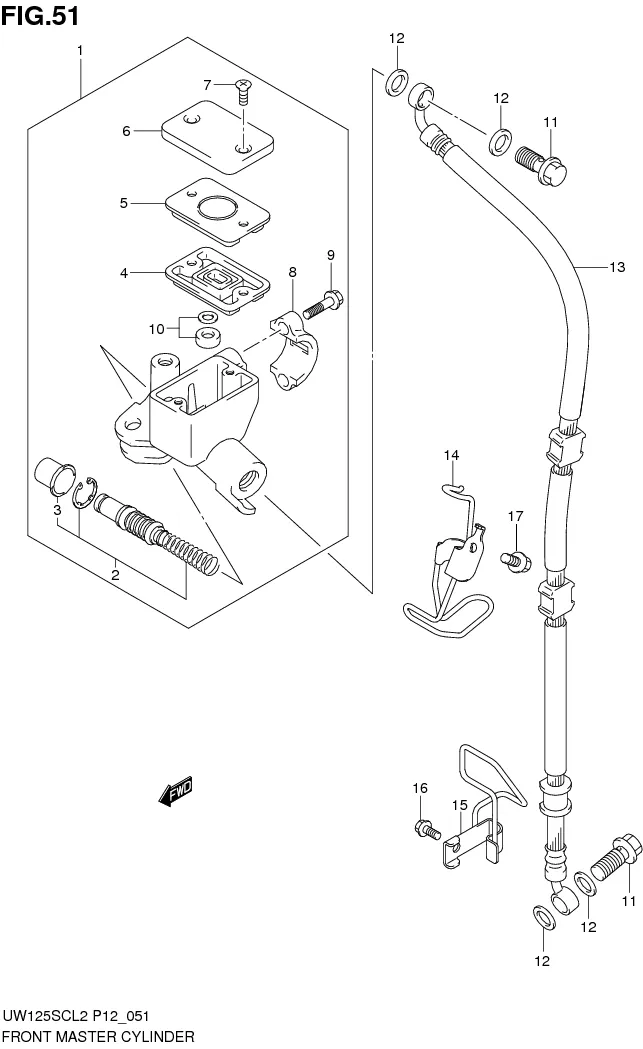

FIG.51 FRONT MASTER CYLINDER

FIG.51 FRONT MASTER CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 59600-41H31-000
SUB: 59600B41H30N000		 CYLINDER ASSY, FRONT MASTER 1 Rp820.000
2 59600-21810-000
SUB: 59600B21810N000		 ?PISTON & CUP SET 1 Rp73.500
3 59666-44300-000
SUB: 59666B44300N000		 ??BOOT 1 Rp16.000
4 59667-44B00-000
SUB: 59667B44B00N000		 ?DIAPHRAGM 1 Rp13.000
5 59668-21D20-000
SUB: 59668B21D20N000		 ?PLATE, DIAPHRAGM 1 Rp3.000
6 59669-21D20-000
SUB: 59669B21D20N000		 ?CAP 1 Rp40.000
7 69689-49300-000
SUB: 69689B49300N000		 ?SCREW 2 Rp3.000
8 59671-27C00-000
SUB: 59671B27C00N000		 ?HOLDER, MASTER CYLINDER 1 Rp18.000
9 59675-02FA0-000
SUB: 59675B02FA0N000		 ?BOLT 2 Rp9.000
10 59664-32F00-000
SUB: 59664B32F00N000		 ?PROTECTOR 1 Rp20.500
11 09360-10062-000
SUB: 09360B10062N000		 BOLT BRAKE FLUID 2 Rp13.000
12 09168-10033-000
SUB: 09168B10033N000		 WASHER (10.2X15X1.4) 4 Rp8.500
13 59480-13H10-000
SUB: 59480B13H10N000		 HOSE, FRONT BRAKE 1 Rp128.000
14 59260-13H10-000
SUB: 59260B13H10N000		 CLAMP, FRONT BRAKE HOSE 1 Rp16.000
15 DISCONTINUE
SUB: 59270B13H00N000		 CLAMP, FRONT BRAKE HOSE LOWER 1 -
16 01550-0610B-000
SUB: 01550B0610BN000		 BOLT 2 Rp3.000
17 01550B0612BN000 BOLT 1 Rp2.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
