HAYATE (UW125SC L2)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.29 HANDLE SWITCHFIG.30 FRAMEFIG.31 STANDFIG.32 FOOTRESTFIG.33 FUEL TANKFIG.34 FRAME COVERFIG.35 FRONT LEG SHIELDFIG.36 LOWER LEG SHIELDFIG.37 LEG SHIELDFIG.38 HELMET BOXFIG.39 FRONT FENDERFIG.40 HANDLE BARFIG.41 HANDLE COVERFIG.42 HANDLE LEVERFIG.43 REAR FENDERFIG.44 LABELFIG.45 SEATFIG.46 HANDLE, PILLION RIDERFIG.47 FRONT DAMPERFIG.48 STEERING STEMFIG.49 FRONT WHELLFIG.50 FRONT CALIPERFIG.51 FRONT MASTER CYLINDERFIG.52 SWINGING ARM REARFIG.53 REAR WHELL

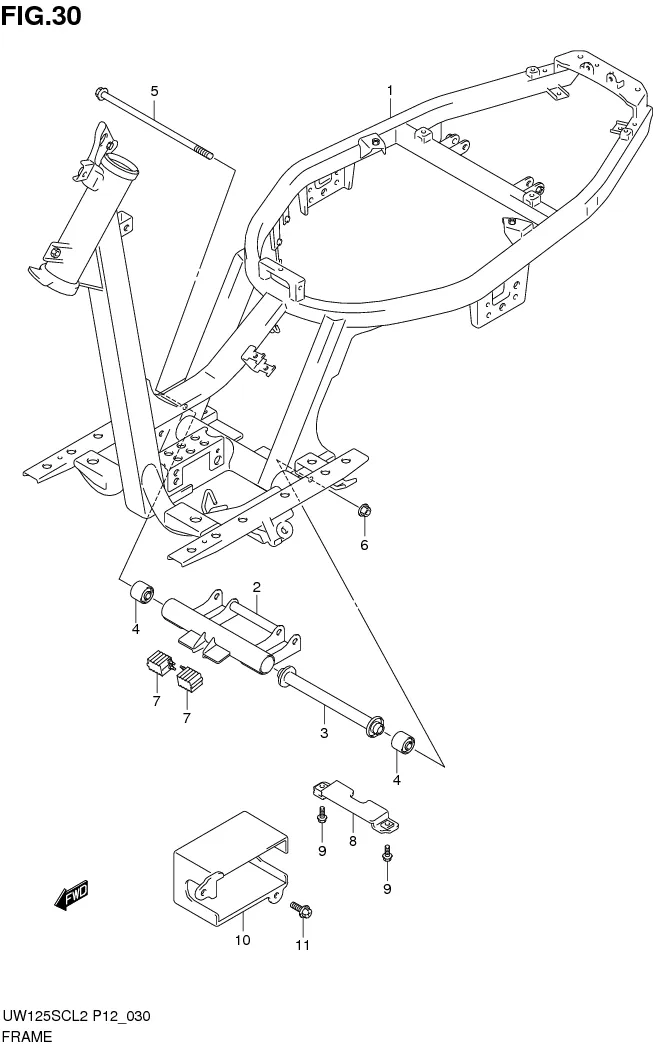

FIG.30 FRAME

FIG.30 FRAME
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 41100B13H10N000		 FRAME 1 -
2 41180-13H00-000
SUB: 41180B13H00N000		 BRACKET, CRANKCASE 1 Rp159.000
3 41170-13H00-000
SUB: 41170B13H00N000		 SPACER, CRANKCASE BRACKET 1 Rp49.000
4 41184-41H10-000
SUB: 41184B41H10N000		 BUSH, CRANKCASE BRACKET 2 Rp114.000
5 09103-12085-000 BOLT 1 Rp64.000
6 08319-3112A-000
SUB: 08319B3112AN000		 NUT 1 Rp7.000
7 DISCONTINUE
SUB: 41185B13H00N000		 CUSHION, SWING STOP 2 -
8 41190-13H00-000
SUB: 41190B13H00N000		 BRACKET, CRANKCASE UPPER 1 Rp18.500
9 01550-0816A-000
SUB: 01550B0816AN000		 BOLT 2 Rp6.000
10 41541-13H00-000
SUB: 41541B13H00N000		 HOLDER, BATTERY 1 Rp19.000
11 09111-06107-000
SUB: 09111B06107N000		 BOLT 2 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
