HAYATE (UW125SC L2)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.29 HANDLE SWITCHFIG.30 FRAMEFIG.31 STANDFIG.32 FOOTRESTFIG.33 FUEL TANKFIG.34 FRAME COVERFIG.35 FRONT LEG SHIELDFIG.36 LOWER LEG SHIELDFIG.37 LEG SHIELDFIG.38 HELMET BOXFIG.39 FRONT FENDERFIG.40 HANDLE BARFIG.41 HANDLE COVERFIG.42 HANDLE LEVERFIG.43 REAR FENDERFIG.44 LABELFIG.45 SEATFIG.46 HANDLE, PILLION RIDERFIG.47 FRONT DAMPERFIG.48 STEERING STEMFIG.49 FRONT WHELLFIG.50 FRONT CALIPERFIG.51 FRONT MASTER CYLINDERFIG.52 SWINGING ARM REARFIG.53 REAR WHELL

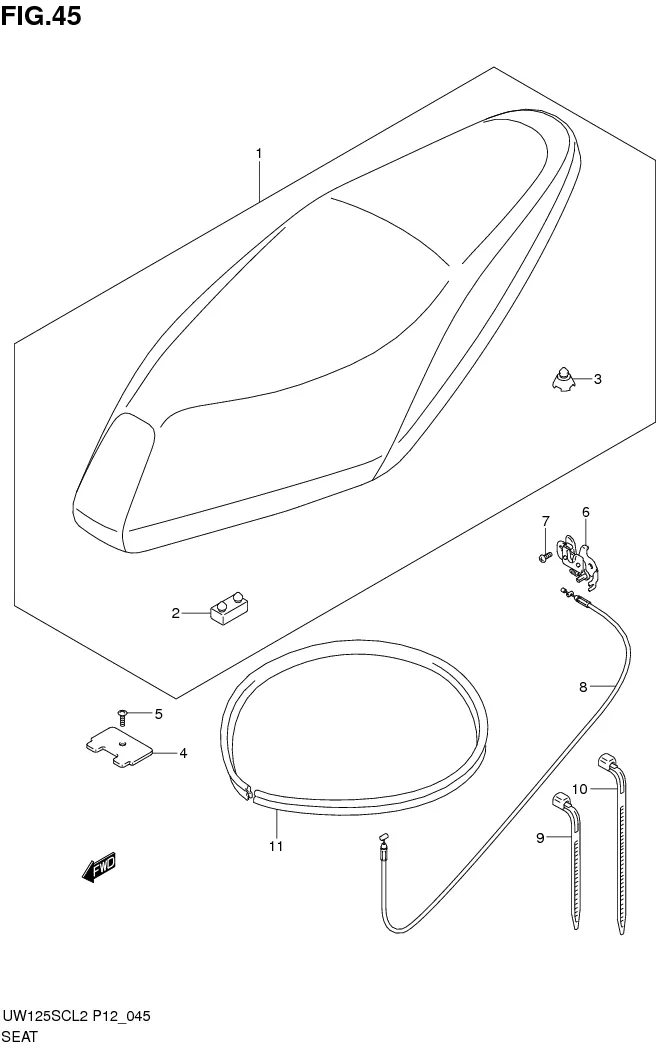

FIG.45 SEAT

FIG.45 SEAT
No No. Part Description Qty Price Per Pcs Remarks
1 45100B13HA0N000 SEAT ASSY 1 -
2 45149-41HA0-000
SUB: 45149B41HA0N000		 ?CUSHION, SEAT MOUNT CENTER 2 Rp11.500
3 45148-13H20-000
SUB: 45148B13H20N000		 ?CUSHION, SEAT MOUNT REAR 2 Rp7.500
4 45271-41H00-000
SUB: 45271B41H00N000		 PLATE, SEAT HINGE 1 Rp7.500
5 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 1 Rp3.500
6 45700-09G30-000
SUB: 45700B09G10N000		 BRACKET, STRIKER SUPPORT 1 Rp33.500
7 01547-0610A-000
SUB: 02112B0610AN000		 SCREW 2 Rp3.000
8 45280-13HA0-000
SUB: 45280B13HA0N000		 CABLE, SEAT LOCK 1 Rp46.000
9 09407-18402-000 CLAMP (L:165) 4 Rp8.000
10 DISCONTINUE
SUB: 09407B25401N000		 CLAMP (L:235) 2 -
11 45211-13H00-000
SUB: 45211B13H00N000		 MOLDING, SEAT 1 Rp30.000
12 45160B13HA0N000 COVER COMP,SEAT TRIM 1 - NOT ILLUSTRATED

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
