HAYATE (UW125SC L2)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.29 HANDLE SWITCHFIG.30 FRAMEFIG.31 STANDFIG.32 FOOTRESTFIG.33 FUEL TANKFIG.34 FRAME COVERFIG.35 FRONT LEG SHIELDFIG.36 LOWER LEG SHIELDFIG.37 LEG SHIELDFIG.38 HELMET BOXFIG.39 FRONT FENDERFIG.40 HANDLE BARFIG.41 HANDLE COVERFIG.42 HANDLE LEVERFIG.43 REAR FENDERFIG.44 LABELFIG.45 SEATFIG.46 HANDLE, PILLION RIDERFIG.47 FRONT DAMPERFIG.48 STEERING STEMFIG.49 FRONT WHELLFIG.50 FRONT CALIPERFIG.51 FRONT MASTER CYLINDERFIG.52 SWINGING ARM REARFIG.53 REAR WHELL

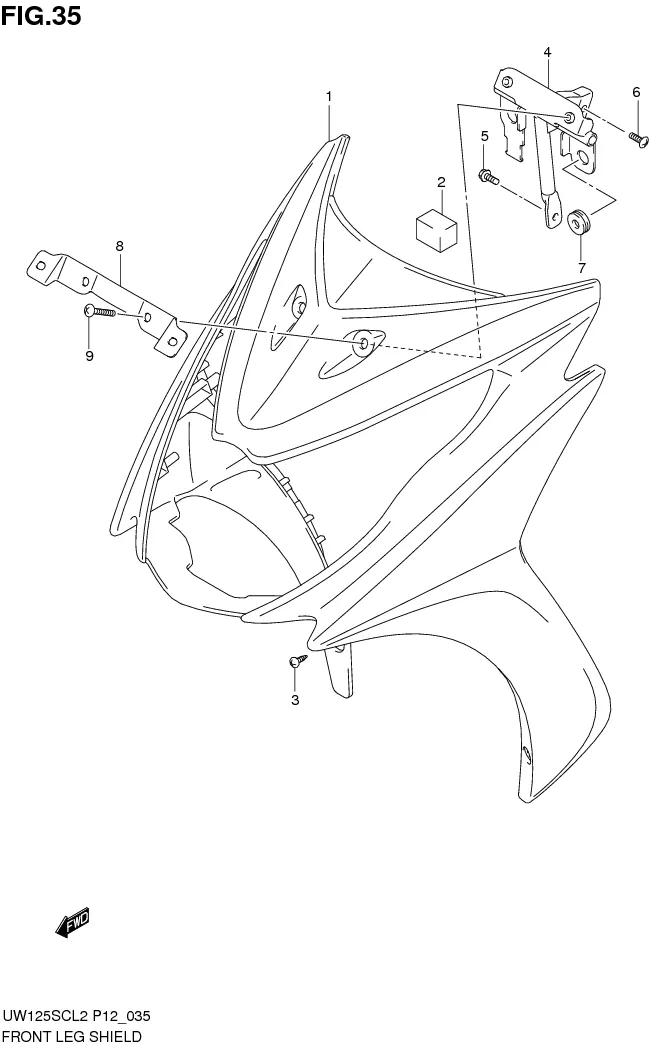

FIG.35 FRONT LEG SHIELD

FIG.35 FRONT LEG SHIELD
No No. Part Description Qty Price Per Pcs Remarks
1 48111B13HA0N000 SHIELD, LEG FRONT 1 -
2 56352-07H00-000
SUB: 56352B07H00N000		 CUSHION, LEG SHIELD FRONT 1 Rp3.000
3 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 4 Rp3.500
4 DISCONTINUE
SUB: 48150B13HA0N000		 BRACE, LEG SHIELD 1 -
5 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
6 02142-0612A-000
SUB: 02142B0612AN000		 SCREW 1 Rp4.000
7 48169-12JA0-000
SUB: 09320B08018N000		 CUSHION 2 Rp15.000
8 DISCONTINUE
SUB: 48190B13HA0N000		 PLATE, FRONT LICENSE 1 -
9 02142-0635A-000 SCREW 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
