HAYATE (UW125SC L2)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.29 HANDLE SWITCHFIG.30 FRAMEFIG.31 STANDFIG.32 FOOTRESTFIG.33 FUEL TANKFIG.34 FRAME COVERFIG.35 FRONT LEG SHIELDFIG.36 LOWER LEG SHIELDFIG.37 LEG SHIELDFIG.38 HELMET BOXFIG.39 FRONT FENDERFIG.40 HANDLE BARFIG.41 HANDLE COVERFIG.42 HANDLE LEVERFIG.43 REAR FENDERFIG.44 LABELFIG.45 SEATFIG.46 HANDLE, PILLION RIDERFIG.47 FRONT DAMPERFIG.48 STEERING STEMFIG.49 FRONT WHELLFIG.50 FRONT CALIPERFIG.51 FRONT MASTER CYLINDERFIG.52 SWINGING ARM REARFIG.53 REAR WHELL

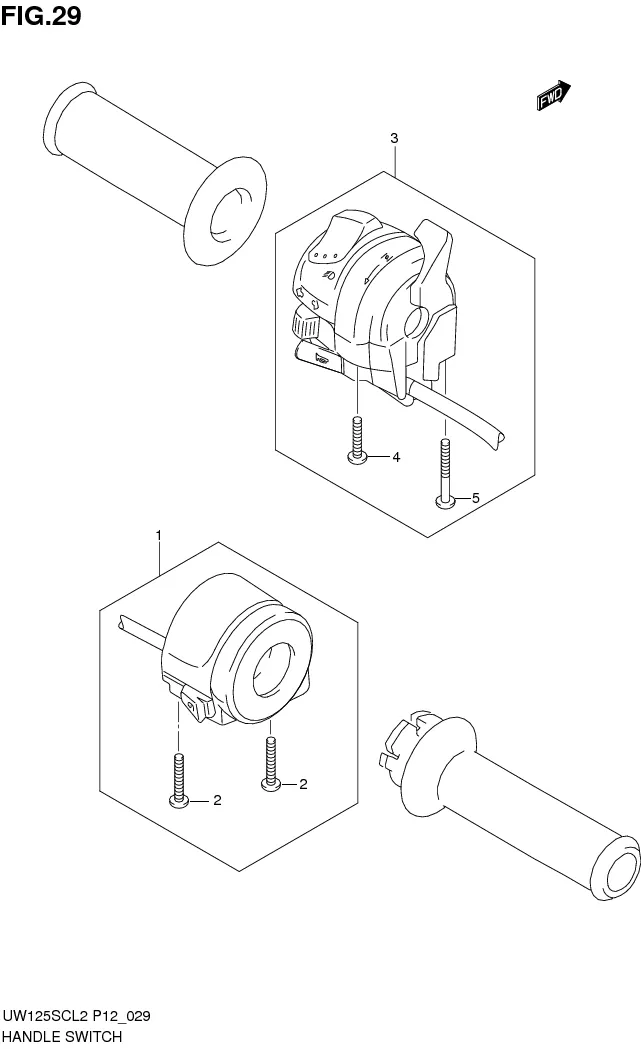

FIG.29 HANDLE SWITCH

FIG.29 HANDLE SWITCH
No No. Part Description Qty Price Per Pcs Remarks
1 37200-13H01-000
SUB: 37200B13H01N000		 SWITCH ASSY, HANDLE RH 1 Rp79.000
2 02112-0535B-000 ?SCREW 2 Rp13.000
3 37400-13H20-000
SUB: 37400B13H20N000		 SWITCH ASSY, HANDLE LH 1 Rp204.500
4 02112-0525A-000 ?SCREW 1 Rp10.500
5 02112-0545B-000 ?SCREW 1 Rp21.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
