HAYATE (UW125SC L2)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.29 HANDLE SWITCHFIG.30 FRAMEFIG.31 STANDFIG.32 FOOTRESTFIG.33 FUEL TANKFIG.34 FRAME COVERFIG.35 FRONT LEG SHIELDFIG.36 LOWER LEG SHIELDFIG.37 LEG SHIELDFIG.38 HELMET BOXFIG.39 FRONT FENDERFIG.40 HANDLE BARFIG.41 HANDLE COVERFIG.42 HANDLE LEVERFIG.43 REAR FENDERFIG.44 LABELFIG.45 SEATFIG.46 HANDLE, PILLION RIDERFIG.47 FRONT DAMPERFIG.48 STEERING STEMFIG.49 FRONT WHELLFIG.50 FRONT CALIPERFIG.51 FRONT MASTER CYLINDERFIG.52 SWINGING ARM REARFIG.53 REAR WHELL

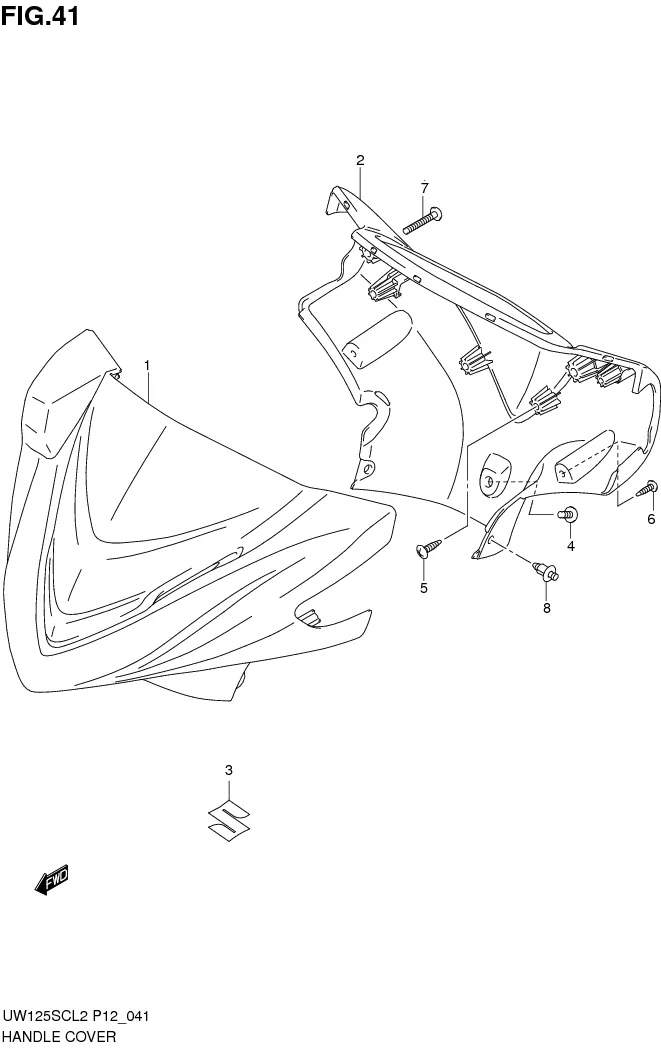

FIG.41 HANDLE COVER

FIG.41 HANDLE COVER
No No. Part Description Qty Price Per Pcs Remarks
1 56311B13HA0N000 COVER, HANDLE FRONT 1 -
2 56321B13HA0N000 COVER, HANDLE REAR 1 -
3 68281B13HA0N000 EMBLEM, "S" 1 -
4 02142-0512B-000
SUB: 02142B0512BN000		 SCREW 1 Rp5.500
5 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 2 Rp3.500
6 03541-0416B-000
SUB: 03541B0416BN000		 SCREW 2 Rp4.500
7 56316-13HA0-000
SUB: 56316B13HA0N000		 SCREW, HANDLE COVER FR & RR 2 Rp9.000
8 09409B06314N5PK000 CLIP (BLACK) 2 Rp2.200

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
