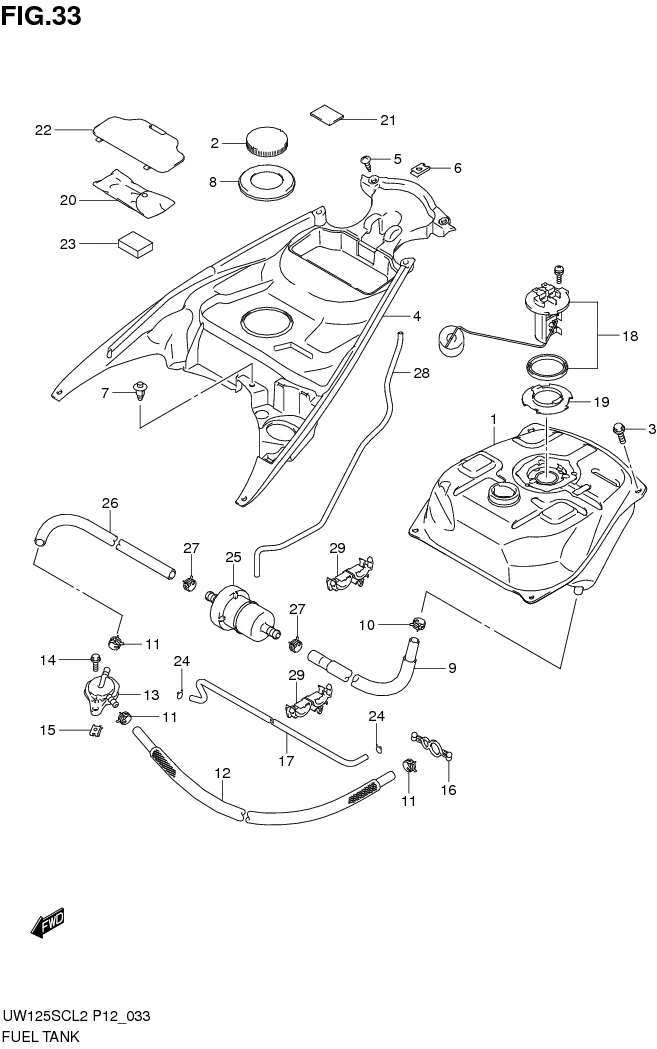

FIG.33 FUEL TANK

FIG.33 FUEL TANK
No No. Part Description Qty Price Per Pcs Remarks
1 44110-13HA0-000
SUB: 44110B13HA0N000		 TANK, FUEL 1 Rp283.000
2 44210-35014AS01 CAP, FUEL TANK FILTER 1 Rp21.500
3 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 4 -
4 44271-13HA0-000
SUB: 44271B13HA0N000		 COVER, FUEL TANK 1 Rp55.000
5 03541-0512A-000
SUB: 03541B0512AN000		 SCREW 2 Rp3.500
6 09148-05045-000 NUT 2 Rp4.000
7 09409B06314N5PK000 CLIP (BLACK) 5 Rp2.200
8 44261-41H10-000
SUB: 44261B41H10N000		 RUBBER, FUEL TANK INLET 1 Rp5.500
9 DISCONTINUE
SUB: 44421B13H20N000		 HOSE, FUEL NO.1 1 -
10 09401-11413-000
SUB: 09401B11413N000		 CLIP 1 Rp2.500
11 09401-09403-000
SUB: 09401B09403N000		 CLIP 3 Rp3.500
12 DISCONTINUE
SUB: 44422B13H10N000		 HOSE, FUEL NO.3 1 -
13 44300-09G00-000
SUB: 44300B09G00N000		 COCK ASSY, FUEL 1 Rp278.000
14 01550-0616A-000
SUB: 01550B0616AN000		 BOLT 1 Rp3.500
15 DISCONTINUE
SUB: 09148-06018-000		 NUT 1 -
16 DISCONTINUE
SUB: 44427B46G00N000		 CLIP 1 -
17 44425-13H10-000
SUB: 44425B13H10N000		 HOSE, VACUUM 1 Rp9.500
18 34810-13HA0-000
SUB: 34810B13HA0N000		 GAUGE ASSY, FUEL LEVEL SENDER 1 Rp102.500
19 34886-03A00-000 PLATE, FUEL LEVEL SENDER GAUGE 1 Rp8.000
20 96510-13H00-000
SUB: 96510B13H00N000		 TOOL ASSY 1 Rp42.000
21 33652-38000-000
SUB: 33652-38000L000		 CUSHION, TOOL HOLDER 2 Rp3.000
22 47433-13H10-000
SUB: 47433B13H10N000		 COVER, TOOL HOLDER (BLACK) 1 Rp24.000
23 33652-38000-000
SUB: 33652-38000L000		 CUSHION, FUEL FILTER 1 Rp3.000
24 09401-06101-000
SUB: 09401B06101N000		 CLIP 2 Rp2.000
25 44330-13H00-000
SUB: 44330B13H00N000		 FILTER, FUEL 1 Rp142.000
26 DISCONTINUE
SUB: 44424B13H20N000		 HOSE, FUEL NO.2 1 -
27 09401-09403-000
SUB: 09401B09403N000		 CLIP 2 Rp3.500
28 44423-13H10-000
SUB: 44423B13H10N000		 HOSE, FUEL DRAIN 1 Rp21.500
29 09403-16308-000 CLAMP 3 Rp14.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
