HAYATE (UW125SC L2)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.29 HANDLE SWITCHFIG.30 FRAMEFIG.31 STANDFIG.32 FOOTRESTFIG.33 FUEL TANKFIG.34 FRAME COVERFIG.35 FRONT LEG SHIELDFIG.36 LOWER LEG SHIELDFIG.37 LEG SHIELDFIG.38 HELMET BOXFIG.39 FRONT FENDERFIG.40 HANDLE BARFIG.41 HANDLE COVERFIG.42 HANDLE LEVERFIG.43 REAR FENDERFIG.44 LABELFIG.45 SEATFIG.46 HANDLE, PILLION RIDERFIG.47 FRONT DAMPERFIG.48 STEERING STEMFIG.49 FRONT WHELLFIG.50 FRONT CALIPERFIG.51 FRONT MASTER CYLINDERFIG.52 SWINGING ARM REARFIG.53 REAR WHELL

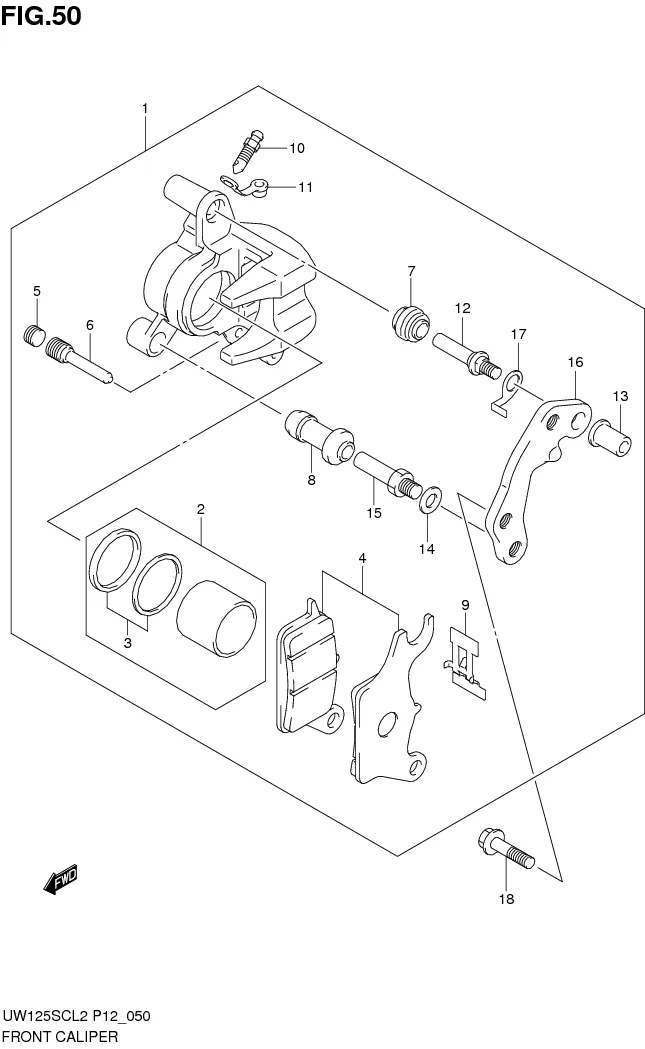

FIG.50 FRONT CALIPER

FIG.50 FRONT CALIPER
No No. Part Description Qty Price Per Pcs Remarks
1 59100-41HD0-000
SUB: 59100B41HD0N000		 CALIPER ASSY, FRONT 1 Rp897.500
2 59100-41840-000
SUB: 59100B41840N000		 ?PISTON SET 1 Rp150.500
3 59100-38860-000
SUB: 59100B38860N000		 ??SEAL SET, PISTON 1 Rp37.500
4 59100-41830-000
SUB: 59100B41830N000		 ?PAD SET 1 Rp117.500
5 59146-21E10-000
SUB: 59146B21E10N000		 ?PLUG, PIN 1 Rp5.500
6 59345-41HA0-000
SUB: 59345B41HA0N000		 ?PIN 1 Rp29.500
7 59303-14500-000
SUB: 59303B14500N000		 ?BOOT 1 Rp12.500
8 59386-13A00-000
SUB: 59386B13A00N000		 ?BOOT 1 Rp14.000
9 59115-41HA0-000
SUB: 59115B41HA0N000		 ?SPRING 1 Rp28.500
10 59121-01A00-000
SUB: 59121B01A00N000		 ?BLEEDER 1 Rp14.500
11 59122-01A00-000
SUB: 59122B01A00N000		 ?CAP, BLEEDER 1 Rp3.000
12 59387-41HA0-000
SUB: 59387B41HA0N000		 ?PIN, BOLT 1 Rp15.000
13 59388-41HA0-000
SUB: 59388B41HA0N000		 ?NUT 1 Rp13.000
14 59314-13A00-000
SUB: 59314B13A00N000		 ?WASHER 1 Rp3.000
15 59382-13A00-000
SUB: 59382B13A00N000		 ?BOLT 1 Rp13.500
16 59351-41HA0-000
SUB: 59351B41HA0N000		 ?BRACKET 1 Rp40.000
17 59133-41HA0-000
SUB: 59133B41HA0N000		 ?RETAINER, BRACKET 1 Rp7.500
18 59199-07H00-000
SUB: 59199B07H00N000		 BOLT, CALIPER 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
