HAYATE (UW125SC L2)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.29 HANDLE SWITCHFIG.30 FRAMEFIG.31 STANDFIG.32 FOOTRESTFIG.33 FUEL TANKFIG.34 FRAME COVERFIG.35 FRONT LEG SHIELDFIG.36 LOWER LEG SHIELDFIG.37 LEG SHIELDFIG.38 HELMET BOXFIG.39 FRONT FENDERFIG.40 HANDLE BARFIG.41 HANDLE COVERFIG.42 HANDLE LEVERFIG.43 REAR FENDERFIG.44 LABELFIG.45 SEATFIG.46 HANDLE, PILLION RIDERFIG.47 FRONT DAMPERFIG.48 STEERING STEMFIG.49 FRONT WHELLFIG.50 FRONT CALIPERFIG.51 FRONT MASTER CYLINDERFIG.52 SWINGING ARM REARFIG.53 REAR WHELL

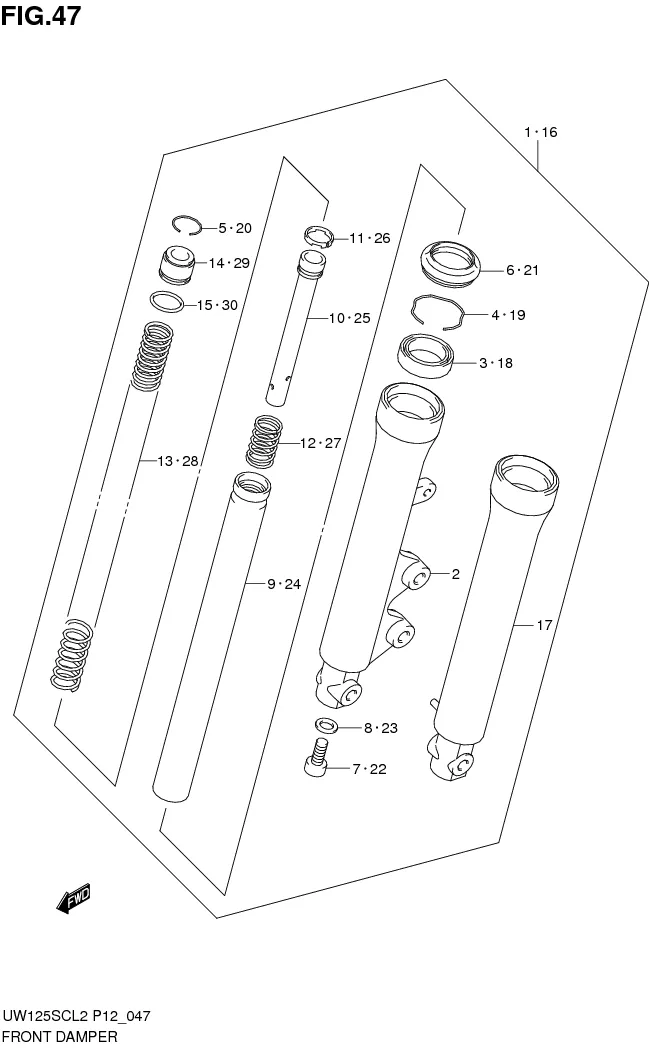

FIG.47 FRONT DAMPER

FIG.47 FRONT DAMPER
No No. Part Description Qty Price Per Pcs Remarks
1 51103B13H40N000 DAMPER ASSY, FRONT FORK RH 1 -
2 51130B13H40N000 ?TUBE, OUTER RH 1 -
3 51153B23F00N000 ?OIL SEAL 1 Rp18.000
4 51156-45H00-000
SUB: 51156B45H00N000		 ?RING, SNAP 1 Rp6.000
5 51156-13H40-000
SUB: 51156B13H40N000		 ?RING, SNAP 1 Rp3.500
6 51173-23F00-000
SUB: 51173B23F00N000		 ?SEAL, DUST 1 Rp41.500
7 DISCONTINUE
SUB: 51147B45H00N000		 ?BOLT 1 -
8 51148-41310-000
SUB: 51148B41310N000		 ?GASKET 1 Rp8.500
9 51110-13H40-000
SUB: 51110B13H40N000		 ?TUBE, INNER 1 Rp312.500
10 51146-13H00-000
SUB: 51146B13H00N000		 ?CYLINDER 1 Rp45.500
11 51196-39140-000
SUB: 51196B39140N000		 ?RING, PISTON 1 Rp7.500
12 51177B35400N000 ?SPRING, REBOUNE 1 Rp7.000
13 51171-13H40-000
SUB: 51171B13H40N000		 ?SPRING, FRONT 1 Rp27.000
14 51351-45HE0-000
SUB: 51351B45H00N000		 ?CAP 1 Rp15.000
15 51181-37B00-000
SUB: 51181B37B00N000		 ?O RING 1 Rp5.000
16 51104B13H40N000 DAMPER ASSY, FRONT FORK LH 1 -
17 51140B13H40N000 ?TUBE, OUTER LH 1 -
18 51153B23F00N000 ?OIL SEAL 1 Rp18.000
19 51156-45H00-000
SUB: 51156B45H00N000		 ?RING, SNAP 1 Rp6.000
20 51156-13H40-000
SUB: 51156B13H40N000		 ?RING, SNAP 1 Rp3.500
21 51173-23F00-000
SUB: 51173B23F00N000		 ?SEAL, DUST 1 Rp41.500
22 DISCONTINUE
SUB: 51147B45H00N000		 ?BOLT 1 -
23 51148-41310-000
SUB: 51148B41310N000		 ?GASKET 1 Rp8.500
24 51110-13H40-000
SUB: 51110B13H40N000		 ?TUBE, INNER 1 Rp312.500
25 51146-13H00-000
SUB: 51146B13H00N000		 ?CYLINDER 1 Rp45.500
26 51196-39140-000
SUB: 51196B39140N000		 ?RING, PISTON 1 Rp7.500
27 51177B35400N000 ?SPRING, REBOUNE 1 Rp7.000
28 51171-13H40-000
SUB: 51171B13H40N000		 ?SPRING, FRONT 1 Rp27.000
29 51351-45HE0-000
SUB: 51351B45H00N000		 ?CAP 1 Rp15.000
30 51181-37B00-000
SUB: 51181B37B00N000		 ?O RING 1 Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
