HAYATE (UW125SC L2)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.29 HANDLE SWITCHFIG.30 FRAMEFIG.31 STANDFIG.32 FOOTRESTFIG.33 FUEL TANKFIG.34 FRAME COVERFIG.35 FRONT LEG SHIELDFIG.36 LOWER LEG SHIELDFIG.37 LEG SHIELDFIG.38 HELMET BOXFIG.39 FRONT FENDERFIG.40 HANDLE BARFIG.41 HANDLE COVERFIG.42 HANDLE LEVERFIG.43 REAR FENDERFIG.44 LABELFIG.45 SEATFIG.46 HANDLE, PILLION RIDERFIG.47 FRONT DAMPERFIG.48 STEERING STEMFIG.49 FRONT WHELLFIG.50 FRONT CALIPERFIG.51 FRONT MASTER CYLINDERFIG.52 SWINGING ARM REARFIG.53 REAR WHELL

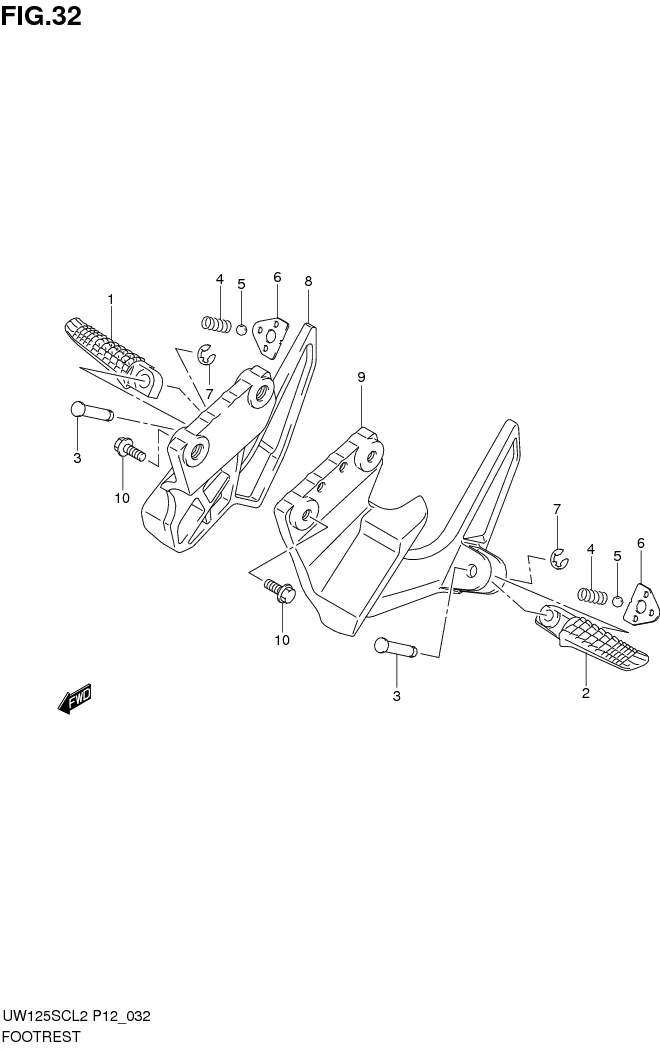

FIG.32 FOOTREST

FIG.32 FOOTREST
No No. Part Description Qty Price Per Pcs Remarks
1 43611-37H20-000
SUB: 43611B37H00N000		 BAR, PILLION FOOTREST RH 1 Rp311.500
2 43621-37H20-000
SUB: 43621B37H00N000		 BAR, PILLION FOOTREST LH 1 Rp311.500
3 09208-08020-000
SUB: 09208B08020N000		 PIN 2 Rp6.000
4 09440-05005-000
SUB: 09440B05005N000		 SPRING 2 Rp6.500
5 06111M07004-000
SUB: 06111-07004-000		 BALL 2 Rp3.000
6 43816-01H02-000
SUB: 43816B01H02N000		 PLATE, PILLION FOOTREST 2 Rp8.500
7 08332-1106A-000
SUB: 08332B1106AN000		 E RING 2 Rp8.500
8 43811B13H30N000 BRACKET, PILLION RH 1 -
9 43821B13H40N000 BRACKET, PILLION LH 1 -
10 01550-0820A-000
SUB: 01550B0820AN000		 BOLT 4 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
