HAYATE (UW125SC L2)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.29 HANDLE SWITCHFIG.30 FRAMEFIG.31 STANDFIG.32 FOOTRESTFIG.33 FUEL TANKFIG.34 FRAME COVERFIG.35 FRONT LEG SHIELDFIG.36 LOWER LEG SHIELDFIG.37 LEG SHIELDFIG.38 HELMET BOXFIG.39 FRONT FENDERFIG.40 HANDLE BARFIG.41 HANDLE COVERFIG.42 HANDLE LEVERFIG.43 REAR FENDERFIG.44 LABELFIG.45 SEATFIG.46 HANDLE, PILLION RIDERFIG.47 FRONT DAMPERFIG.48 STEERING STEMFIG.49 FRONT WHELLFIG.50 FRONT CALIPERFIG.51 FRONT MASTER CYLINDERFIG.52 SWINGING ARM REARFIG.53 REAR WHELL

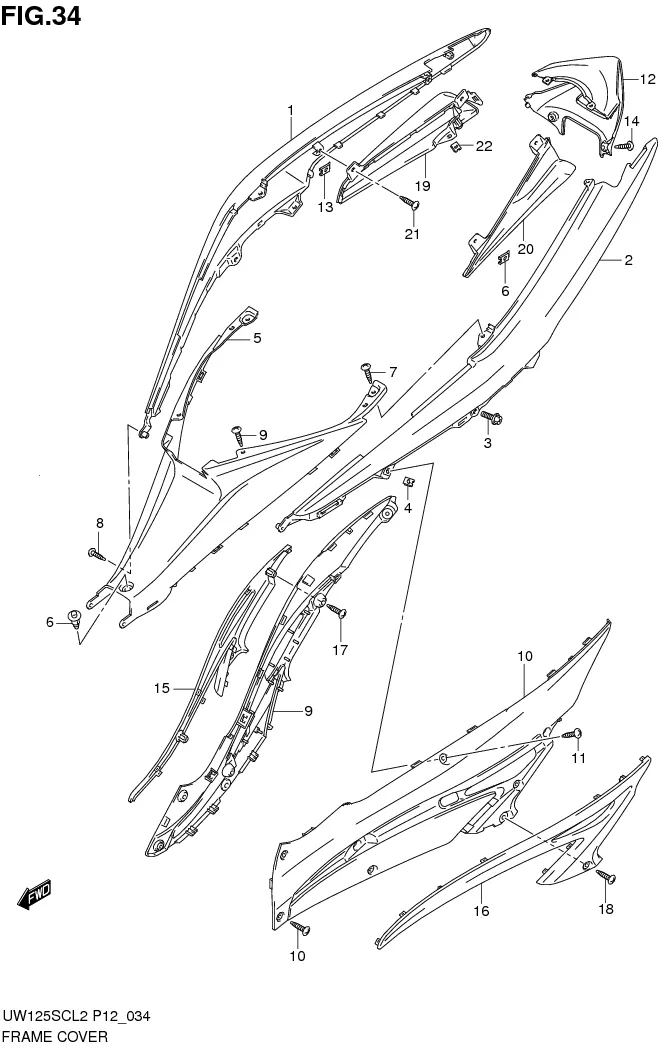

FIG.34 FRAME COVER

FIG.34 FRAME COVER
No No. Part Description Qty Price Per Pcs Remarks
1 47111B13HA0N000 COVER, FRAME RH 1 -
2 47211B13HA0N000 COVER, FRAME LH 1 -
3 09111-06107-000
SUB: 09111B06107N000		 BOLT 2 Rp4.000
4 09148-05045-000 NUT 8 Rp4.000
5 47311B13HA0N000 COVER, FRAME FRONT 1 -
6 09409-07312-000 CLIP 1 Rp7.500
7 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 4 Rp3.500
8 03541-0512A-000
SUB: 03541B0512AN000		 SCREW 2 Rp3.500
9 47121B13HA0N000 COVER, FRAME SIDE RH 1 -
10 47221B13HA0N000 COVER, FRAME SIDE LH 1 -
11 03541-0516A-000
SUB: 03541B0516BN000		 SCREW 10 Rp3.500
12 47321-13HA0-000
SUB: 47321B13HA0N000		 COVER, FRAME CENTER 1 Rp27.500
13 09148-05045-000 NUT 2 Rp4.000
14 03541-0516A-000
SUB: 03541B0516BN000		 SCREW 2 Rp3.500
15 47131B13HA0N000 COVER, SIDE LOWER RH 1 -
16 47231B13HA0N000 COVER, SIDE LOWER LH 1 -
17 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 4 Rp3.500
18 03541-0516A-000
SUB: 03541B0516BN000		 SCREW 2 Rp3.500
19 47141-13HA0-000
SUB: 47141B13HA0N000		 COVER, RR TURN SIGNAL RH 1 Rp14.500
20 47241-13HA0-000
SUB: 47241B13HA0N000		 COVER, RR TURN SIGNAL LH 1 Rp14.500
21 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 4 Rp3.500
22 09148-05045-000 NUT 2 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
