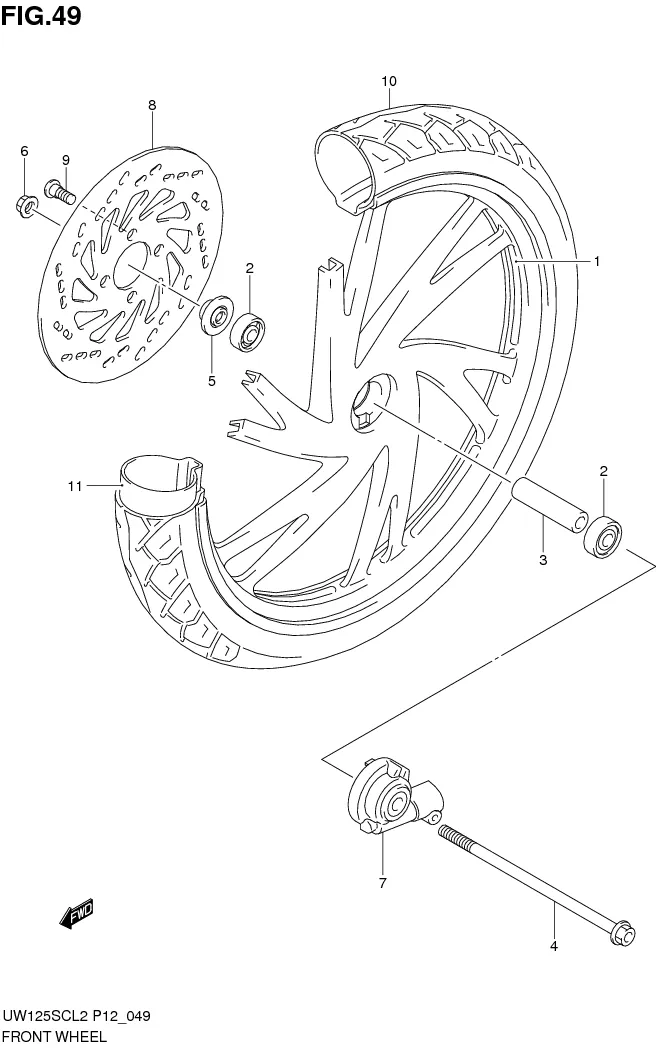

FIG.49 FRONT WHELL

FIG.49 FRONT WHELL
No No. Part Description Qty Price Per Pcs Remarks
1-1 DISCONTINUE
SUB: 54111B13H00N000		 WHEEL, FRONT (16X1.40) 1 -
1-2 54111B13H20N000 WHEEL, FRONT (16X1.40) 1 -
2 08123-63007-000
SUB: 08123B63007N000		 BEARING 2 Rp32.500
3 DISCONTINUE
SUB: 09180B10148N000		 SPACER (10.1X16X51) 1 -
4 54711-41H10-000
SUB: 54711B41H00N000		 AXLE, FRONT 1 Rp15.500
5 54750-46100-000
SUB: 54750B46100N000		 SPACER, FRONT AXLE RH 1 Rp12.500
6 08319-3110A-000
SUB: 08319B3110AN000		 NUT 1 Rp4.500
7 DISCONTINUE
SUB: 54600B13H20N000		 BOX ASSY, SPEEDOMETER GEAR 1 -
8 59211-09G60-000
SUB: 59211B09G60N000		 DISC, FRONT BRAKE 1 Rp188.000
9 59218-09G10-000
SUB: 59218B09G10N000		 BOLT 4 Rp7.000
10 55110-13H20-000
SUB: 55110B13H70N000		 TIRE, FRONT (70/90-16M/C 36P) 1 Rp243.000
11 DISCONTINUE
SUB: 55200B13H20N000		 TUBE ASSY, WHEEL INNER 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
