HAYATE (UW125SC L2)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.29 HANDLE SWITCHFIG.30 FRAMEFIG.31 STANDFIG.32 FOOTRESTFIG.33 FUEL TANKFIG.34 FRAME COVERFIG.35 FRONT LEG SHIELDFIG.36 LOWER LEG SHIELDFIG.37 LEG SHIELDFIG.38 HELMET BOXFIG.39 FRONT FENDERFIG.40 HANDLE BARFIG.41 HANDLE COVERFIG.42 HANDLE LEVERFIG.43 REAR FENDERFIG.44 LABELFIG.45 SEATFIG.46 HANDLE, PILLION RIDERFIG.47 FRONT DAMPERFIG.48 STEERING STEMFIG.49 FRONT WHELLFIG.50 FRONT CALIPERFIG.51 FRONT MASTER CYLINDERFIG.52 SWINGING ARM REARFIG.53 REAR WHELL

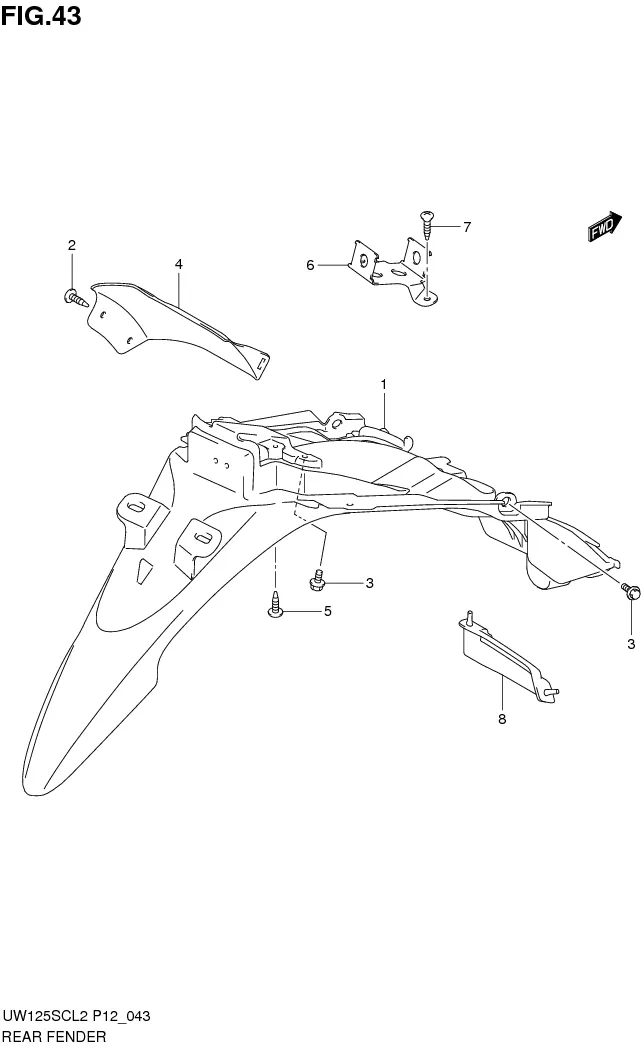

FIG.43 REAR FENDER

FIG.43 REAR FENDER
No No. Part Description Qty Price Per Pcs Remarks
1 63111-13HA0-000
SUB: 63111B13HA0N000		 FENDER, REAR UPPER 1 Rp93.000
2 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 2 Rp3.500
3 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 4 -
4 63112-13HA0-000
SUB: 63112B13HA0N000		 FENDER, REAR LOWER 1 Rp18.000
5 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 2 Rp3.500
6 DISCONTINUE
SUB: 63254B41H10N000		 BRACKET, CDI UNIT 1 -
7 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 2 Rp3.500
8 63411-13H10-000
SUB: 63411B13H00N000		 MUDGUARD, REAR FENDER UPPER 1 Rp33.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
