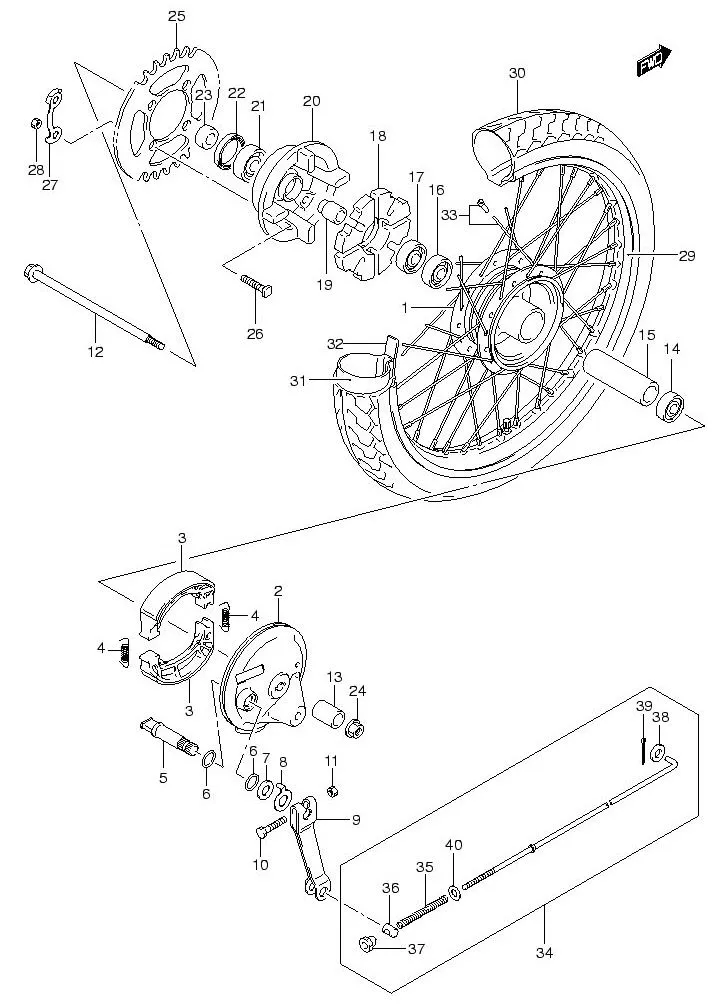

FIG.53 REAR WHEEL

FIG.53 REAR WHEEL
No No. Part Description Qty Price Per Pcs Remarks
1 64110-09G01-13L
SUB: 64110B09G01N13L		 HUB, REAR WHEEL 1 Rp206.000
2 64210-46005-27S
SUB: 64210-46005L27S		 PANEL, REAR BRAKE ANCHOR 1 Rp59.500
3 54400-23820-000
SUB: 54400B23820N000		 SHOE SET, BRAKE 2 Rp61.000
4 09443-07025-000 SPRING 2 Rp3.500
5 64441-21D00-000 SHAFT, BRAKE CAM 1 Rp34.500
6 09280-14003-000
SUB: 09280-14003L000		 O RING, RR BRAKE CAM 2 Rp3.000
7 09160-14054-000 WASHER 1 Rp12.500
8 DISCONTINUE
SUB: 54492-35400-000		 PLATE, BRAKE LINING 1 -
9 64451-20G00-000
SUB: 64451B20G00N000		 LEVER, BRAKE CAM 1 Rp9.500
10 DISCONTINUE
SUB: 09103-06045-000		 BOLT 1 -
11 08316-1006A-000
SUB: 08316-10063-000		 NUT 1 Rp2.000
12 64711-16H00-000
SUB: 64711-31C20L000		 AXLE, REAR 1 Rp24.500
13 DISCONTINUE
SUB: 64731-31C20L000		 SPACER, REAR AXLE RH 1 -
14 08140-63017-000
SUB: 08140B63017N000		 BEARING, RH 1 Rp32.000
15 09180-12143-000
SUB: 09180-12143L000		 SPACER, BEARING (12.5X19X48) 1 Rp9.000
16 08140-62017-000
SUB: 08140B62017N000		 BEARING, LH 1 Rp25.000
17 08113-62017-000
SUB: 08110B62017N000		 BEARING, LH INNER 1 Rp23.500
18 64651-30D60-000
SUB: 64651B30D60N000		 ABSORBER, REAR HUB SHOCK 1 Rp25.000
19 64733-43000-000 RETAINER, REAR SPROCKET DRUM 1 Rp15.500
20 64611-01001-000
SUB: 64611-01001L000		 DRUM, SPROCKET MOUNTING 1 Rp122.000
21 08113-62037L000 BEARING 1 Rp34.000
22 09285-25008-000
SUB: 09285-25003L000		 SEAL, OIL (25X40X6) 1 Rp8.000
23 DISCONTINUE
SUB: 64721B35500N000		 SPACER, RR SPROCKET DRUM 1 -
24 08319-31128-000 NUT 1 Rp7.500
25 DISCONTINUE
SUB: 64511B47G00N000		 SPROCKET, REAR (NT:37) 1 -
26 09105-08011-000
SUB: 09105-08011L000		 BOLT, REAR SPROCKET 4 Rp6.500
27 09169-08011-000 LOCK WASHER 2 Rp3.500
28 08310-0008B-000
SUB: 08310-00083-000		 NUT 4 Rp15.500
29 65311-16H40-000
SUB: 65311-46730L000		 WHEEL RIM (1.60X17) 1 Rp348.500
30 65110-20GG0-000
SUB: 65110B20G20N000		 TIRE, REAR, 80/90-17M/C 44P 1 Rp329.000
31 DISCONTINUE
SUB: 65200B20G81N000		 TUBE ASSY, INNER 1 -
32 DISCONTINUE
SUB: 55261-02B40-000		 PROTECTOR, INNER TUBE 1 -
33 65320-03021-000 SPOKE SET, REAR WHEEL 1 Rp43.500
34 43300-20G00-000
SUB: 43300B20G00N000		 ROD ASSY, REAR BRAKE 1 Rp34.500
35 09440-09004-000
SUB: 09440-09004L000		 .SPRING 1 Rp12.500
36 09209-11002-000 .PIN 1 Rp7.500
37 09150-06001-000
SUB: 09150-06014-000		 .NUT 1 Rp9.500
38 08322-0105A-000
SUB: 08322-01053-000		 .WASHER 1 Rp3.000
39 DISCONTINUE
SUB: 04111-20208L000		 .PIN, COTTER 1 -
40 DISCONTINUE
SUB: 08322B01063N000		 .WASHER, REAR 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
