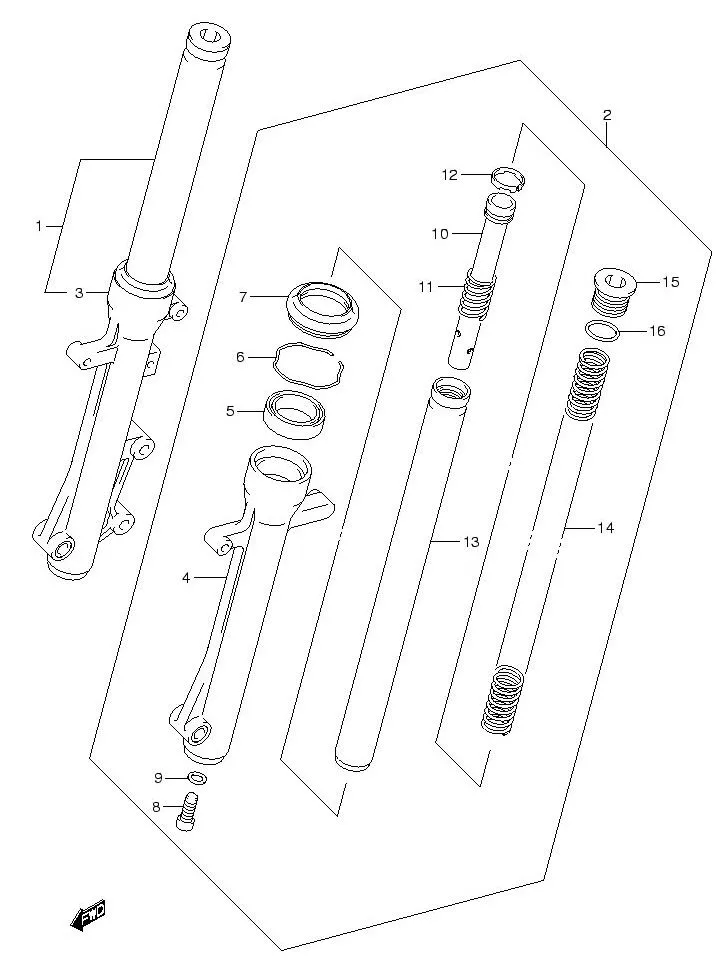

FIG.46 FRONT FORK DAMPER

FIG.46 FRONT FORK DAMPER
No No. Part Description Qty Price Per Pcs Remarks
DISCONTINUE
SUB: 51100B47G20N000		 FORK ASSY FR (BLACK) 0 -
DISCONTINUE
SUB: 51100B47G10N000		 FORK ASSY FR (SILVER) 0 -
1 DISCONTINUE
SUB: 51103B47G10N000		 DAMPER ASSY, FRONT FORK RH 1 -
2 DISCONTINUE
SUB: 51104B47G10N000		 DAMPER ASSY, FRONT FORK LH 1 -
3 DISCONTINUE
SUB: 51130B47G00N000		 .TUBE, OUTER RH 1 -
4 DISCONTINUE
SUB: 51140B47G00N000		 .TUBE, OUTER LH 1 -
5 51153-23F00-000
SUB: 51153-23F00L000		 .SEAL, OIL 2 Rp27.000
6 51156-43010-000
SUB: 51156B43010N000		 .RING, SNAP 2 Rp6.000
7 51173-23F00-000
SUB: 51173B23F00N000		 .SEAL, DUST 2 Rp41.500
8 51147-16510-000
SUB: 51147-16510L000		 .BOLT 2 Rp10.500
9 51148-41310-000
SUB: 51148B41310N000		 .PACKING 2 Rp8.500
10 51146-31CB0-000
SUB: 51146-31CB0L000		 .CYLINDER 2 Rp85.000
11 51177-35400L000 .SPRING 2 Rp9.500
12 51196-39140-000 .RING, PISTON 2 Rp7.500
13 51110-20G00-000
SUB: 51110B20G00N000		 .TUBE, INNER 2 Rp288.500
14 51171-20G00-000
SUB: 51171B20G00N000		 .SPRING, FRONT 2 Rp39.000
15 DISCONTINUE
SUB: 51351B09G10N000		 .CAP 2 -
16 51181-37B00-000
SUB: 09280B17002N000		 .O RING 2 Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
