ARASHI (FH125M/D)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.30 FRAMEFIG.31 STANDFIG.32 FOOTRESTFIG.33 FUEL TANKFIG.34 FRAME COVERFIG.35 LEG SHIELDFIG.36 CENTER LEG SHIELDFIG.37 LOWER LEG SHIELDFIG.38 FRONT FENDERFIG.39 HANDLE BARFIG.40 HANDLE COVERFIG.41 HANDLE LEVERFIG.42 REAR FENDERFIG.43 HELMET BOXFIG.44 LABELFIG.45 SEATFIG.46 FRONT FORK DAMPERFIG.47 FRONT FORK BRACKETFIG.48 FRONT WHEELFIG.49 FRONT CALIPERFIG.50 FRONT MASTER CYLINDERFIG.51 REAR SWINGING ARMFIG.52 CHAIN CASEFIG.53 REAR WHEEL

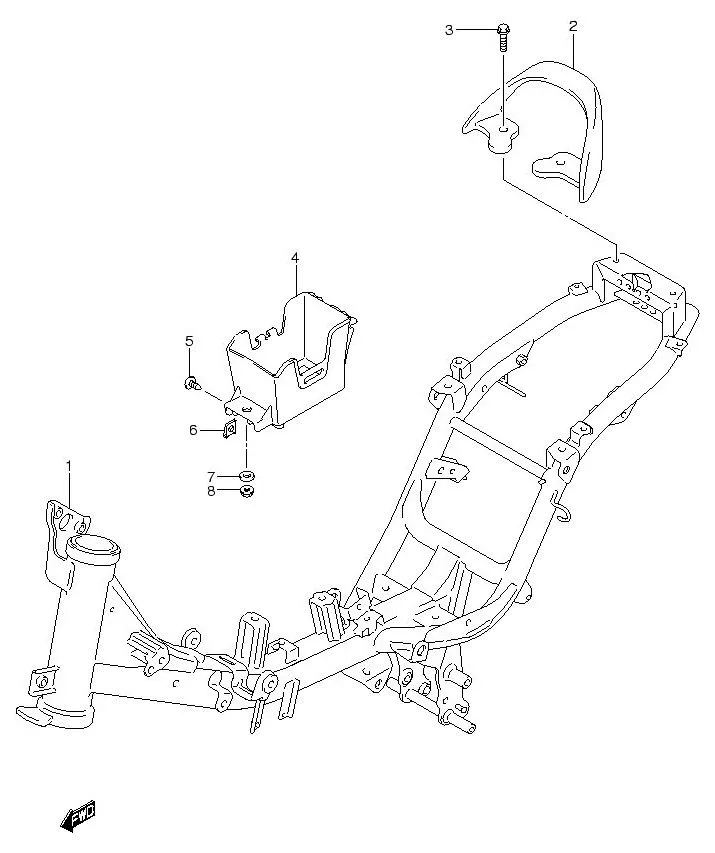

FIG.30 FRAME

FIG.30 FRAME
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 41100B47G10N000		 FRAME 1 -
2 DISCONTINUE
SUB: 46211B47G00N000		 HANDLE, PILLION RIDER 1 -
3 01550-0830B-000
SUB: 01550B08303N000		 BOLT 4 Rp3.000
4 DISCONTINUE
SUB: 41541B20G10N000		 HOLDER, BATTERY 1 -
5 03541-0512A-000
SUB: 03541-05123L000		 SCREW 1 Rp3.500
6 09148-05038-000
SUB: 09148B05038N000		 NUT 1 Rp4.000
7 09160-06109-000 WASHER 1 Rp13.000
8 DISCONTINUE
SUB: 08319B21063N000		 NUT 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
