ARASHI (FH125M/D)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.30 FRAMEFIG.31 STANDFIG.32 FOOTRESTFIG.33 FUEL TANKFIG.34 FRAME COVERFIG.35 LEG SHIELDFIG.36 CENTER LEG SHIELDFIG.37 LOWER LEG SHIELDFIG.38 FRONT FENDERFIG.39 HANDLE BARFIG.40 HANDLE COVERFIG.41 HANDLE LEVERFIG.42 REAR FENDERFIG.43 HELMET BOXFIG.44 LABELFIG.45 SEATFIG.46 FRONT FORK DAMPERFIG.47 FRONT FORK BRACKETFIG.48 FRONT WHEELFIG.49 FRONT CALIPERFIG.50 FRONT MASTER CYLINDERFIG.51 REAR SWINGING ARMFIG.52 CHAIN CASEFIG.53 REAR WHEEL

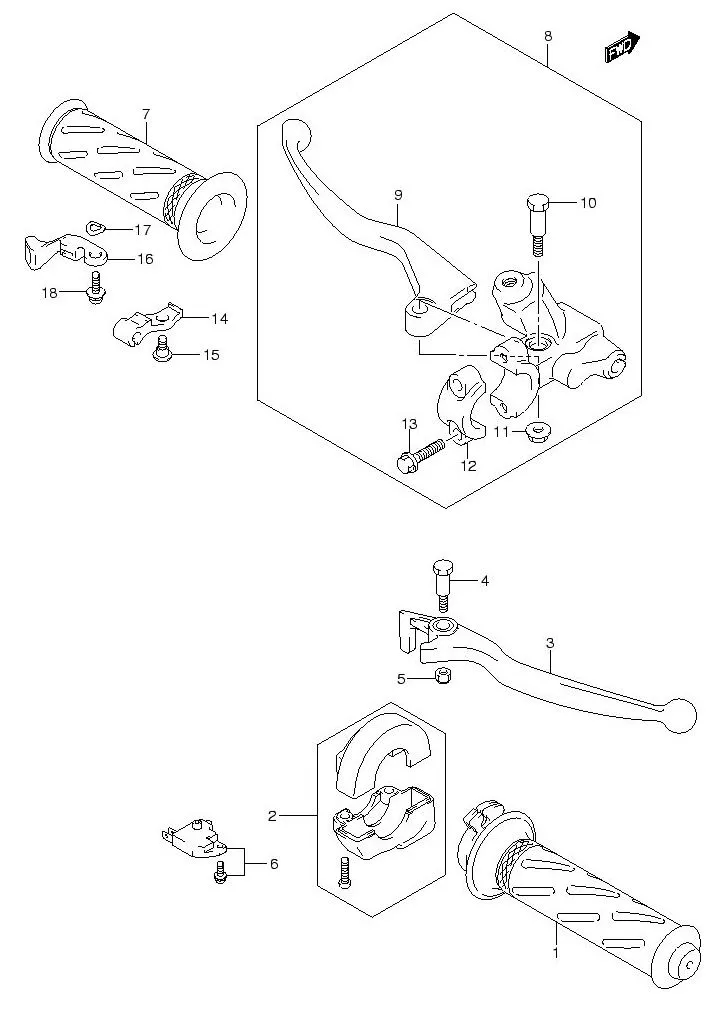

FIG.41 HANDLE LEVER

FIG.41 HANDLE LEVER
No No. Part Description Qty Price Per Pcs Remarks
1 57110-23F10-000
SUB: 57110-23F10L000		 GRIP, THROTTLE 1 Rp32.500
2 57100-09G11-000
SUB: 57100B09G10N000		 CASE ASSY, THROTTLE 1 Rp19.500
3 57421-21D10-100
SUB: 57421-21D10-000		 LEVER, BRAKE 1 Rp35.000
4 09111-06076-000 BOLT, PIVOT 1 Rp7.000
5 DISCONTINUE
SUB: 08319B21063N000		 NUT 1 -
6 57460-17C00-000
SUB: 57460-17C01-000		 SWITCH ASSY, STOP 1 Rp72.000
7 57211-22D01-000
SUB: 57211-22D01L000		 GRIP, LH 1 Rp38.500
8 57500-09G00-000
SUB: 57500B09G00N000		 LEVER ASSY, CLUTCH 1 Rp85.500 FH125M
9 57621-23FB0-000
SUB: 57620B23F20N000		 .LEVER 1 Rp32.500 FH125M
10 57431-23F00-000 .BOLT, PIVOT 1 Rp8.500 FH125M
11 57513-23F00-000 .NUT 1 Rp4.000 FH125M
12 DISCONTINUE
SUB: 59671B09G00N000		 .HOLDER 1 - FH125M
13 57512-21D10-000 .BOLT, HOLDER 2 Rp3.500 FH125M
14 DISCONTINUE
SUB: 58711B09G00N000		 HOLDER, STARTER CABLE 1 -
15 09139-05057-000 SCREW 1 Rp6.500
16 58721-23F01-000
SUB: 58721B23F01N000		 LEVER, STARTER 1 Rp10.500
17 DISCONTINUE
SUB: 09164-07001-000		 WASHER 1 -
18 02112-7516A-000
SUB: 02112-75163-000		 SCREW 1 Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
