ARASHI (FH125M/D)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.30 FRAMEFIG.31 STANDFIG.32 FOOTRESTFIG.33 FUEL TANKFIG.34 FRAME COVERFIG.35 LEG SHIELDFIG.36 CENTER LEG SHIELDFIG.37 LOWER LEG SHIELDFIG.38 FRONT FENDERFIG.39 HANDLE BARFIG.40 HANDLE COVERFIG.41 HANDLE LEVERFIG.42 REAR FENDERFIG.43 HELMET BOXFIG.44 LABELFIG.45 SEATFIG.46 FRONT FORK DAMPERFIG.47 FRONT FORK BRACKETFIG.48 FRONT WHEELFIG.49 FRONT CALIPERFIG.50 FRONT MASTER CYLINDERFIG.51 REAR SWINGING ARMFIG.52 CHAIN CASEFIG.53 REAR WHEEL

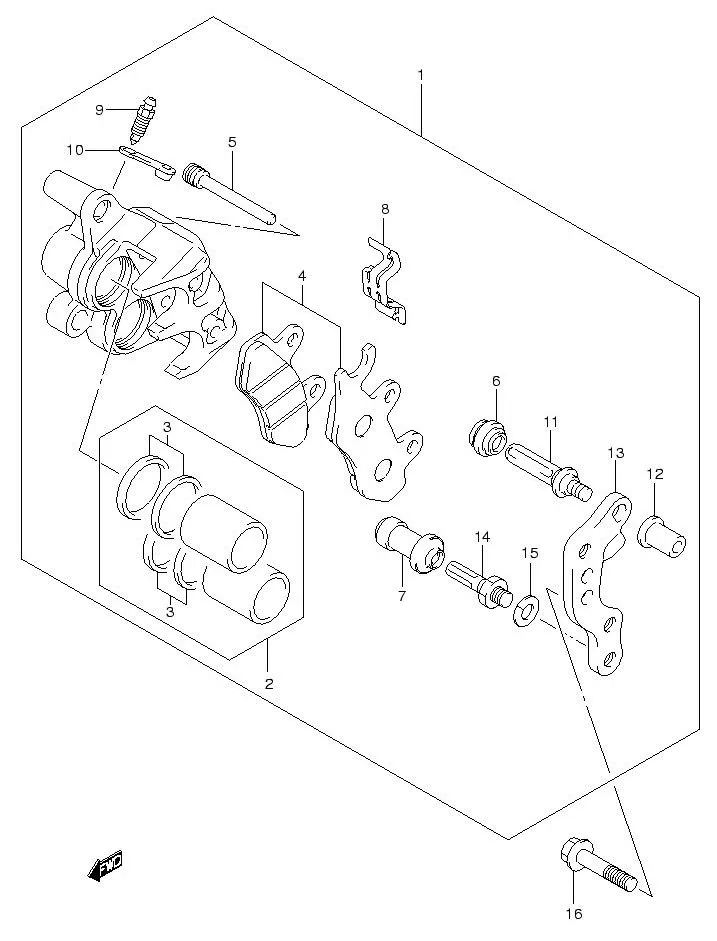

FIG.49 FRONT CALIPER

FIG.49 FRONT CALIPER
No No. Part Description Qty Price Per Pcs Remarks
1 59100-47E00-000
SUB: 59100B47E00N000		 CALIPER ASSY, FRONT 1 Rp1.107.000
2 69100-31810-000
SUB: 69100-31810L000		 .PISTON SET 1 Rp166.500
3 59300-13820-000
SUB: 59300-13820L000		 ..SEAL SET, PISTON 1 Rp37.000
4 59100-21850-000
SUB: 59100-21850L000		 .PAD SET 1 Rp66.000
5 59345-14600-000
SUB: 59345-14600L000		 .PIN 2 Rp35.000
6 59303-14500-000
SUB: 59303B14500N000		 .BOOT 1 Rp12.500
7 59386-13A00-000
SUB: 59386B13A00N000		 .BOOT 1 Rp14.000
8 69115-31D10-000
SUB: 69115-31D10L000		 .SPRING 1 Rp26.500
9 59121-01A00-000
SUB: 59121B01A00N000		 .BLEEDER 1 Rp14.500
10 59122-01A00-000
SUB: 59122B01A00N000		 .CAP, BLEEDER 1 Rp3.000
11 59387-00B20-000
SUB: 59387B00B20N000		 .PIN 1 Rp25.500
12 59388-00B20-000
SUB: 59388B00B20N000		 .NUT 1 Rp28.500
13 59151-47E00-000 .BRACKET 1 Rp541.000
14 59382-13A00-000
SUB: 59382B13A00N000		 .BOLT 1 Rp13.500
15 59314-13A00-000
SUB: 59314B13A00N000		 .WASHER 1 Rp3.000
16 09103-08107-000 BOLT (8X33) 2 Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
