ARASHI (FH125M/D)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.30 FRAMEFIG.31 STANDFIG.32 FOOTRESTFIG.33 FUEL TANKFIG.34 FRAME COVERFIG.35 LEG SHIELDFIG.36 CENTER LEG SHIELDFIG.37 LOWER LEG SHIELDFIG.38 FRONT FENDERFIG.39 HANDLE BARFIG.40 HANDLE COVERFIG.41 HANDLE LEVERFIG.42 REAR FENDERFIG.43 HELMET BOXFIG.44 LABELFIG.45 SEATFIG.46 FRONT FORK DAMPERFIG.47 FRONT FORK BRACKETFIG.48 FRONT WHEELFIG.49 FRONT CALIPERFIG.50 FRONT MASTER CYLINDERFIG.51 REAR SWINGING ARMFIG.52 CHAIN CASEFIG.53 REAR WHEEL

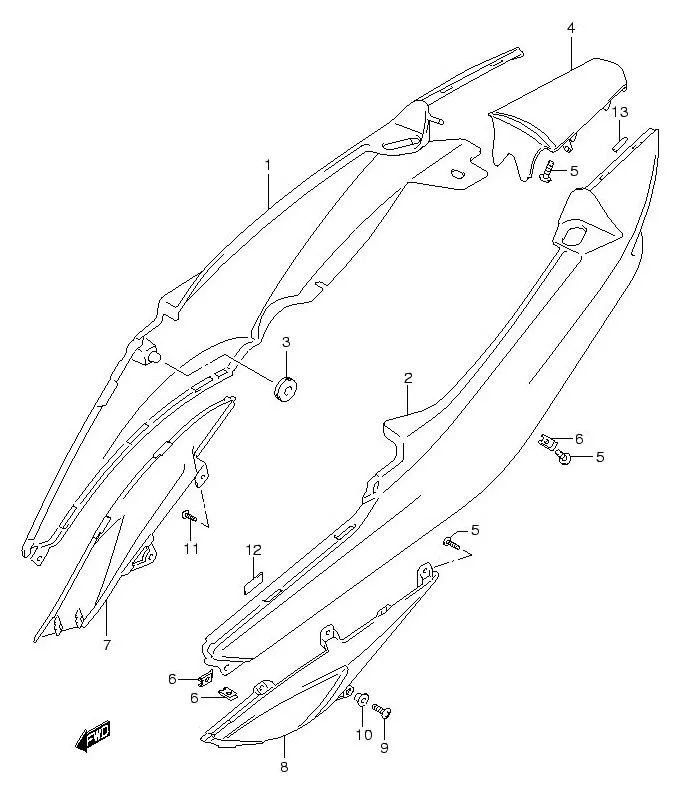

FIG.34 FRAME COVER

FIG.34 FRAME COVER
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 47111B47G00N190		 COVER FRAME RH PEARL WHITE 1 -
2 DISCONTINUE
SUB: 47211B47G00N190		 COVER FRAME LH PEARL WHITE 1 -
3 09320-08018L000 CUSHION 4 -
4 DISCONTINUE
SUB: 47311B47G00N190		 COVER FRAME CENTER PEARL WHITE 1 -
5 03541-0516A-000
SUB: 03541-05163-000		 SCREW 6 Rp3.500
6 09148-05038-000 NUT 5 Rp4.000
7 DISCONTINUE
SUB: 47112B47G00N735		 COVER FRAME LOWER RH SOL SILVER 1 -
8 DISCONTINUE
SUB: 47212B47G00N735		 COVER FRAME LOWER LH SOL SILVER 1 -
9 02142-06127-000 SCREW 2 Rp10.500
10 09169-06032-000
SUB: 09169-06033-000		 WASHER 2 Rp7.500
11 09136-05052-000
SUB: 09136B05052N000		 SCREW, REAR 2 Rp6.500
12 DISCONTINUE
SUB: 48135B47G00N000		 CUSHION 6 -
13 48136-20G00-000
SUB: 48136B20G00N000		 CUSHION 8 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
