ARASHI (FH125M/D)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.30 FRAMEFIG.31 STANDFIG.32 FOOTRESTFIG.33 FUEL TANKFIG.34 FRAME COVERFIG.35 LEG SHIELDFIG.36 CENTER LEG SHIELDFIG.37 LOWER LEG SHIELDFIG.38 FRONT FENDERFIG.39 HANDLE BARFIG.40 HANDLE COVERFIG.41 HANDLE LEVERFIG.42 REAR FENDERFIG.43 HELMET BOXFIG.44 LABELFIG.45 SEATFIG.46 FRONT FORK DAMPERFIG.47 FRONT FORK BRACKETFIG.48 FRONT WHEELFIG.49 FRONT CALIPERFIG.50 FRONT MASTER CYLINDERFIG.51 REAR SWINGING ARMFIG.52 CHAIN CASEFIG.53 REAR WHEEL

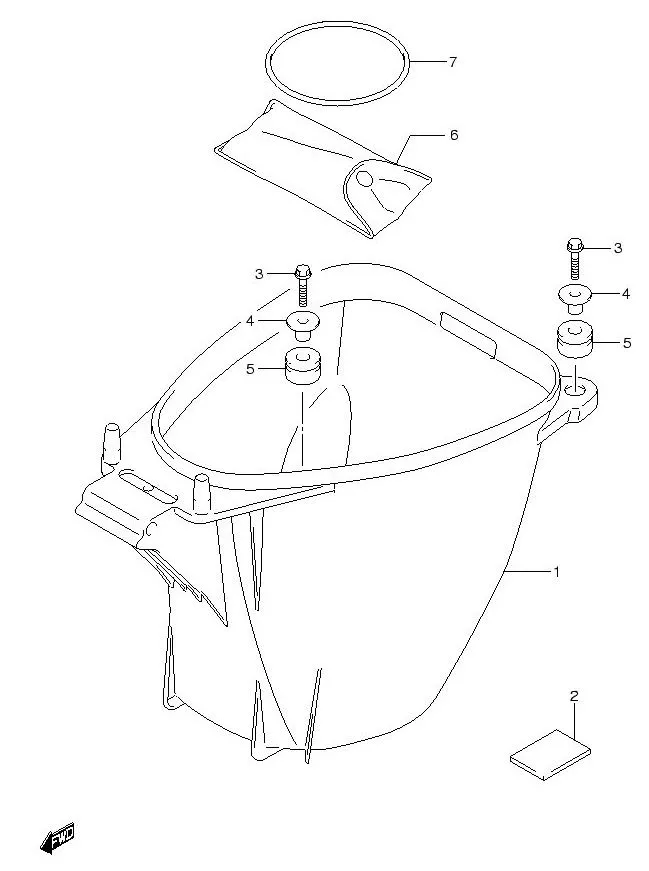

FIG.43 HELMET BOX

FIG.43 HELMET BOX
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 92211B47G00N000		 BOX, LUGGAGE 1 -
2 DISCONTINUE
SUB: 47165B09G00N000		 CUSHION 2 -
3 01547-0630A-000
SUB: 01547B06303N000		 BOLT 4 Rp6.500
4 92215-20G00-000
SUB: 92215B20G00N000		 SPACER 4 Rp8.000
5 DISCONTINUE
SUB: 92216B20G00N000		 CUSHION 4 -
6 09800-21004-000
SUB: 09800-21004L000		 TOOL ASSY 1 Rp36.000
7 DISCONTINUE
SUB: 47435B09G00N000		 BAND, TOOL 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
