ARASHI (FH125M/D)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.30 FRAMEFIG.31 STANDFIG.32 FOOTRESTFIG.33 FUEL TANKFIG.34 FRAME COVERFIG.35 LEG SHIELDFIG.36 CENTER LEG SHIELDFIG.37 LOWER LEG SHIELDFIG.38 FRONT FENDERFIG.39 HANDLE BARFIG.40 HANDLE COVERFIG.41 HANDLE LEVERFIG.42 REAR FENDERFIG.43 HELMET BOXFIG.44 LABELFIG.45 SEATFIG.46 FRONT FORK DAMPERFIG.47 FRONT FORK BRACKETFIG.48 FRONT WHEELFIG.49 FRONT CALIPERFIG.50 FRONT MASTER CYLINDERFIG.51 REAR SWINGING ARMFIG.52 CHAIN CASEFIG.53 REAR WHEEL

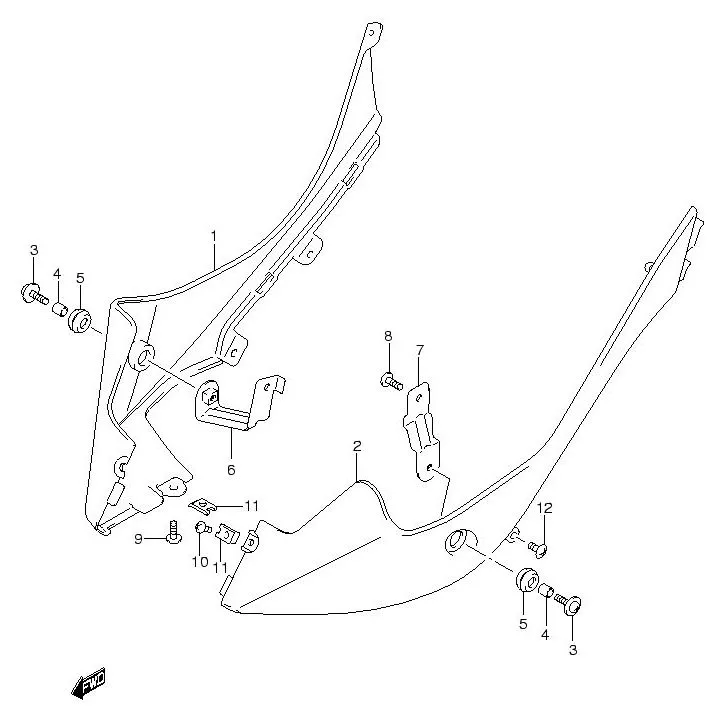

FIG.37 LOWER LEG SHIELD

FIG.37 LOWER LEG SHIELD
No No. Part Description Qty Price Per Pcs Remarks
1-1 DISCONTINUE
SUB: 48137B47G00N709		 LEG SHIELD LOWER RH DARK GREY 1 -
1-2 DISCONTINUE
SUB: 48137B47G00N735		 LEG SHIELD LOWER RH SOL SILVER 1 -
1-3 DISCONTINUE
SUB: 48137B47G00NX0H		 LEG SHIELD LOWER RH TITAN BLACK 1 -
2-1 DISCONTINUE
SUB: 48138B47G00N709		 LEG SHIELD LOWER RH DARK GREY 1 -
2-2 DISCONTINUE
SUB: 48138B47G00N735		 LEG SHIELD LOWER RH SOL SILVER 1 -
2-3 DISCONTINUE
SUB: 48138B47G00NX0H		 LEG SHIELD LOWER RH TITAN BLACK 1 -
3 09136-06004-000
SUB: 09136-06009-000		 SCREW 2 Rp14.500
4 48211-09G00-000 SPACER 2 Rp3.000
5 09320-09026-000
SUB: 09320B09026N000		 CUSHION 2 Rp12.500
6 DISCONTINUE
SUB: 48140B20G10N000		 BRACKET, RH 1 -
7 DISCONTINUE
SUB: 48150B20G10N000		 BRACKET, LH 1 -
8 02142-0616B-000
SUB: 02142B06163N000		 SCREW 2 Rp5.500
9 09136-05052-000
SUB: 09136B05052N000		 SCREW, LOWER 2 Rp6.500
10 53274-09G00-000
SUB: 53274B09G10N000		 SCREW, CENTER 1 Rp7.000
11 09148-05038-000
SUB: 09148B05038N000		 NUT 3 Rp4.000
12 03541-0512A-000
SUB: 03541-05123L000		 SCREW, SIDE 6 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
