ARASHI (FH125M/D)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.30 FRAMEFIG.31 STANDFIG.32 FOOTRESTFIG.33 FUEL TANKFIG.34 FRAME COVERFIG.35 LEG SHIELDFIG.36 CENTER LEG SHIELDFIG.37 LOWER LEG SHIELDFIG.38 FRONT FENDERFIG.39 HANDLE BARFIG.40 HANDLE COVERFIG.41 HANDLE LEVERFIG.42 REAR FENDERFIG.43 HELMET BOXFIG.44 LABELFIG.45 SEATFIG.46 FRONT FORK DAMPERFIG.47 FRONT FORK BRACKETFIG.48 FRONT WHEELFIG.49 FRONT CALIPERFIG.50 FRONT MASTER CYLINDERFIG.51 REAR SWINGING ARMFIG.52 CHAIN CASEFIG.53 REAR WHEEL

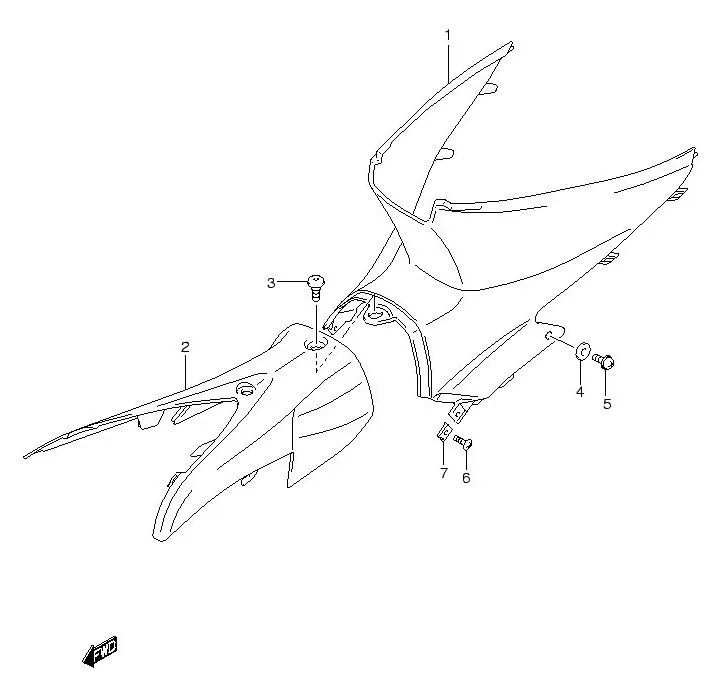

FIG.36 CENTER LEG SHIELD

FIG.36 CENTER LEG SHIELD
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 47511B47G00N019		 COVER, FRONT 1 -
2 DISCONTINUE
SUB: 48132B47G00N019		 LEG SHIELD CENTER REAR BLACK 1 -
3 53274-09G00-000
SUB: 53274B09G10N000		 SCREW, UPPER CENTER 2 Rp7.000
4 09169-06071-000 WASHER 2 Rp7.500
5 09320-09026-000 SCREW, REAR 2 Rp12.500
6 03541-0516A-000
SUB: 03541B05163N000		 SCREW, CENTER REAR 2 Rp3.500
7 09148-05038-000
SUB: 09148B05038N000		 NUT 2 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
