ARASHI (FH125M/D)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.30 FRAMEFIG.31 STANDFIG.32 FOOTRESTFIG.33 FUEL TANKFIG.34 FRAME COVERFIG.35 LEG SHIELDFIG.36 CENTER LEG SHIELDFIG.37 LOWER LEG SHIELDFIG.38 FRONT FENDERFIG.39 HANDLE BARFIG.40 HANDLE COVERFIG.41 HANDLE LEVERFIG.42 REAR FENDERFIG.43 HELMET BOXFIG.44 LABELFIG.45 SEATFIG.46 FRONT FORK DAMPERFIG.47 FRONT FORK BRACKETFIG.48 FRONT WHEELFIG.49 FRONT CALIPERFIG.50 FRONT MASTER CYLINDERFIG.51 REAR SWINGING ARMFIG.52 CHAIN CASEFIG.53 REAR WHEEL

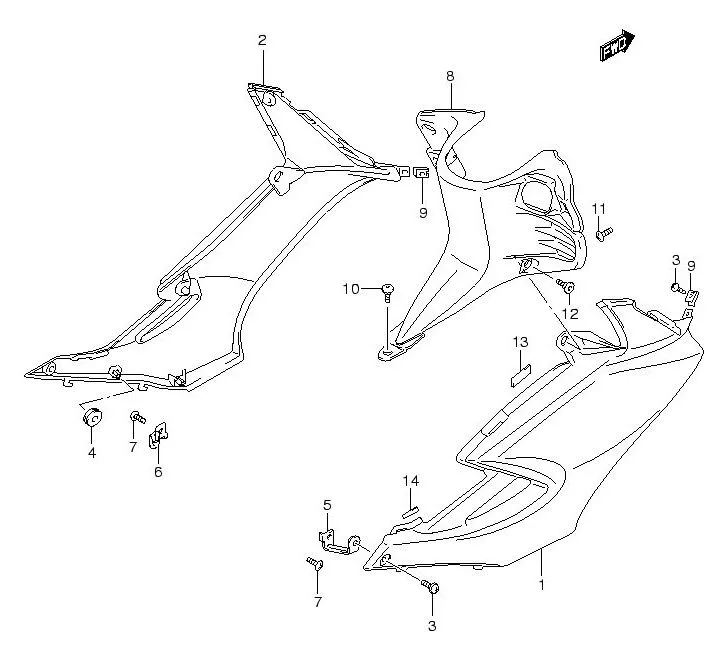

FIG.35 LEG SHIELD

FIG.35 LEG SHIELD
No No. Part Description Qty Price Per Pcs Remarks
1-2 DISCONTINUE
SUB: 48111B47G00N079		 LEG SHIELD RH CEL RED 1 -
1-3 DISCONTINUE
SUB: 48111B47G00N334		 LEG SHIELD RH BLUE 1 -
1-4 DISCONTINUE
SUB: 48111B47G00NX0C		 LEG SHIELD RH VIOLET 1 -
1-1 DISCONTINUE
SUB: 48111B47G00N019		 LEG SHIELD RH BLACK 1 -
2-1 DISCONTINUE
SUB: 48121B47G00N019		 LEG SHIELD LH BLACK 1 -
2-2 DISCONTINUE
SUB: 48121B47G00N079		 LEG SHIELD LH CEL RED 1 -
2-3 DISCONTINUE
SUB: 48121B47G00N334		 LEG SHIELD LH BLUE 1 -
2-4 DISCONTINUE
SUB: 48121B47G00NX0C		 LEG SHIELD LH VIOLET 1 -
3 09136-05052-000
SUB: 09136B05052N000		 SCREW, SIDE 4 Rp6.500
4 09320-08018L000 CUSHION 2 -
5 DISCONTINUE
SUB: 48140B20G10N000		 BRACE, LEG RH 1 -
6 DISCONTINUE
SUB: 48150B20G10N000		 BRACE, LEG LH 1 -
7 02142-0616B-000
SUB: 02142B06163N000		 SCREW, BRACE 2 Rp5.500
8 DISCONTINUE
SUB: 48131B47G00N709		 LEG SHIELD CENTER FRONT DARK GREY 1 -
9 09148-05038-000
SUB: 09148B05038N000		 NUT 3 Rp4.000
10 09136-05052-000
SUB: 09136B05052N000		 SCREW 4 Rp6.500
11 03241-1516B-000
SUB: 03241-15163-000		 SCREW, UPPER 2 Rp3.000
12 53274-09G00-000
SUB: 53274B09G10N000		 SCREW, SIDE 2 Rp7.000
13 DISCONTINUE
SUB: 48135B47G00N000		 CUSHION 6 -
14 48136-20G00-000
SUB: 48136B20G00N000		 CUSHION 14 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
