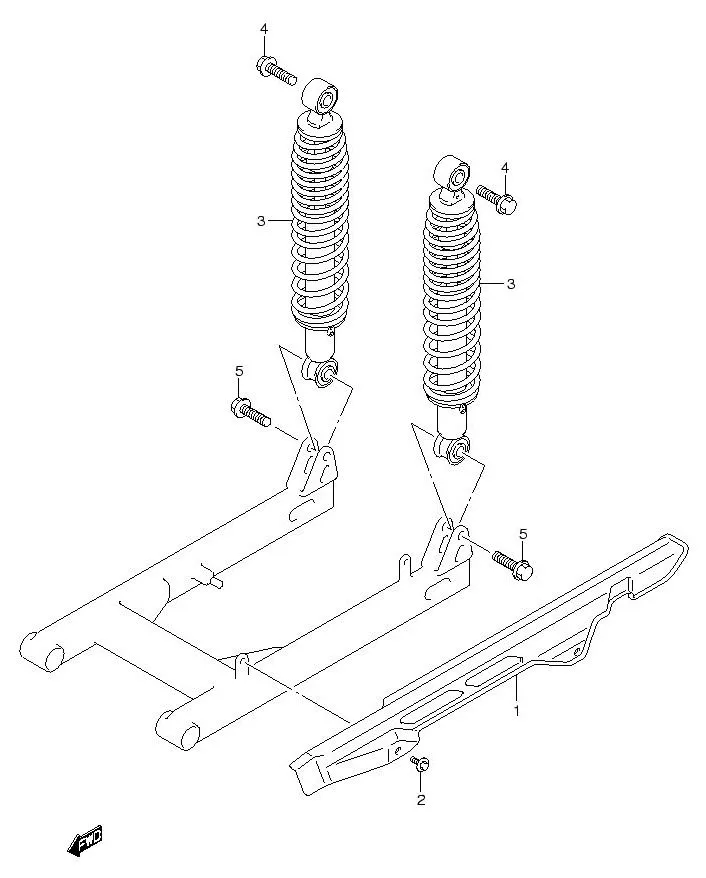

FIG.52 CHAIN CASE

FIG.52 CHAIN CASE
No No. Part Description Qty Price Per Pcs Remarks
1 61311-20G00-000
SUB: 61311B20G00N000		 CASE, CHAIN 1 Rp40.000
2 DISCONTINUE
SUB: 09113B06002N000		 BOLT, CHAIN CASE 2 -
3 62100-20GB0-000
SUB: 62100B20GB0N000		 ABSORBER ASSY, REAR SHOCK 2 Rp373.000
4 01550-1035B-000
SUB: 01550B10353N000		 BOLT, UPPER 2 Rp5.000
5 09103-10229-000
SUB: 09103B10229N000		 BOLT, LOWER 2 Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
