ARASHI (FH125M/D)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.30 FRAMEFIG.31 STANDFIG.32 FOOTRESTFIG.33 FUEL TANKFIG.34 FRAME COVERFIG.35 LEG SHIELDFIG.36 CENTER LEG SHIELDFIG.37 LOWER LEG SHIELDFIG.38 FRONT FENDERFIG.39 HANDLE BARFIG.40 HANDLE COVERFIG.41 HANDLE LEVERFIG.42 REAR FENDERFIG.43 HELMET BOXFIG.44 LABELFIG.45 SEATFIG.46 FRONT FORK DAMPERFIG.47 FRONT FORK BRACKETFIG.48 FRONT WHEELFIG.49 FRONT CALIPERFIG.50 FRONT MASTER CYLINDERFIG.51 REAR SWINGING ARMFIG.52 CHAIN CASEFIG.53 REAR WHEEL

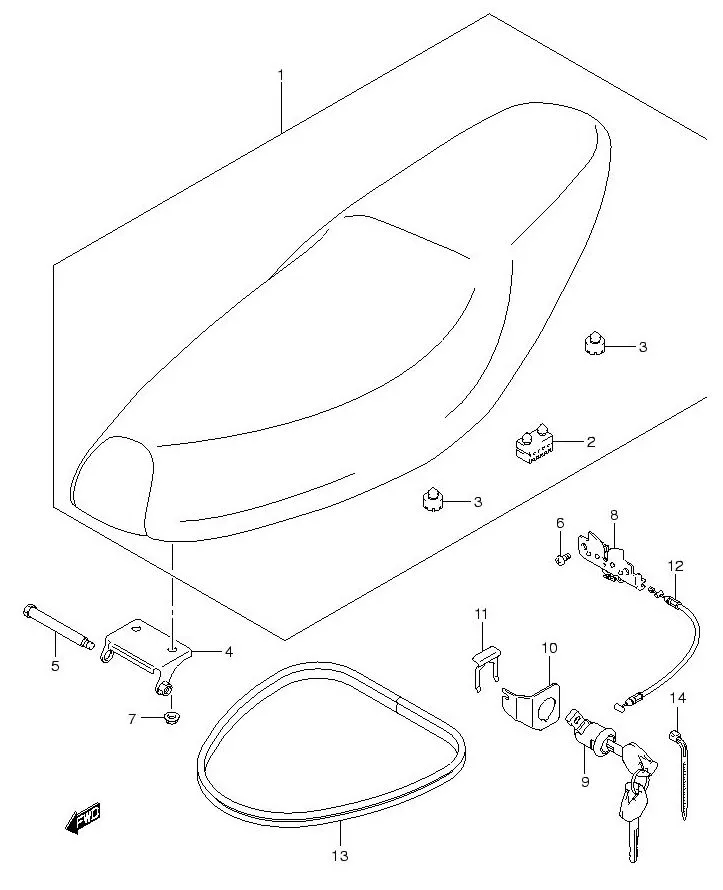

FIG.45 SEAT

FIG.45 SEAT
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 45100B47G00N000		 SEAT ASSY 1 -
2 45149-09G00-000 .CUSHION, FRONT 2 Rp9.500
3 DISCONTINUE
SUB: 45148B20G00N000		 .CUSHION, REAR 4 -
4 DISCONTINUE
SUB: 45250B20G10N000		 BRACKET, SEAT HINGE 1 -
5 09111-06001-000 BOLT, SEAT HINGE 1 Rp19.000
6 02112-0610B-000
SUB: 02112-06103-000		 SCREW 2 Rp5.500
7 08310-0006B-000
SUB: 08310-00063-000		 NUT 2 Rp4.500
8 45700-47G00-000
SUB: 45700-20G01-000		 BRACKET, STRIKER SUPPORT 1 Rp31.500
9 95700-14F60-000
SUB: 95700B14F00N000		 LOCK SET, SEAT 1 Rp75.500
10 45288-20G00-000
SUB: 45288B20G00N000		 GUIDE, SEAT LOCK CABLE 1 Rp4.500
11 45289-09G00-000
SUB: 45289B09G00N000		 PLATE, SEAT LOCK 1 Rp3.500
12 DISCONTINUE
SUB: 45280B47G00N000		 CABLE, SEAT LOCK 1 -
13 DISCONTINUE
SUB: 45211B47G00N000		 MOLDING, SEAT 1 -
14 09407-18402-000 CLAMP 2 Rp8.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
