ARASHI (FH125M/D)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.30 FRAMEFIG.31 STANDFIG.32 FOOTRESTFIG.33 FUEL TANKFIG.34 FRAME COVERFIG.35 LEG SHIELDFIG.36 CENTER LEG SHIELDFIG.37 LOWER LEG SHIELDFIG.38 FRONT FENDERFIG.39 HANDLE BARFIG.40 HANDLE COVERFIG.41 HANDLE LEVERFIG.42 REAR FENDERFIG.43 HELMET BOXFIG.44 LABELFIG.45 SEATFIG.46 FRONT FORK DAMPERFIG.47 FRONT FORK BRACKETFIG.48 FRONT WHEELFIG.49 FRONT CALIPERFIG.50 FRONT MASTER CYLINDERFIG.51 REAR SWINGING ARMFIG.52 CHAIN CASEFIG.53 REAR WHEEL

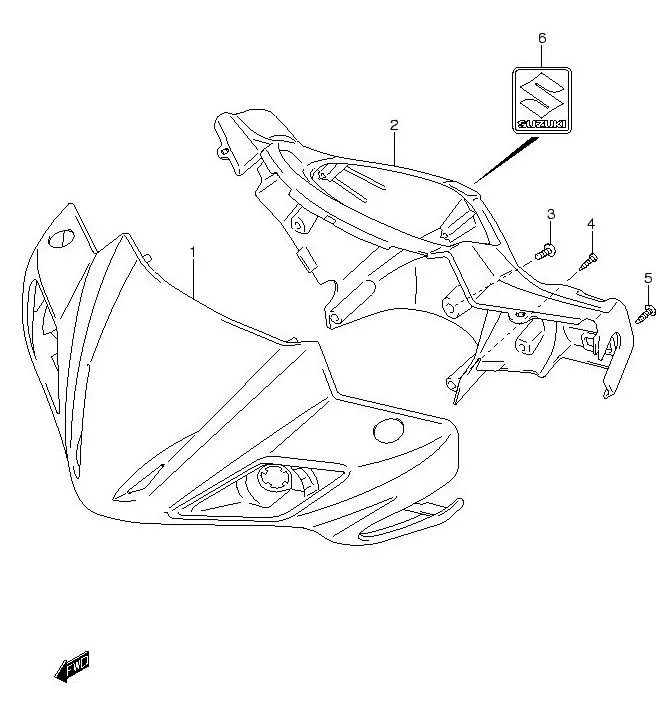

FIG.40 HANDLE COVER

FIG.40 HANDLE COVER
No No. Part Description Qty Price Per Pcs Remarks
DISCONTINUE
SUB: 56300B47G00N079		 COVER HDL FR W/ LENS RED 0 - FH125D
DISCONTINUE
SUB: 56300B47G00N334		 COVER HDL FR W/ LENS BLUE 0 - FH125D
DISCONTINUE
SUB: 56300B47G00NX0C		 COVER HDL FR W/ LENS VIOLET 0 - FH125D
DISCONTINUE
SUB: 56300B47G10N019		 COVER HDL FR W/ LENS BLACK 0 - FH125M
DISCONTINUE
SUB: 56300B47G10N079		 COVER HDL FR W/ LENS RED 0 - FH125M
DISCONTINUE
SUB: 56300B47G10N334		 COVER HDL FR W/ LENS BLUE 0 - FH125M
DISCONTINUE
SUB: 56300B47G10NX0C		 COVER HDL FR W/ LENS VIOLET 0 - FH125M
DISCONTINUE
SUB: 56300B47G00N019		 COVER HDL FR W/ LENS BLACK 0 - FH125D
1-5 DISCONTINUE
SUB: 56311B47G00NX0C		 COVER HANDLE FRONT VIOLET 1 - FH125D
1-6 DISCONTINUE
SUB: 56311B47G10NX0C		 COVER HANDLE FRONT VIOLET 1 - FH125M
1-5 DISCONTINUE
SUB: 56311B47G10N888		 COVER HANDLE FR(BLANK) 1 - FH125M
1-4 DISCONTINUE
SUB: 56311B47G10N334		 COVER HANDLE FRONT BLUE 1 - FH125M
1-3 DISCONTINUE
SUB: 56311B47G10N079		 COVER HANDLE FRONT CEL RED 1 - FH125M
1-2 DISCONTINUE
SUB: 56311B47G10N019		 COVER HANDLE FRONT BLACK 1 - FH125M
1-6 DISCONTINUE
SUB: 56311B47G00NX0H		 COVER HANDLE FRONT TITAN BLACK 1 - FH125D
1-4 DISCONTINUE
SUB: 56311B47G00N888		 COVER HANDLE FR(BLANK) 1 - FH125D
1-3 DISCONTINUE
SUB: 56311B47G00N334		 COVER HANDLE FRONT BLUE 1 - FH125D
1-2 DISCONTINUE
SUB: 56311B47G00N079		 COVER HANDLE FRONT CEL RED 1 - FH125D
1-1 DISCONTINUE
SUB: 56311B47G00N019		 COVER HANDLE FRONT BLACK 1 - FH125D
2 DISCONTINUE
SUB: 56321B47G10N709		 COVER, HANDLE REAR 1 -
3 02142-0512A-000
SUB: 02142-05123-000		 SCREW, FRONT 2 Rp3.500
4 03511-0516A-000
SUB: 03512-05163-000		 SCREW, UPPER 2 Rp5.500
5 03541-0416A-000
SUB: 03541-04163-000		 SCREW, SIDE 2 Rp3.500
6 68281B47G00N000 EMBLEM, "S" 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
