ARASHI (FH125M/D)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.30 FRAMEFIG.31 STANDFIG.32 FOOTRESTFIG.33 FUEL TANKFIG.34 FRAME COVERFIG.35 LEG SHIELDFIG.36 CENTER LEG SHIELDFIG.37 LOWER LEG SHIELDFIG.38 FRONT FENDERFIG.39 HANDLE BARFIG.40 HANDLE COVERFIG.41 HANDLE LEVERFIG.42 REAR FENDERFIG.43 HELMET BOXFIG.44 LABELFIG.45 SEATFIG.46 FRONT FORK DAMPERFIG.47 FRONT FORK BRACKETFIG.48 FRONT WHEELFIG.49 FRONT CALIPERFIG.50 FRONT MASTER CYLINDERFIG.51 REAR SWINGING ARMFIG.52 CHAIN CASEFIG.53 REAR WHEEL

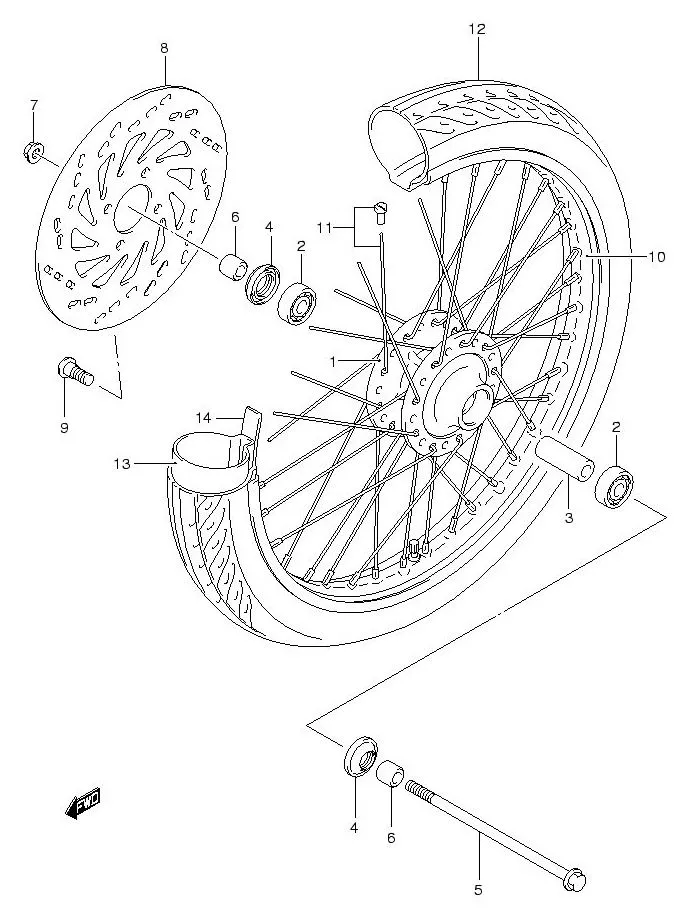

FIG.48 FRONT WHEEL

FIG.48 FRONT WHEEL
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 54111B20G00N000		 HUB, FRONT WHEEL 1 -
2 08123-63007-000
SUB: 08123-63007L000		 BEARING 2 Rp32.500
3 54731-20G00-000
SUB: 54731B20G00N000		 SPACER, FRONT HUB (10.2X16X51) 1 Rp7.500
4 09284-18003-000
SUB: 09284B18003N000		 SEAL, FRONT HUB OIL 2 Rp27.500
5 54711-13H00-000
SUB: 54711-04701L000		 AXLE, FRONT 1 Rp13.000
6 54751-20G00-000
SUB: 54751B20G00N000		 SPACER, FRONT AXLE RH 1 Rp26.000
7 08319-31108-000
SUB: 08319-31107-000		 NUT 1 Rp4.500
8 59211-09G00-018
SUB: 59211B09G00N018		 DISC, FRONT BRAKE 1 Rp213.000
9 59218-09G10-000
SUB: 59218B09G00N000		 BOLT 4 Rp7.000
10 55311-09G40-000
SUB: 55311B07050N000		 RIM, FRONT WHEEL (17X1.40) 1 Rp351.000
11 DISCONTINUE
SUB: 55320B47G00N000		 SPOKE ASSY, FRONT WHEEL 1 -
12 55110-20GG0-000
SUB: 55110B20G80N000		 TIRE, FRONT, 70/90-17M/C 43P 1 Rp272.500
13 DISCONTINUE
SUB: 55200B20G81N000		 TUBE ASSY, WHEEL INNER 1 -
14 DISCONTINUE
SUB: 55261B38D20N000		 PROTECTOR, WHEEL INNER 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
