ARASHI (FH125M/D)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.30 FRAMEFIG.31 STANDFIG.32 FOOTRESTFIG.33 FUEL TANKFIG.34 FRAME COVERFIG.35 LEG SHIELDFIG.36 CENTER LEG SHIELDFIG.37 LOWER LEG SHIELDFIG.38 FRONT FENDERFIG.39 HANDLE BARFIG.40 HANDLE COVERFIG.41 HANDLE LEVERFIG.42 REAR FENDERFIG.43 HELMET BOXFIG.44 LABELFIG.45 SEATFIG.46 FRONT FORK DAMPERFIG.47 FRONT FORK BRACKETFIG.48 FRONT WHEELFIG.49 FRONT CALIPERFIG.50 FRONT MASTER CYLINDERFIG.51 REAR SWINGING ARMFIG.52 CHAIN CASEFIG.53 REAR WHEEL

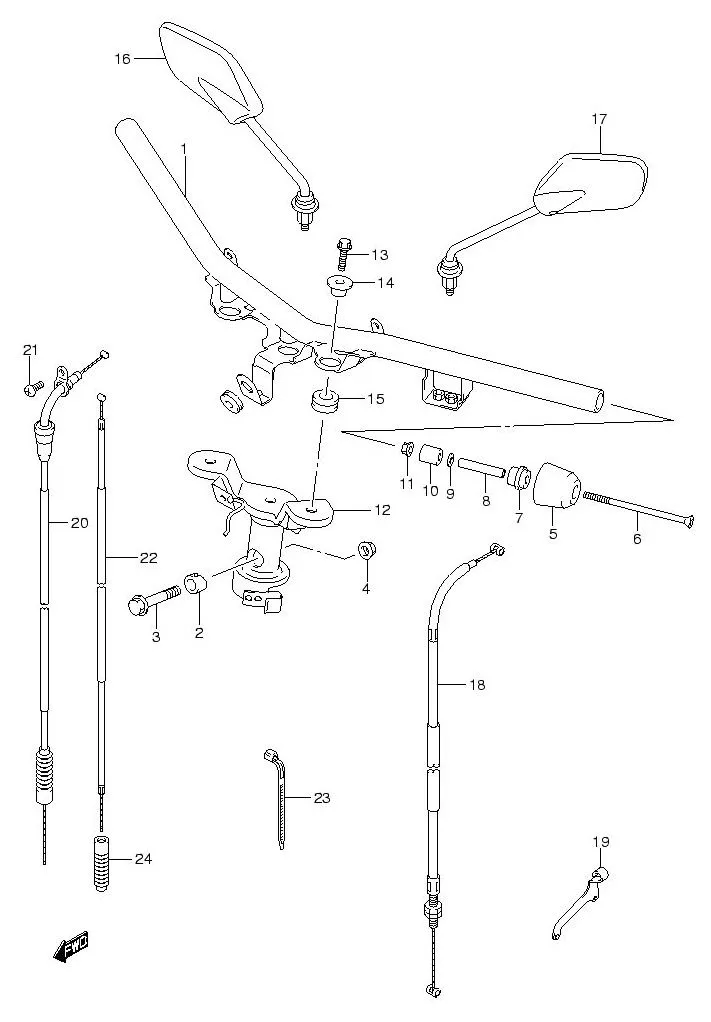

FIG.39 HANDLE BAR

FIG.39 HANDLE BAR
No No. Part Description Qty Price Per Pcs Remarks
1-2 DISCONTINUE
SUB: 56110B47G10N000		 HANDLEBAR 1 - FH125M
1-1 DISCONTINUE
SUB: 56110B47G00N000		 HANDLEBAR 1 - FH125D
2 51358-09G00-000 STOPPER, HANDLE 1 Rp8.000
3 09103-10126-000 BOLT 1 Rp28.500
4 08319-3110A-000
SUB: 08319-31103-000		 NUT 1 Rp4.500
5 56278-28F00-000 BALANCER, HANDLE 2 Rp105.000
6 09127-06018-000 SCREW 2 Rp4.000
7 56272-28F00-000
SUB: 56272B28F00N000		 EXPANDER, OUTER 2 Rp11.500
8 56276-17D00-000 SPACER 2 Rp9.000
9 09160-06126-000 WASHER 2 Rp3.000
10 56272-23F10-000 EXPANDER, INNER 2 Rp4.500
11 09159-06024-000 NUT 2 Rp4.000
12 DISCONTINUE
SUB: 51310B47G00N000		 BRACKET, FORK UPPER 1 -
13 01550-0825A-000
SUB: 01550-08253-000		 BOLT 3 Rp3.500
14 DISCONTINUE
SUB: 56243B09G00N000		 SPACER 3 -
15 DISCONTINUE
SUB: 56247B09G00N000		 CUSHION 3 -
16 56500-09G30-000
SUB: 56500B09G30N000		 MIRROR ASSY, REAR VIEW RH 1 Rp86.000
17 56600-09G30-000
SUB: 56600B09G30N000		 MIRROR ASSY, REAR VIEW LH 1 Rp86.000
18 58200-47G00-000
SUB: 58200B47G00N000		 CABLE, CLUTCH 1 Rp48.500 FH125M
19 DISCONTINUE
SUB: 58634B20G00N000		 STOPPER 1 - FH125M
20 58300-47G00-000
SUB: 58300B47G00N000		 CABLE ASSY, THROTTLE 1 Rp49.500
21 02112-0512A-000
SUB: 02112B05123N000		 SCREW 1 Rp2.500
22 DISCONTINUE
SUB: 58410B47G00N000		 CABLE, STARTER 1 -
23 DISCONTINUE
SUB: 09407B25401N000		 CLAMP 1 -
24 58333-35401-000
SUB: 58333-35400-000		 SEAL, DUST 1 Rp35.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
