ARASHI (FH125M/D)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.30 FRAMEFIG.31 STANDFIG.32 FOOTRESTFIG.33 FUEL TANKFIG.34 FRAME COVERFIG.35 LEG SHIELDFIG.36 CENTER LEG SHIELDFIG.37 LOWER LEG SHIELDFIG.38 FRONT FENDERFIG.39 HANDLE BARFIG.40 HANDLE COVERFIG.41 HANDLE LEVERFIG.42 REAR FENDERFIG.43 HELMET BOXFIG.44 LABELFIG.45 SEATFIG.46 FRONT FORK DAMPERFIG.47 FRONT FORK BRACKETFIG.48 FRONT WHEELFIG.49 FRONT CALIPERFIG.50 FRONT MASTER CYLINDERFIG.51 REAR SWINGING ARMFIG.52 CHAIN CASEFIG.53 REAR WHEEL

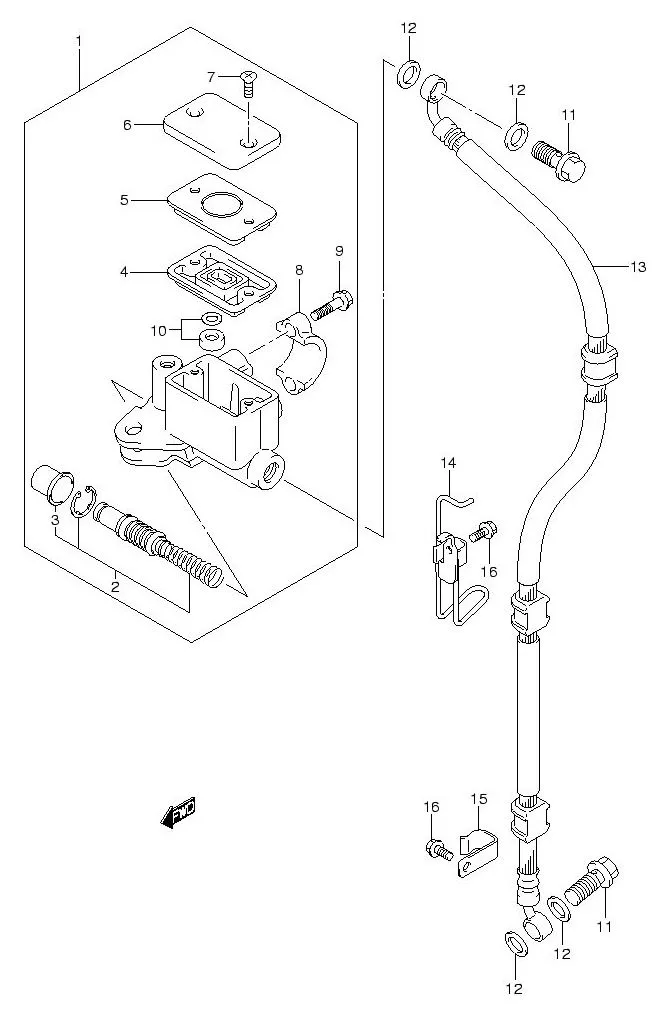

FIG.50 FRONT MASTER CYLINDER

FIG.50 FRONT MASTER CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 59600-21D20-000
SUB: 59600B21D20N000		 CYLINDER ASSY, FRONT MASTER 1 Rp1.018.500
2 59600-21810-000
SUB: 59600-21810L000		 .PISTON/CUP SET 1 Rp73.500
3 59666-44300-000 ..BOOT 1 Rp16.000
4 59667-44B00-000
SUB: 59667-44B00L000		 .DIAPHRAGM 1 Rp13.000
5 59668-21D20-000
SUB: 59668B21D20N000		 .PLATE 1 Rp3.000
6 59669-21D20-000
SUB: 59669B21D20N000		 .CAP 1 Rp40.000
7 69689-49300-000
SUB: 69689-49300L000		 .SCREW 2 Rp3.000
8 59671-36500-000
SUB: 59671B36500N000		 .HOLDER 1 Rp23.000
9 59675-02FA0-000
SUB: 59675B02FA0N000		 .BOLT 2 Rp9.000
10 59664-32F00-000
SUB: 59664B32F00N000		 .PROTECTOR 1 Rp20.500
11 DISCONTINUE
SUB: 09360B10042N000		 BOLT, BRAKE FLUID 2 -
12 09168-10033-000
SUB: 09168B10033N000		 WASHER, BRAKE FLUID 4 Rp8.500
13 DISCONTINUE
SUB: 59480B20G00N000		 HOSE, FRONT BRAKE 1 -
14 DISCONTINUE
SUB: 59260B20G10N000		 CLAMP, FR BRAKE HOSE NO.1 1 -
15 DISCONTINUE
SUB: 59245B20G00N000		 CLAMP, FR BRAKE HOSE NO.2 1 -
16 01550-0610B-000
SUB: 01550B06103N000		 BOLT, BRAKE HOSE CLAMP 1 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
