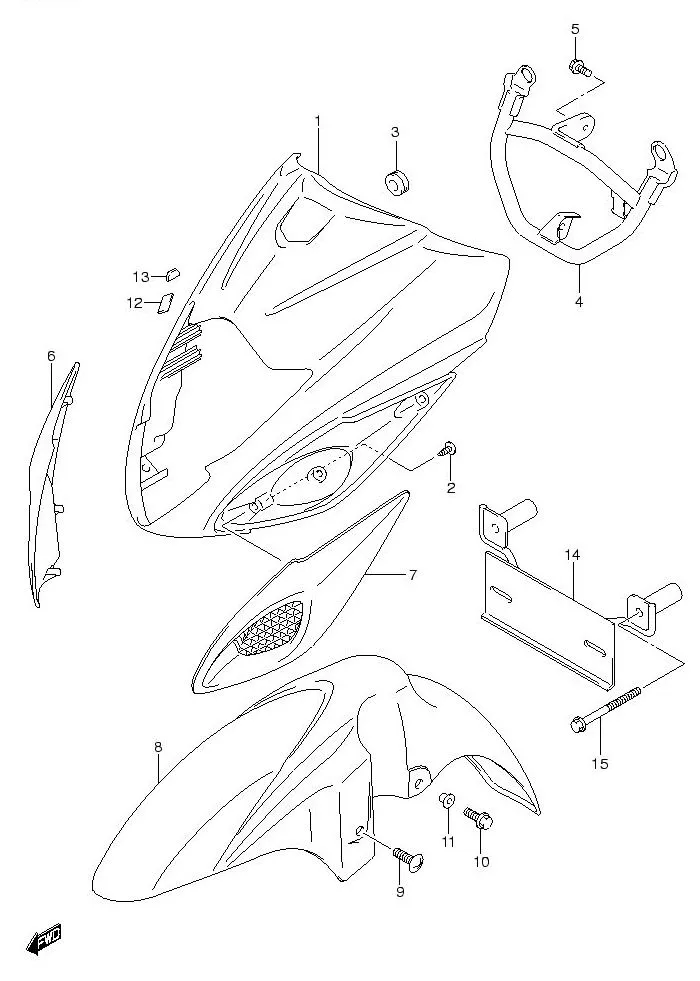

FIG.38 FRONT FENDER

FIG.38 FRONT FENDER
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 51871B47G10N190		 COVER, FRAME HEAD 1 -
2 03242-0416B-000
SUB: 03241-04163-000		 SCREW, UPPER 2 Rp33.500
3 48169-12JA0-000
SUB: 09320-08013L000		 CUSHION 2 Rp15.000
4 DISCONTINUE
SUB: 51860B47G10N000		 BRACE, HEAD COVER 1 -
5 01547-0616A-000
SUB: 01547-06163-000		 BOLT 2 Rp6.500
6 DISCONTINUE
SUB: 51881B47G00N709		 COVER HEAD SIDE RH DARK GRAY 1 -
7 DISCONTINUE
SUB: 51882B47G00N709		 COVER HEAD SIDE LH DARK GRAY 1 -
8-2 DISCONTINUE
SUB: 53111B47G00N334		 FENDER FRONT BLUE 1 -
8-3 DISCONTINUE
SUB: 53111B47G00NX0C		 FENDER FRONT VIOLET 1 -
8-1 DISCONTINUE
SUB: 53111B47G00N079		 FENDER FRONT CEL RED 1 -
9 09139-06145-000 SCREW 2 Rp6.500
10 01547-0610A-000
SUB: 01547-06123-000		 BOLT 2 Rp3.000
11 09169-06053-000 WASHER 2 Rp7.500
12 DISCONTINUE
SUB: 48135B47G00N000		 CUSHION 2 -
13 DISCONTINUE
SUB: 51874B47G00N000		 CUSHION 2 -
14 DISCONTINUE
SUB: 48190B47G00N000		 PLATE, FRONT LICENSE 1 -
15 02142-0645B-000
SUB: 02142-06453-000		 SCREW 2 Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
