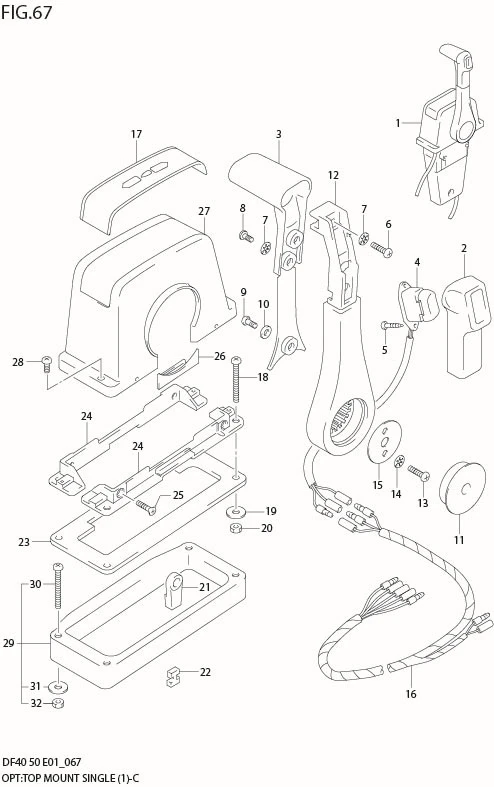

FIG 67 OPT:TOP MOUNT SINGLE (1)(MODEL:05%10)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	67200-88L02-000 SUB: 67200-93J12-000	REMOTE CONTROL ASSY	1	Rp5.021.000	PUSH
2	67261-93J00-000	?GRIP, NO.1	1	Rp134.500
3	67263-93J00-000	?GRIP, NO.2	1	Rp161.000
4	37850-93J10-000	?SWITCH ASSY, PTT	1	Rp1.368.000
5	67295-92E10-000	?SCREW	2	Rp19.500
6	67296-88D10-000	?SCREW	1	Rp30.000
7	DISCONTINUE SUB: 67288-92E20-000	?WASHER	3	-
8	67295-92E00-000	?SCREW	2	Rp26.000
9	67296-92E70-000	?SCREW	1	Rp26.000
10	67288-92E40-000	?WASHER	1	Rp26.000
11	67257-92E00-000	?CAP, LEVER	1	Rp95.000
12	67251-93J00-000	?LEVER, HANDLE	1	Rp1.018.000
13	67296-92E60-000	?SCREW	2	Rp25.000
14	67288-92E30-000	?WASHER	2	Rp26.000
15	67253-92E00-000	?WASHER	1	Rp42.000
16	36890-93J01-000 SUB: 36890-93J00-000	?WIRE HARNESS	1	Rp665.000
17	67281-93J00-000	?DECAL	1	Rp111.000
18	67296-92E30-000	?SCREW	4	Rp25.000
19	09160-05024-000	?WASHER	4	Rp9.500
20	DISCONTINUE SUB: 67287-92E00-000	?NUT	4	-
21	67275-95600-000	?END, CABLE	2	Rp70.500
22	67273-95601-000 SUB: 67273-95600-000	?SPACER	1	Rp35.000
23	67273-92E00-000	?GROMMET	1	Rp117.000
24	67274-92E00-000	?FLANGE	2	Rp360.000
25	67296-95610-000	?SCREW	4	Rp23.500
26	67271-92E00-000	?COVER	1	Rp55.000
27	67211-93J00-000	?COVER	1	Rp360.000	?67211-92E00
28	67296-92E70-000	?SCREW	2	Rp26.000
29	DISCONTINUE SUB: 67500-93J00-000	KIT, REMOCON SPACER SINGLE	1	-
30	09125-05135-000	?SCREW	4	Rp19.000
31	09160-05029-000	?WASHER	4	Rp14.000
32	09140-05005-000	?NUT	4	Rp20.000
