DF40 50 E01

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG 1 CYLINDER HEAD FIG 2 CYLINDER BLOCK FIG 3 OIL SEAL HOUSING (MODEL:99,00)FIG 4 OIL SEAL HOUSING (MODLE:01%10)FIG 5 CRANKSHAFT FIG 6 TIMING CHAIN FIG 7 CAMSHAFT FIG 8 INLET MANIFOLD FIG 9 SILENCER (MODEL:99,00)FIG 10 SILENCER (MODEL:01%06)FIG 10A SILENCER (DF40:680712%,DF50:681339%)FIG 11 FUEL VAPOR SEPARATOR (MODEL:99)FIG 12 FUEL VAPOR SEPARATOR (MODEL:00%10)FIG 13 FUEL INJECTOR FIG 14 FUEL PUMP FIG 15 WATER PUMP FIG 16 THERMOSTAT FIG 17 THROTTLE BODY FIG 18 OIL PUMP FIG 19 OIL PAN FIG 20 CLUTCH FIG 21 SHIFT ROD FIG 22 TRANSMISSION (*)FIG 23 TRANSMISSION (*)FIG 24 STARTING MOTOR (MODEL:99,00)FIG 25 STARTING MOTOR (MODEL:01%04)FIG 26 STARTING MOTOR (MODEL:05%10)FIG 27 MAGNETO (MODEL:99,00)FIG 28 MAGNETO (MODEL:01%04)FIG 29 MAGNETO (MODEL:05%10)FIG 30 IGNITION COIL (MODEL:99%04)FIG 31 IGNITION COIL (MODEL:05%10)FIG 32 HARNESS FIG 33 ENGINE CONTROL UNIT FIG 34 SENSOR FIG 35 CLAMP BRACKET (MODEL:99,00)FIG 36 CLAMP BRACKET (MODEL:01%10)FIG 37 SWIVEL BRACKET (MODEL:99,00)FIG 38 SWIVEL BRACKET (MODEL:01%10)FIG 39 GAS CYLINDER (TYPE:QH,WQH MODEL:99,00)FIG 40 GAS CYLINDER (TYPE:QH,WQH MODEL:01%10)FIG 41 POWER TRIM/TILT (TYPE:T MODEL:99,00)FIG 42 POWER TRIM/TILT (TYPE:T MODEL:01%10)FIG 43 PTT MOTOR (TYPE:T MODEL:99,00)FIG 44 PTT MOTOR (TYPE:T MODEL:01%10)FIG 45 ENGINE HOLDER FIG 46 DRIVE SHAFT HOUSING FIG 47 GEAR CASE FIG 48 SIDE COVER FIG 49 ENGINE COVER (MODEL:99%02)FIG 50 ENGINE COVER (MODEL:03%09)FIG 50A ENGINE COVER (MODEL:10)FIG 51 TILLER HANDLE (TYPE:QH,WQH,TH)FIG 52 FUEL TANK (STEEL)FIG 53 FUEL TANK (PLASTIC)FIG 54 DRAG LINK FIG 55 REMOTE CONTROL (MODEL:99%03)FIG 56 REMOTE CONTROL (MODEL:04)FIG 57 REMOTE CONTROL (MODEL:05%10)FIG 58 OPT:METER (MODEL:99%04)FIG 59 OPT:METER (MODEL:05%)FIG 60 OPT:METER (MODEL:08%)FIG 61 OPT:TRIM SENDER FIG 62 OPT:HARNESS FIG 63 OPT:HARNESS (MODEL:08%)FIG 64 OPT:SWITCH (MODEL:99%04)FIG 65 OPT:SWITCH (MODEL:05%10)FIG 66 OPT:TRIM SWITCH (MODEL:99%04)FIG 67 OPT:TOP MOUNT SINGLE (1)(MODEL:05%10)FIG 68 OPT:TOP MOUNT SINGLE (2)(MODEL:05%10)FIG 69 OPT:TOP MOUNT DUAL (1)(MODEL:05%10)FIG 70 OPT:TOP MOUNT DUAL (2)(MODEL:05%10)FIG 71 OPT:TILLER HANDLE FIG 72 OPT:GASKET SET

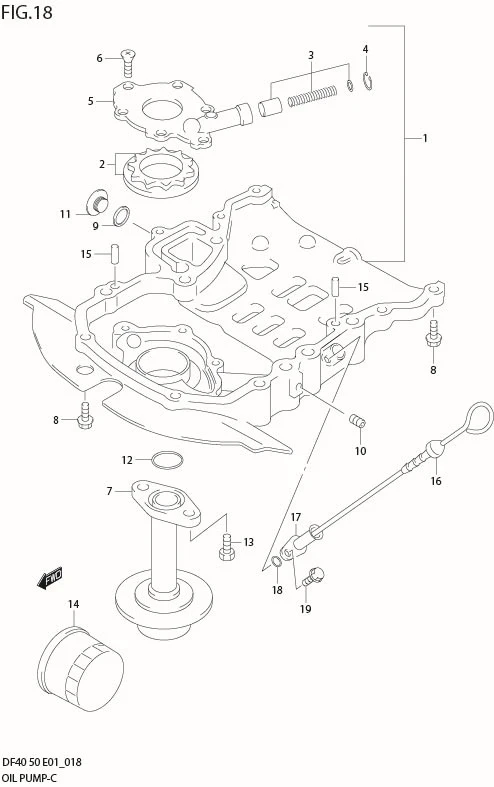

FIG 18 OIL PUMP

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	16100-87J11-000	CASE, OIL PUMP (BLACK)	1	Rp4.072.000	MODEL:04%10
1-1	16100-87J11-000 SUB: 16100-87J01-019	CASE, OIL PUMP (BLACK)	1	Rp4.072.000	?16100-87J00-019
2	DISCONTINUE SUB: 16130-70B01-000	?ROTOR SET, OIL PUMP	1	-
3	16150-60A20-000	?VALVE SET, OIL PUMP RELIEF	1	Rp74.000	?16150-60A00
4	DISCONTINUE SUB: 08331-4115A-000	?CIRCLIP	1	-
5	16161-87J00-000	?PLATE, OIL PUMP ROTOR	1	Rp510.500
6	02122-0616A-000 SUB: 02122B0616AN000	?SCREW	6	Rp3.500
7	16520-87J00-000	STRAINER, OIL	1	Rp206.500
8	29116-93J10-000	BOLT	7	Rp29.500	?09116-08114
9	09160-18031-000	WASHER (18.5X28X2.6)	1	Rp19.500
10	11118-98J01-000 SUB: 11118-98J00-000	PLUG	1	Rp20.500
11-1	09248-18006-000	PLUG	1	Rp35.000
11-2	09248-18010-000	PLUG	1	Rp50.500	DF40:510326%
12	09280-16005-000	O RING (D:2.4 ID:15.8)	1	Rp12.500
13	01570-0616A-000	BOLT	2	Rp14.000
14	16510-87J02-000 SUB: 16510-87J00-000	FILTER ASSY, OIL	1	Rp154.000
15	04221-08149-000	PIN	2	Rp12.500
16	16910-87J00-000	GAUGE, OIL LEVEL	1	Rp158.000
17-1	16930-87J00-000	GUIDE, OIL LEVEL GAUGE	1	-
17-2	16930-87J01-000	GUIDE, OIL LEVEL GAUGE	1	Rp85.000	DF40:151407%
18	09280-09008-000	O RING (D:2.1,ID:8.8)	1	Rp20.000
19	01550-06127-000	BOLT	1	Rp17.000
