DF40 50 E01

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG 1 CYLINDER HEADFIG 2 CYLINDER BLOCKFIG 3 OIL SEAL HOUSING (MODEL:99,00)FIG 4 OIL SEAL HOUSING (MODLE:01%10)FIG 5 CRANKSHAFTFIG 6 TIMING CHAINFIG 7 CAMSHAFTFIG 8 INLET MANIFOLDFIG 9 SILENCER (MODEL:99,00)FIG 10 SILENCER (MODEL:01%06)FIG 10A SILENCER (DF40:680712%,DF50:681339%)FIG 11 FUEL VAPOR SEPARATOR (MODEL:99)FIG 12 FUEL VAPOR SEPARATOR (MODEL:00%10)FIG 13 FUEL INJECTORFIG 14 FUEL PUMPFIG 15 WATER PUMPFIG 16 THERMOSTATFIG 17 THROTTLE BODYFIG 18 OIL PUMPFIG 19 OIL PANFIG 20 CLUTCHFIG 21 SHIFT RODFIG 22 TRANSMISSION (*)FIG 23 TRANSMISSION (*)FIG 24 STARTING MOTOR (MODEL:99,00)FIG 25 STARTING MOTOR (MODEL:01%04)FIG 26 STARTING MOTOR (MODEL:05%10)FIG 27 MAGNETO (MODEL:99,00)FIG 28 MAGNETO (MODEL:01%04)FIG 29 MAGNETO (MODEL:05%10)FIG 30 IGNITION COIL (MODEL:99%04)FIG 31 IGNITION COIL (MODEL:05%10)FIG 32 HARNESSFIG 33 ENGINE CONTROL UNITFIG 34 SENSORFIG 35 CLAMP BRACKET (MODEL:99,00)FIG 36 CLAMP BRACKET (MODEL:01%10)FIG 37 SWIVEL BRACKET (MODEL:99,00)FIG 38 SWIVEL BRACKET (MODEL:01%10)FIG 39 GAS CYLINDER (TYPE:QH,WQH MODEL:99,00)FIG 40 GAS CYLINDER (TYPE:QH,WQH MODEL:01%10)FIG 41 POWER TRIM/TILT (TYPE:T MODEL:99,00)FIG 42 POWER TRIM/TILT (TYPE:T MODEL:01%10)FIG 43 PTT MOTOR (TYPE:T MODEL:99,00)FIG 44 PTT MOTOR (TYPE:T MODEL:01%10)FIG 45 ENGINE HOLDERFIG 46 DRIVE SHAFT HOUSINGFIG 47 GEAR CASEFIG 48 SIDE COVERFIG 49 ENGINE COVER (MODEL:99%02)FIG 50 ENGINE COVER (MODEL:03%09)FIG 50A ENGINE COVER (MODEL:10)FIG 51 TILLER HANDLE (TYPE:QH,WQH,TH)FIG 52 FUEL TANK (STEEL)FIG 53 FUEL TANK (PLASTIC)FIG 54 DRAG LINKFIG 55 REMOTE CONTROL (MODEL:99%03)FIG 56 REMOTE CONTROL (MODEL:04)FIG 57 REMOTE CONTROL (MODEL:05%10)FIG 58 OPT:METER (MODEL:99%04)FIG 59 OPT:METER (MODEL:05%)FIG 60 OPT:METER (MODEL:08%)FIG 61 OPT:TRIM SENDERFIG 62 OPT:HARNESSFIG 63 OPT:HARNESS (MODEL:08%)FIG 64 OPT:SWITCH (MODEL:99%04)FIG 65 OPT:SWITCH (MODEL:05%10)FIG 66 OPT:TRIM SWITCH (MODEL:99%04)FIG 67 OPT:TOP MOUNT SINGLE (1)(MODEL:05%10)FIG 68 OPT:TOP MOUNT SINGLE (2)(MODEL:05%10)FIG 69 OPT:TOP MOUNT DUAL (1)(MODEL:05%10)FIG 70 OPT:TOP MOUNT DUAL (2)(MODEL:05%10)FIG 71 OPT:TILLER HANDLEFIG 72 OPT:GASKET SET

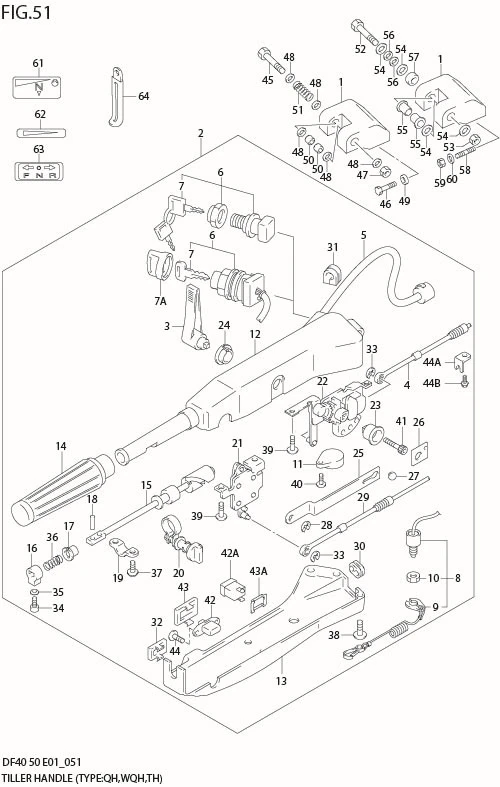

FIG 51 TILLER HANDLE (TYPE:QH,WQH,TH)

FIG 51 TILLER HANDLE (TYPE:QH,WQH,TH)
No No. Part Description Qty Price Per Pcs Remarks
1-1 43761-87J01-0EP BRACKET, TILLER HANDLE (BLACK) 1 Rp1.375.500
1-2 43761-87J11-0EP BRACKET, TILLER HANDLE (BLACK) 1 Rp692.500 MODEL:07%10
2-1 63110-87J04-0EP HANDLE ASSY, TILLER (BLACK) 1 -
2-2 63110-87J05-0EP HANDLE ASSY, TILLER (BLACK) 1 - MODEL:04
2-3 63110-87J31-0EP HANDLE ASSY, TILLER (BLACK) 1 - TYPE:QH,WQH MODEL:05,06
2-4 63110-87J51-0EP HANDLE ASSY, TILLER (BLACK) 1 - TYPE:TH MODEL:05,06
2-5 63110-87J61-0EP HANDLE ASSY, TILLER (BLACK) 1 Rp5.666.500 TYPE:QH,WQH MODEL:07%10
2-6 63110-87J71-0EP HANDLE ASSY, TILLER (BLACK) 1 - TYPE:TH MODEL:07%10
2-7 63110-87J63-0EP HANDLE ASSY, TILLER (BLACK) 1 - TYPE:QH,WQH
2-8 63110-87J73-0EP HANDLE ASSY, TILLER (BLACK) 1 Rp5.951.000 TYPE:TH
3 21111-87J10-0EP ?LEVER, CLUTCH (BLACK) 1 Rp858.000
4 23230-87J00-000 ?CABLE, CLUTCH 1 Rp1.049.500
5-1 36620-87J00-000 ?WIRE, HANDLE 1 Rp874.000
5-2 36620-87J20-000 ?WIRE, HANDLE 1 Rp829.000 MODEL:05%10
6-1 37110-87J01-000 ?SWITCH, IGNITION 1 -
6-2 37110-87J21-000
SUB: 37110-87J20-000		 ?SWITCH, IGNITION 1 Rp561.000 MODEL:04%10
7-1 37141-92E00-000 ??KEY (11) 1 Rp178.500
7-2 37141-92E10-000 ??KEY (12) 1 Rp178.500
7-3 37141-92E20-000 ??KEY (13) 1 Rp178.500
7-4 37141-92E30-000 ??KEY (14) 1 Rp147.000
7-5 37141-92E40-000 ??KEY (15) 1 Rp178.500
7-6 37141-92E50-000 ??KEY (16) 1 Rp77.500
7-7 37141-92E60-000 ??KEY (17) 1 Rp178.500
7-8 37141-92E70-000 ??KEY (18) 1 Rp178.500
7-9 37141-92E80-000 ??KEY (19) 1 Rp178.500
7-10 37141-92E90-000 ??KEY (20) 1 Rp147.000
7-11 DISCONTINUE
SUB: 37141-99E00-000		 ??KEY (931) 1 - MODEL:04%10
7-12 DISCONTINUE
SUB: 37141-99E10-000		 ??KEY (932) 1 - MODEL:04%10
7-13 DISCONTINUE
SUB: 37141-99E20-000		 ??KEY (933) 1 - MODEL:04%10
7-14 DISCONTINUE
SUB: 37141-99E30-000		 ??KEY (934) 1 - MODEL:04%10
7-15 DISCONTINUE
SUB: 37141-99E40-000		 ??KEY (935) 1 - MODEL:04%10
7-16 DISCONTINUE
SUB: 37141-99E50-000		 ??KEY (936) 1 - MODEL:04%10
7-17 DISCONTINUE
SUB: 37141-99E60-000		 ??KEY (937) 1 - MODEL:04%10
7-18 DISCONTINUE
SUB: 37141-99E70-000		 ??KEY (938) 1 - MODEL:04%10
7-19 DISCONTINUE
SUB: 37141-99E80-000		 ??KEY (939) 1 - MODEL:04%10
7-20 DISCONTINUE
SUB: 37141-99E90-000		 ??KEY (940) 1 - MODEL:04%10
7-21 DISCONTINUE
SUB: 37141-99EA0-000		 ??KEY (941) 1 - MODEL:04%10
7-22 DISCONTINUE
SUB: 37141-99EB0-000		 ??KEY (942) 1 - MODEL:04%10
7A 37143-99E00-000 ??CAP, KEY 1 Rp26.000 MODEL:04%10
8 37820-87J04-000
SUB: 37820-87J02-000		 ?SWITCH, EMERGENCY 1 Rp669.500
9 37823-92E02-000
SUB: 37823-92E01-000		 ??PLATE, LOCK 1 Rp221.500
10 37826-92E00-000 ??NUT 1 Rp82.000
11 DISCONTINUE
SUB: 38500-92X50-000		 ?BUZZER 1 -
12-1 63111-87J03-0EP ?HOUSING, TILLER HANDLE 1 - ?63111-87J02-0EP
12-2 63111-87J10-0EP ?HOUSING, TILLER HANDLE 1 Rp1.312.500 MODEL:07%10
13-1 63120-87J00-000
SUB: 63121-87J02-000		 ?COVER, UNDER 1 Rp260.500 !63120-87J00
13-2 63121-87J03-000 ?COVER, UNDER 1 Rp243.500 DF40:011030%
14 63210-93E30-000 ?GRIP, HANDLE 1 Rp316.500
15 63221-87J00-000 ?ROD, HANDLE 1 Rp545.000
16 63223-92D00-000 ?STOPPER, HANDLE ROD 1 Rp40.000
17 63225-93200-000 ?BUSH, HANDLE ROD 1 Rp37.000
18 63227-93200-000 ?PIN, HANDLE ROD 1 Rp21.000
19 63235-87J00-000 ?PLATE, HANDLE ROD 1 Rp28.500
20 63240-87J00-000 ?ADJUSTER, HANDLE GRIP 1 Rp111.000
21 63250-87J01-000 ?LINK, THROTTLE 1 Rp1.628.500
22 63260-87J02-000 ?LINK, CLUTCH 1 Rp2.152.500
23 63261-87J00-000 ?SPACER, CLUTCH LINK 1 Rp114.500
24 63262-87J00-000 ?BUSH, CLUTCH LEVER 1 Rp38.000
25 63271-87J00-000 ?PLATE, LOCK 1 Rp136.000 ?63271-87J10
26 63272-87J00-000 ?PLATE, BALL GUIDE 1 Rp85.000
27 63273-87J00-000 ?BALL 1 Rp53.000
28 63274-87J00-000 ?E RING 1 Rp24.000
29 63610-87J00-000 ?CABLE, THROTTLE 1 Rp307.000
30 63625-87J00-000 ?GROMMET, THROTTLE CABLE 1 Rp679.000
31 63626-87J01-000 ?GROMMET, HANDLE WIRE 1 Rp61.000
32-1 67263-87J00-000 ?COVER, TRIM SW 1 Rp28.500 TYPE:QH,WQH
32-2 67263-99E00-000 ?COVER, TRIM SW 1 Rp54.500 TYPE:TH
32-3 67263-87J10-000 ?COVER, TRIM SW 1 Rp70.000 TYPE:QH,WQH
33 67292-87J00-000 ?E RING 1 Rp24.500
34 09126-06015-000 ?SCREW 1 Rp19.500
35 09163-06001-000 ?WASHER, HANDLE GRIP 1 Rp12.000
36 09440-12027-000 ?SPRING, HANDLE ROD 1 Rp13.500
37 09136-05008-000 ?SCREW (5X12) 2 Rp28.500
38 DISCONTINUE
SUB: 09125-05047-000		 ?SCREW (5X14) 6 -
39 63251-87J00-000 ?SCREW (6X12) 4 Rp27.000
40 02142-05207-000 ?SCREW 1 Rp11.000
41 09106-08099-000 ?BOLT (8X50) 1 Rp25.500
42 DISCONTINUE
SUB: 37860-94610-000		 ?SWITCH, TRIM 1 - TYPE:TH
42A 37850-87J00-000 ?SWITCH ASSY, TRIM 1 Rp752.000 TYPE:TH
43 DISCONTINUE
SUB: 37869-95590-000		 ?CAP, TRIM SWITCH 1 - TYPE:TH
43A 37852-87J00-000 ?PLATE, TRIM SWITCH 1 Rp112.000 TYPE:TH
44 DISCONTINUE
SUB: 09139-02003-000		 ?SCREW (2X6) 2 - TYPE:TH
44A 63611-87J00-000 ?BOLT, CLAMP BRACKET 2 Rp71.000 MODEL:07 LATER%
44B 63612-87J00-000 ?BRACKET, CLAMP 2 Rp184.500 MODEL:07 LATER%
45 09100-10264-000 BOLT (10X80) 1 Rp111.000 MODEL:99%06
46 DISCONTINUE
SUB: 09100-10155-000		 BOLT (10X45) 2 - MODEL:99%06
47 09159-10050-000 NUT 1 Rp25.000 MODEL:99%06
48 09160-10097-000 WASHER 4 Rp26.000 MODEL:99%06
49 09162-10005-000 WASHER 2 Rp13.500 MODEL:99%06
50 DISCONTINUE
SUB: 09306-10009-000		 BUSH 4 - MODEL:99%06
51 DISCONTINUE
SUB: 09440-22008-000		 SPRING 1 - MODEL:99%06
52 09100-10264-000 BOLT, TILLER HANDLE PIVOT 1 Rp111.000 MODEL:07%10
53 09159-10050-000 NUT, TILLER HANDLE PIVOT 1 Rp25.000 MODEL:07%10
54 09160-10114-000 WASHER, TILLER HANDLE PIVOT 4 Rp24.500 MODEL:07%10
55 09306-10020-000 BUSH, TILLER HANDLE PIVOT 2 Rp28.000 MODEL:07%10
56 09164-10016-000 WASHER, TILLER HANDLE SPRING 2 Rp47.500 MODEL:07%10
57 43768-90J01-000 SPACER, TILLER HANDLE 1 Rp305.500 MODEL:07%10
58 DISCONTINUE
SUB: 09108-10026-000		 BOLT, TILLER HANDLE BRKT STUD 2 - MODEL:07%10
59 09159-10104-000 NUT, TILLER HANDLE BRKT LOCK 2 Rp30.000 MODEL:07%10
60 09160-10140-000 WASHER, TILLER HANDLE BRKT 2 Rp19.500 MODEL:07%10
61 69714-93E11-000 MARK, ENGINE START 1 Rp34.000 MODEL:99
62 63215-93110-000 MARK, HANDLE GRIP 1 Rp30.000
63 21131-96010-000 MARK, CLUTCH SHIFT 1 Rp12.000
64 DISCONTINUE
SUB: 29404-93J30-000		 CLAMP 1 - ?09404-10205

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
