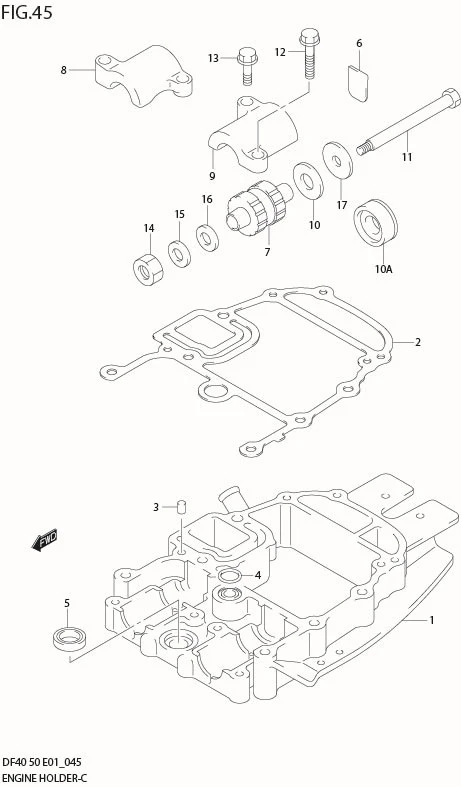

FIG 45 ENGINE HOLDER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	51110-87J03-0EP	HOLDER, ENGINE (BLACK)	1	Rp5.723.500	DF40:371594%
1-1	DISCONTINUE SUB: 51110-87J02-0EP	HOLDER, ENGINE (BLACK)	1	-	!51110-87J03-0EP
1-3	51110-87J10-0EP	HOLDER, ENGINE (BLACK)	1	Rp3.226.000	MODEL:06%10
2	51211-87J00-000	GASKET, ENGINE HOLDER	1	Rp495.500
3	04221-08149-000	PIN	2	Rp12.500
4	09280-16005-000	O RING (D:2.4 ID:15.8)	1	Rp12.500	MODEL:99%05
5-1	09282-17009-000	OIL SEAL	1	Rp69.000
5-2	09282-17011-000	OIL SEAL	1	Rp106.000	MODEL:03%10
6	54125-87J00-000	MOUNT, UPPER THRUST REVERSE	2	Rp29.000
7-1	54130-87J21-000	MOUNT, UPPER	2	Rp651.500	TYPE:S,L
7-2	54130-87J30-000	MOUNT, UPPER	2	Rp339.000	TYPE:X
7-3	54130-87J40-000	MOUNT, UPPER	2	Rp454.000	TYPE:S,L
7-4	54130-87J50-000	MOUNT, UPPER	2	Rp236.500	TYPE:X
8	54148-99E01-0EP	COVER, UPPER MOUNT STBD	1	Rp1.052.500	?54148-99E00-0EP
9	54149-99E01-0EP	COVER, UPPER MOUNT PORT	1	Rp803.000	?54149-99E00-0EP
10A-2	54120-87J11-000	STOPPER, UPPER THRUST	2	Rp129.500	MODEL:05%10
10A-1	54120-87J00-000	STOPPER, UPPER THRUST	2	Rp118.500	DF40:032758%
10	DISCONTINUE SUB: 54165-94400-000	STOPPER, UPPER THRUST	4	-
11-1	DISCONTINUE SUB: 09100-10190-000	BOLT (10X145)	2	-
11-2	09100-10306-000	BOLT (10X150)	2	Rp91.500	DF40:032758%
11-3	54112-87J00-000	BOLT (12X45)	2	Rp186.000	MODEL:05%07
11-4	54112-87J01-000	BOLT (12X45)	2	Rp396.000	MODEL:08%10
12	09116-08128-000	BOLT (8X40)	2	Rp124.500	?09116-08098
13-1	09116-08099-000	BOLT (8X30)	2	-
13-2	09116-08122-000	BOLT (8X30)	2	Rp29.000	MODEL:03%10
14-1	09159-10050-000	NUT	2	Rp23.500
14-2	09159-12014-000	NUT (M12)	2	Rp37.000	MODEL:05%10
15-1	DISCONTINUE SUB: 09160-10081-000	WASHER (10X20X3.0)	2	-
15-2	09160-12110-000	WASHER (12.5X22X3)	2	Rp55.000	MODEL:05%10
16-1	09160-10082-000	WASHER (10.5X19X2.0)	2	Rp12.000
16-2	09160-12110-000	WASHER (12.5X22X3)	2	Rp55.000	MODEL:05%10
17	09160-10134-000	WASHER	2	Rp17.000	DF40:%032757
