DF40 50 E01

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG 1 CYLINDER HEAD FIG 2 CYLINDER BLOCK FIG 3 OIL SEAL HOUSING (MODEL:99,00)FIG 4 OIL SEAL HOUSING (MODLE:01%10)FIG 5 CRANKSHAFT FIG 6 TIMING CHAIN FIG 7 CAMSHAFT FIG 8 INLET MANIFOLD FIG 9 SILENCER (MODEL:99,00)FIG 10 SILENCER (MODEL:01%06)FIG 10A SILENCER (DF40:680712%,DF50:681339%)FIG 11 FUEL VAPOR SEPARATOR (MODEL:99)FIG 12 FUEL VAPOR SEPARATOR (MODEL:00%10)FIG 13 FUEL INJECTOR FIG 14 FUEL PUMP FIG 15 WATER PUMP FIG 16 THERMOSTAT FIG 17 THROTTLE BODY FIG 18 OIL PUMP FIG 19 OIL PAN FIG 20 CLUTCH FIG 21 SHIFT ROD FIG 22 TRANSMISSION (*)FIG 23 TRANSMISSION (*)FIG 24 STARTING MOTOR (MODEL:99,00)FIG 25 STARTING MOTOR (MODEL:01%04)FIG 26 STARTING MOTOR (MODEL:05%10)FIG 27 MAGNETO (MODEL:99,00)FIG 28 MAGNETO (MODEL:01%04)FIG 29 MAGNETO (MODEL:05%10)FIG 30 IGNITION COIL (MODEL:99%04)FIG 31 IGNITION COIL (MODEL:05%10)FIG 32 HARNESS FIG 33 ENGINE CONTROL UNIT FIG 34 SENSOR FIG 35 CLAMP BRACKET (MODEL:99,00)FIG 36 CLAMP BRACKET (MODEL:01%10)FIG 37 SWIVEL BRACKET (MODEL:99,00)FIG 38 SWIVEL BRACKET (MODEL:01%10)FIG 39 GAS CYLINDER (TYPE:QH,WQH MODEL:99,00)FIG 40 GAS CYLINDER (TYPE:QH,WQH MODEL:01%10)FIG 41 POWER TRIM/TILT (TYPE:T MODEL:99,00)FIG 42 POWER TRIM/TILT (TYPE:T MODEL:01%10)FIG 43 PTT MOTOR (TYPE:T MODEL:99,00)FIG 44 PTT MOTOR (TYPE:T MODEL:01%10)FIG 45 ENGINE HOLDER FIG 46 DRIVE SHAFT HOUSING FIG 47 GEAR CASE FIG 48 SIDE COVER FIG 49 ENGINE COVER (MODEL:99%02)FIG 50 ENGINE COVER (MODEL:03%09)FIG 50A ENGINE COVER (MODEL:10)FIG 51 TILLER HANDLE (TYPE:QH,WQH,TH)FIG 52 FUEL TANK (STEEL)FIG 53 FUEL TANK (PLASTIC)FIG 54 DRAG LINK FIG 55 REMOTE CONTROL (MODEL:99%03)FIG 56 REMOTE CONTROL (MODEL:04)FIG 57 REMOTE CONTROL (MODEL:05%10)FIG 58 OPT:METER (MODEL:99%04)FIG 59 OPT:METER (MODEL:05%)FIG 60 OPT:METER (MODEL:08%)FIG 61 OPT:TRIM SENDER FIG 62 OPT:HARNESS FIG 63 OPT:HARNESS (MODEL:08%)FIG 64 OPT:SWITCH (MODEL:99%04)FIG 65 OPT:SWITCH (MODEL:05%10)FIG 66 OPT:TRIM SWITCH (MODEL:99%04)FIG 67 OPT:TOP MOUNT SINGLE (1)(MODEL:05%10)FIG 68 OPT:TOP MOUNT SINGLE (2)(MODEL:05%10)FIG 69 OPT:TOP MOUNT DUAL (1)(MODEL:05%10)FIG 70 OPT:TOP MOUNT DUAL (2)(MODEL:05%10)FIG 71 OPT:TILLER HANDLE FIG 72 OPT:GASKET SET

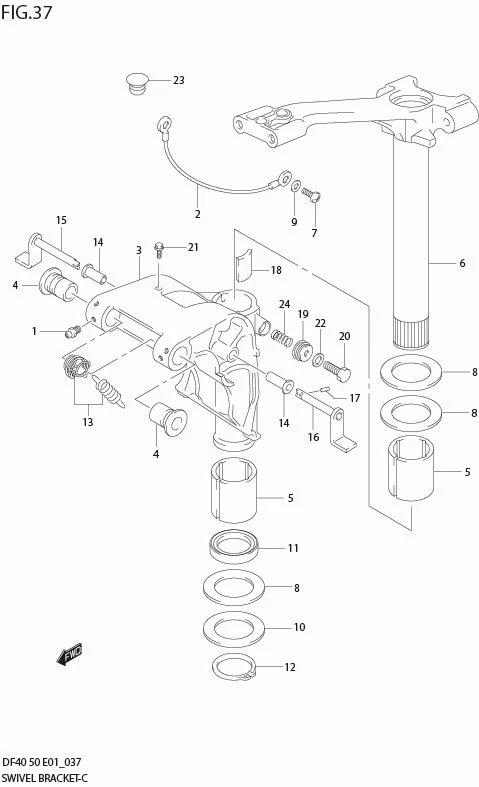

FIG 37 SWIVEL BRACKET (MODEL:99,00)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	22511-99011-000 SUB: 22511-99010-000	NIPPLE, GREASE	4	Rp39.500
2	36894-95201-000	LEAD	1	Rp110.500
3-1	43111-87J20-0EP	BRACKET, SWIVEL (BLACK)	1	Rp3.004.500	TYPE:L
3-2	43111-87J30-0EP	BRACKET, SWIVEL (BLACK)	1	Rp3.004.500	TYPE:S
4	43211-95250-000	BUSH, CLAMP SHAFT	2	Rp34.000
5	43711-97E11-000 SUB: 43711-97E00-000	BUSH, STEERING	2	Rp106.500
6-1	43750-87J01-0EP	BRACKET, STEERING (BLACK)	1	Rp2.547.000	TYPE:L
6-2	43750-87J11-0EP	BRACKET, STEERING (BLACK)	1	Rp2.547.000	TYPE:S
7	09125-05050-000 SUB: 29125-93J10-000	SCREW	2	Rp14.000	?09125-05050
8	09160-39001-000	WASHER, PILOT SHAFT	3	Rp23.000
9	DISCONTINUE SUB: 09161-05114-000	WASHER, LEAD	2	-
10	09181-39001-000	SHIM, SWIVEL BRACKET (0.3)	2	Rp31.500
11	09282-39001-000	SEAL, SWIVEL BRACKET	1	Rp53.000
12	09380-38003-000	CIRCLIP, PILOT SHAFT LOWER	1	Rp50.500
13	41230-97E10-000	SPRING ASSY, TILT LOCK	1	Rp189.500
14	41226-97E00-000	BUSH, TILT LOCK LEVER	2	Rp38.500
15	41270-97E10-000	LEVER, TILT LOCK STBD	1	Rp335.000
16	41280-97E10-000	LEVER, TILT LOCK PORT	1	Rp232.000
17	DISCONTINUE SUB: 09205-03012-000	PIN	1	-
18-1	43411-97E00-000	ADJUSTER, STEERING	1	Rp65.000
18-2	43417-89J00-000	ADJUSTER, STEERING	1	Rp110.500	DF40:032780%
19	43412-93901-000 SUB: 43412-93900-000	COVER, STEERING ADJUSTER	1	Rp30.000
20	DISCONTINUE SUB: 09100-08224-000	BOLT, STEERING ADJUSTER	1	-
21	09116-06127-000	BOLT	1	Rp27.000	DF40:032780%
22	09160-08091-000	WASHER, STEERING ADJUSTER	1	Rp11.000
23	09250-09008-000 SUB: 09250-09001-000	PLUG	1	Rp13.500	DF40:032780%
24	29440-93J00-000	SPRING, STEERING ADJUSTER	1	Rp22.500	?09440-11022
