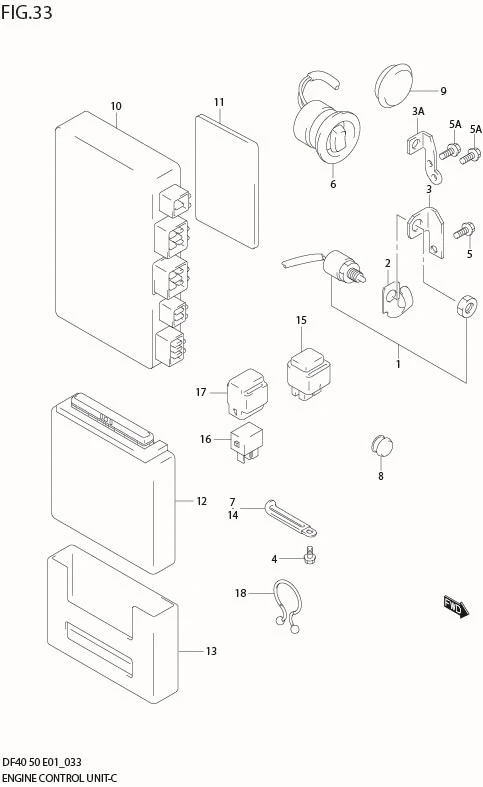

FIG 33 ENGINE CONTROL UNIT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	37721-99E12-000 SUB: 37721-99E11-000	SWITCH, NEUTRAL	1	Rp472.000	MODEL:03%10
1-1	DISCONTINUE SUB: 37721-99E00-000	SWITCH, NEUTRAL	1	-
2	DISCONTINUE SUB: 37725-95600-000	PLATE, NEUTRAL SWITCH	1	-
3	37726-87J00-000	BRACKET, NEUTRAL SWITCH	1	-
3A	DISCONTINUE SUB: 37726-87J01-000	BRACKET, NEUTRAL SWITCH	1	-	DF40T:251477%
4	02162-06127-000	BOLT	1	Rp12.500
5	02162-06167-000	BOLT	1	Rp7.500
5A	01550-06167-000	BOLT	2	Rp16.500	DF40T:251477%
6	37850-99E05-000 SUB: 37850-99E04-000	SWITCH, PTT	1	Rp736.000
7	DISCONTINUE SUB: 29404-93J10-000	CLAMP (L:65)	2	-	?09404-06432
8	09250-12004-000	CAP	1	Rp17.500	WARNING LAMP HOLE
9	09250-40002-000 SUB: 09250-40002L000	CAP	1	Rp7.000	TYPE:QH,WQH
10-2	33920-87J13-000	MODULE, ENGINE CONTROL	1	Rp10.677.500	DF50T,50QH
10-1	33920-87J03-000	MODULE, ENGINE CONTROL	1	Rp10.677.500	DF40T,40QH
11	33652-24D00-000	CUSHION, ENGINE CONTROL UNIT	1	Rp15.500	%MODEL:99,00
12-8	33920-87J93-000	MODULE, ENGINE CONTROL	1	-	DF40T,40QH
12-23	33920-87JE1-000	MODULE, ENGINE CONTROL	1	Rp21.799.500	DF50WT,50WQH
12-22	33920-87JE1-000 SUB: 33920-87JC3-000	MODULE, ENGINE CONTROL	1	Rp21.799.500	DF50WT,50WQH
12-21	33920-87JC2-000	MODULE, ENGINE CONTROL	1	-	DF50WT,50WQH
12-20	33920-87JC1-000	MODULE, ENGINE CONTROL	1	-	DF50WT,50WQH
12-19	33920-87JC0-000	MODULE, ENGINE CONTROL	1	-	DF50WT,50WQH
12-18	33920-87J51-000	MODULE, ENGINE CONTROL	1	-	DF50WT,50WQH
12-17	33920-87JD1-000	MODULE, ENGINE CONTROL	1	Rp21.799.500	DF50T,50TH,50QH
12-16	33920-87JB3-000	MODULE, ENGINE CONTROL	1	-	DF50T,50TH
12-15	33920-87JB2-000	MODULE, ENGINE CONTROL	1	-	DF50T,50TH
12-14	33920-87JB1-000	MODULE, ENGINE CONTROL	1	-	DF50T,50TH
12-13	33920-87JB0-000	MODULE, ENGINE CONTROL	1	-	DF50T,50TH
12-11	33920-87J31-000	MODULE, ENGINE CONTROL	1	-	DF50T
12-1	33920-87J21-000	MODULE, ENGINE CONTROL	1	-	DF40T,40QH
12-2	33920-87J21-000	MODULE, ENGINE CONTROL	1	-	DF40T E1,40QH
12-3	33920-87J61-000	MODULE, ENGINE CONTROL	1	-	DF40T E11
12-4	33920-87J61-000	MODULE, ENGINE CONTROL	1	-	DF40T,40QH
12-5	33920-87J90-000	MODULE, ENGINE CONTROL	1	-	DF40T,40QH
12-6	DISCONTINUE SUB: 33920-87J91-000	MODULE, ENGINE CONTROL	1	-	DF40T,40QH
12-7	33920-87J92-000	MODULE, ENGINE CONTROL	1	-	DF40T,40QH
12-9	DISCONTINUE SUB: 33920-87J94-000	MODULE, ENGINE CONTROL	1	-	DF40T,40QH
12-10	33920-87J31-000	MODULE, ENGINE CONTROL	1	-	DF50T,50QH,50WT,50WQH
12-12	33920-87J71-000	MODULE, ENGINE CONTROL	1	-	DF50T
13	33925-87J00-000	CUSHION, ENGINE CONTROL UNIT	1	Rp267.500	MODEL:01%10
14	09404-08205-000	CLAMP (L:45)	1	Rp13.500	DF40:%780305
15	DISCONTINUE SUB: 38910-92E00-000	RELAY, ECM MAIN	1	-	MODEL:99%02
16	38860-76F01-000 SUB: 38860B76F01N000	RELAY, ECM MAIN	1	Rp47.000	MODEL:03%10
17	38915-90J00-000	HOLDER, RELAY	1	Rp33.000	MODEL:03%10
18	DISCONTINUE SUB: 09408-00024-000	CLAMP, INJECTOR LEAD	1	-	DF40:780306%
