DF40 50 E01

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG 1 CYLINDER HEAD FIG 2 CYLINDER BLOCK FIG 3 OIL SEAL HOUSING (MODEL:99,00)FIG 4 OIL SEAL HOUSING (MODLE:01%10)FIG 5 CRANKSHAFT FIG 6 TIMING CHAIN FIG 7 CAMSHAFT FIG 8 INLET MANIFOLD FIG 9 SILENCER (MODEL:99,00)FIG 10 SILENCER (MODEL:01%06)FIG 10A SILENCER (DF40:680712%,DF50:681339%)FIG 11 FUEL VAPOR SEPARATOR (MODEL:99)FIG 12 FUEL VAPOR SEPARATOR (MODEL:00%10)FIG 13 FUEL INJECTOR FIG 14 FUEL PUMP FIG 15 WATER PUMP FIG 16 THERMOSTAT FIG 17 THROTTLE BODY FIG 18 OIL PUMP FIG 19 OIL PAN FIG 20 CLUTCH FIG 21 SHIFT ROD FIG 22 TRANSMISSION (*)FIG 23 TRANSMISSION (*)FIG 24 STARTING MOTOR (MODEL:99,00)FIG 25 STARTING MOTOR (MODEL:01%04)FIG 26 STARTING MOTOR (MODEL:05%10)FIG 27 MAGNETO (MODEL:99,00)FIG 28 MAGNETO (MODEL:01%04)FIG 29 MAGNETO (MODEL:05%10)FIG 30 IGNITION COIL (MODEL:99%04)FIG 31 IGNITION COIL (MODEL:05%10)FIG 32 HARNESS FIG 33 ENGINE CONTROL UNIT FIG 34 SENSOR FIG 35 CLAMP BRACKET (MODEL:99,00)FIG 36 CLAMP BRACKET (MODEL:01%10)FIG 37 SWIVEL BRACKET (MODEL:99,00)FIG 38 SWIVEL BRACKET (MODEL:01%10)FIG 39 GAS CYLINDER (TYPE:QH,WQH MODEL:99,00)FIG 40 GAS CYLINDER (TYPE:QH,WQH MODEL:01%10)FIG 41 POWER TRIM/TILT (TYPE:T MODEL:99,00)FIG 42 POWER TRIM/TILT (TYPE:T MODEL:01%10)FIG 43 PTT MOTOR (TYPE:T MODEL:99,00)FIG 44 PTT MOTOR (TYPE:T MODEL:01%10)FIG 45 ENGINE HOLDER FIG 46 DRIVE SHAFT HOUSING FIG 47 GEAR CASE FIG 48 SIDE COVER FIG 49 ENGINE COVER (MODEL:99%02)FIG 50 ENGINE COVER (MODEL:03%09)FIG 50A ENGINE COVER (MODEL:10)FIG 51 TILLER HANDLE (TYPE:QH,WQH,TH)FIG 52 FUEL TANK (STEEL)FIG 53 FUEL TANK (PLASTIC)FIG 54 DRAG LINK FIG 55 REMOTE CONTROL (MODEL:99%03)FIG 56 REMOTE CONTROL (MODEL:04)FIG 57 REMOTE CONTROL (MODEL:05%10)FIG 58 OPT:METER (MODEL:99%04)FIG 59 OPT:METER (MODEL:05%)FIG 60 OPT:METER (MODEL:08%)FIG 61 OPT:TRIM SENDER FIG 62 OPT:HARNESS FIG 63 OPT:HARNESS (MODEL:08%)FIG 64 OPT:SWITCH (MODEL:99%04)FIG 65 OPT:SWITCH (MODEL:05%10)FIG 66 OPT:TRIM SWITCH (MODEL:99%04)FIG 67 OPT:TOP MOUNT SINGLE (1)(MODEL:05%10)FIG 68 OPT:TOP MOUNT SINGLE (2)(MODEL:05%10)FIG 69 OPT:TOP MOUNT DUAL (1)(MODEL:05%10)FIG 70 OPT:TOP MOUNT DUAL (2)(MODEL:05%10)FIG 71 OPT:TILLER HANDLE FIG 72 OPT:GASKET SET

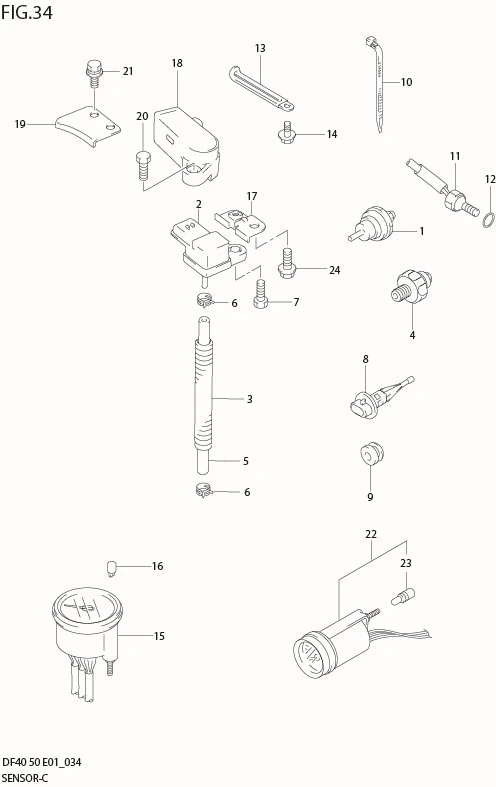

FIG 34 SENSOR

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 18133-61A01-000	FILTER, GAS	1	-
2	18590-80C40-000	SENSOR, MAP	1	Rp2.863.000
3-1	33834-99E00-000	PROTECTOR, HOSE	1	Rp27.000	P SENSOR
3-2	33834-99E00-000	PROTECTOR, HOLE	1	Rp27.000	L:90!50
4	37820-99E02-000 SUB: 37820-99E01-000	SWITCH, OIL PRESSURE	1	Rp230.000
5-1	09355-35006-601 SUB: 09355-35754-601	HOSE	1	Rp66.000	L:601!110
5-2	09355-35006-601 SUB: 09355-35754-601	HOSE	1	Rp66.000	L:601!90
6	09401-06406-000	CLIP	2	Rp16.000
7	DISCONTINUE SUB: 01500-06127-000	BOLT	1	-
8	13650-52G00-000	SENSOR, IAT	1	Rp762.500
9	13655-87J01-000 SUB: 13655-87J00-000	GROMMET, IAT SENSOR	1	Rp31.000
10-1	36990-25G00-000 SUB: 09407-14403L000	CLAMP	1	Rp13.000
10-2	09407-14407-000	CLAMP	2	Rp18.500
11-1	34830-87JA0-000 SUB: 34830-87J10-000	SENSOR, CYLINDER TEMP	2	Rp814.500	?34830-99E00
11-2	34830-87J20-000	SENSOR, CYLINDER TEMP	2	Rp526.000	MODEL:03%10
12	09280-09005-000	O RING (D:1.9 ID:8.6)	2	Rp23.000	MODEL:99%02
13	DISCONTINUE SUB: 29404-93J10-000	CLAMP	2	-	?09404-06432
14-1	02162-06127-000	BOLT	1	Rp12.500
14-2	01550-06127-000	BOLT	1	Rp17.000	MODEL:04%10
15-1	DISCONTINUE SUB: 34200-99E01-000	TACHOMETER	1	-	W/MONITOR
15-3	34200-93J14-000 SUB: 34200-93J11-000	TACHOMETER ASSY	1	Rp2.439.500	WHITE
15-2	34200-93J02-000 SUB: 34200-93J00-000	TACHOMETER ASSY	1	Rp2.161.000	BLACK
16-1	09471-12179-000	?BULB	1	Rp25.500
16-2	09471-12077-000 SUB: 09471-12077L000	?BULB	1	Rp6.000	FOR 34200-93J00
17	18595-87J00-000	BRACKET, PRESSURE SENSOR	1	Rp39.500	MODEL:01%10
18-1	34801-94700-000	SENDER, TRIM	1	Rp1.438.000	MODEL:99,00
18-2	34801-94710-000	SENDER, TRIM	1	Rp1.594.500	MODEL:01
18-3	34801-99E05-000 SUB: 34801-99E04-000	SENDER, TRIM	1	Rp2.526.500	MODEL:02%10
19	34802-95302-000	ATTACHMENT, TRIM SENDER	1	Rp78.000	FOR 34801-94700
20	09100-06113-000	BOLT (6X16)	2	Rp11.500
21	09118-06095-000	BOLT (6X12)	2	Rp25.500	FOR 34801-94700
22-1	DISCONTINUE SUB: 34800-92E00-000	METER, TRIM	1	-
22-2	DISCONTINUE SUB: 34800-90J02-000	METER, TRIM	1	-	MODEL:02%04
22-3	34800-93J02-000 SUB: 34800-93J00-000	METER, TRIM	1	Rp1.018.000	BLACK
22-4	34800-93J13-000 SUB: 34800-93J11-000	METER, TRIM	1	Rp1.156.000	WHITE
23-1	09471-12180-000	?BULB	1	Rp25.000
23-2	DISCONTINUE SUB: 09471B12103N000	?BULB	1	-	FOR 34800-93J00
24	01550-06127-000	BOLT	1	Rp17.000
