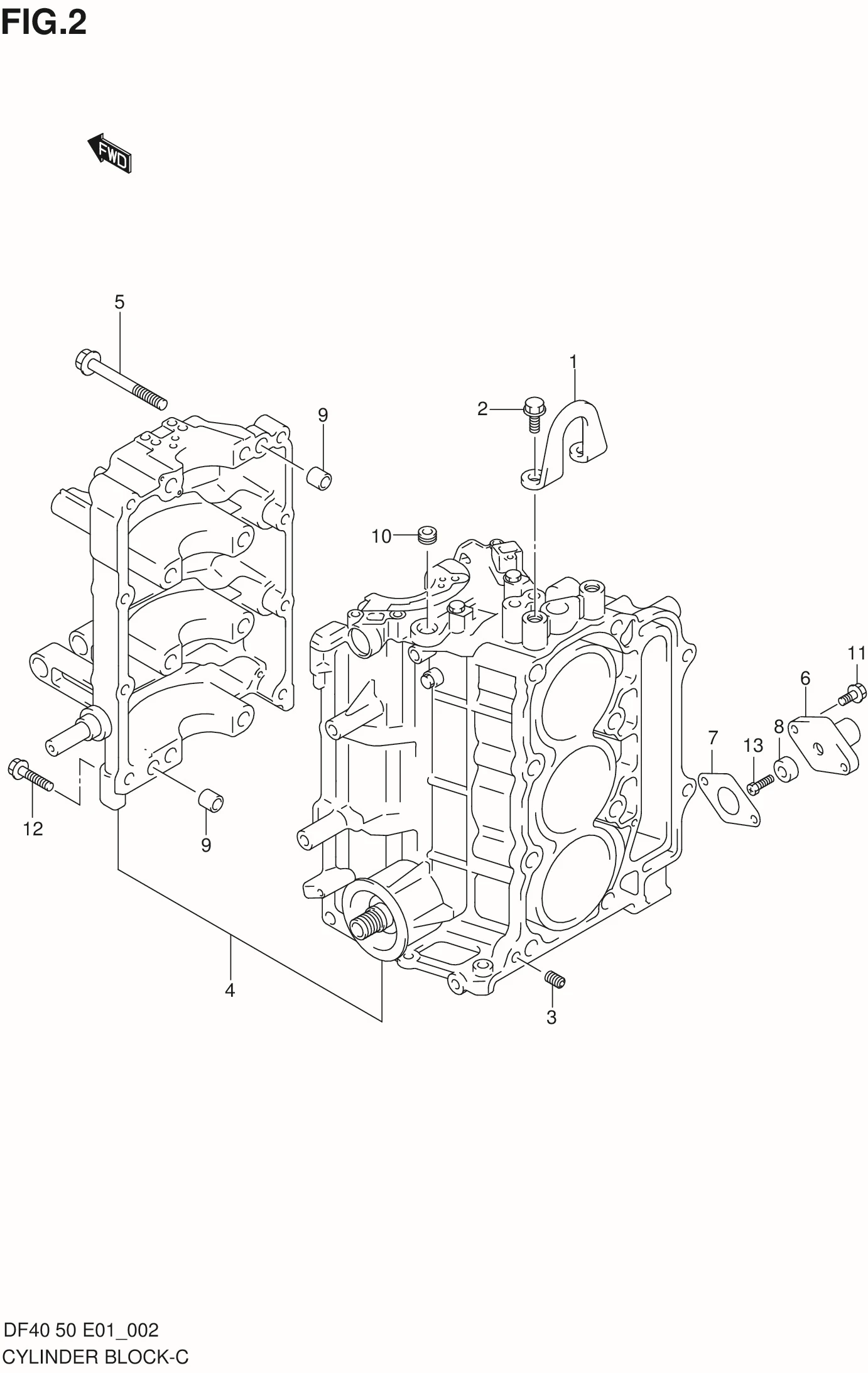

FIG 2 CYLINDER BLOCK

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	11291-87J00-000	HOOK, ENGINE	1	Rp102.000	MODEL:05%10
1-1	11291-87J00-019	HOOK, ENGINE (BLACK)	1	Rp52.000
2	01550-08207-000	BOLT	2	Rp19.000
3	11112-73010-000	PLUG, OIL VENTURI	1	Rp24.000	?11112-73002
4-1	11300-87J01-019	BLOCK, CYLINDER (BLACK)	1	Rp12.503.000	?11300-87J00-019
4-2	DISCONTINUE SUB: 11300-87J10-019	BLOCK, CYLINDER (BLACK)	1	-	MODEL:03
4-3	DISCONTINUE SUB: 11301-87J10-000	BLOCK SET, CYLINDER	1	-	MODEL:03
4-4	11301-87J20-000	BLOCK SET, CYLINDER	1	Rp12.503.000	MODEL:04
4-5	11301-87J40-000 SUB: 11301-87J30-000	BLOCK SET, CYLINDER	1	Rp25.448.500	MODEL:05%09
4-6	11301-87J40-000	BLOCK SET, CYLINDER	1	Rp25.448.500	MODEL:10
5-4	11117-89J20-000	?BOLT (10X98)	8	Rp48.500	MODEL:10
5-3	11117-89J20-000 SUB: 11117-89J10-000	?BOLT (10X98)	8	Rp48.500	MODEL:04%09
5-2	09116-10127-000	?BOLT (10X98)	8	-	DF40:151299%
5-1	11117-87J01-000	?BOLT	8	-	?11117-87J00
6-1	11261-87E10-0EP	?COVER, PROTECTION (BLACK)	1	Rp347.500
6-2	11261-87E10-000	?COVER, PROTECTION	1	Rp116.500	MODEL:04%10
7	11265-87E10-000	?GASKET, PROTECTION ANODE	1	Rp34.000
8	55321-87J01-000 SUB: 55321-87J00-000	?ZINC, PROTECTION	1	Rp79.500
9	09206-13019-000	?PIN, KNOCK	4	Rp15.000
10	DISCONTINUE SUB: 09246-08004-000	?PLUG	2	-
11	01550-06207-000 SUB: 01550B06207N000	?BOLT	2	Rp3.000
12-1	01550-08407-000	?BOLT	8	Rp24.000
12-2	01550-08407-000 SUB: 09116-08124-000	?BOLT (W/WASHER)	8	Rp24.000	MODEL:04%10
12-3	01550-08407-000	?BOLT	8	Rp24.000	DF40:010158%
13-1	DISCONTINUE SUB: 09128-06021-000	?BOLT	1	-
13-2	09103-06281-000	?BOLT	1	Rp20.500	MODEL:06%10
