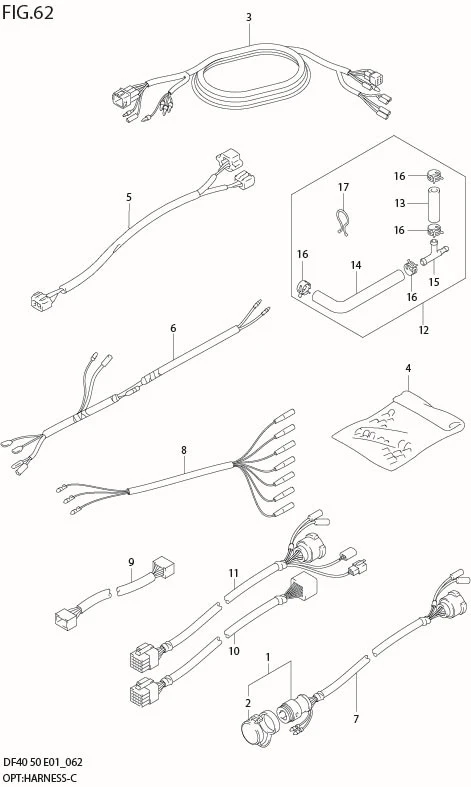

FIG 62 OPT:HARNESS

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	36620-95302-000	HARNESS ASSY, EXTENSION (S)	1	Rp1.027.000	L:2000 MODEL:99%04
1-1	36620-87D20-000	HARNESS ASSY, EXTENSION (L)	1	Rp1.420.500	L:5000 MODEL:99%04
2	36631-94300-000	?CAP	1	Rp32.000
3-1	36660-94400-000	WIRE, SENDER EXTENSION (L)	1	Rp915.500	L:6500 MODEL:99%04
3-2	36660-94480-000	WIRE, SENDER EXTENSION (S)	1	Rp610.000	L:2000 MODEL:99%04
3-3	36660-94480-000	WIRE, MONITOR GAUGE EXTENSION	1	Rp610.000	TYPE:QH,WQH,TH
4	36990-87D00-000	TERMINAL & SLEEVE SET	1	Rp126.500
5	36820-95560-000	LEAD, NEUTRAL SWITCH	1	Rp43.500	L:700 MODEL:99,00
6	34109-94500-000	LEAD, METER EXTENSION	1	Rp216.000	L:1600 MODEL:99,00
7	36620-92E00-000	HARNESS, REMOCON EXTENSION	1	Rp2.329.500	L:7000 MODEL:99%04
8	36630-92E00-000	WIRE ASSY, INSTRUMENT	1	Rp492.000	TYPE:QH,WQH,TH
9	36682-92E00-000	WIRE, MONITOR GAUGE EXTENSION	1	Rp879.500	TYPE:QH,WQH,TH
10-1	36620-93J12-000 SUB: 36620-93J10-000	WIRE ASSY, REMOCON EXTENSION	1	Rp1.057.500	L:2000 MODEL:05%10
10-2	36620-93J42-000 SUB: 36620-93J40-000	WIRE ASSY, REMOCON EXTENSION	1	Rp1.324.500	L:3000 MODEL:05%10
11-1	36620-93J20-000	WIRE ASSY, REMOCON ADAPTER	1	Rp1.190.000	L:2000 MODEL:04
11-2	36620-93J32-000 SUB: 36620-93J30-000	WIRE ASSY, REMOCON ADAPTER	1	Rp1.162.500	L:2000 MODEL:05%10
12	34660-87J00-000	KIT, WATER PRESS GAUGE	1	Rp145.000	MODEL:04%10
13	09352-50006-600 SUB: 09352-50903-600	?HOSE, WATER INSP	1	Rp46.000	L:600!70
14	09352-50006-600 SUB: 09352-50903-600	?HOSE, WATER INSP	1	Rp46.000	L:600!250
15	09367-06006-000	?3 WAY	1	Rp23.500
16-1	09401-08411-000	?CLIP	4	Rp12.500
16-2	09401-08413-000	?CLIP	4	Rp19.500	MODEL:06%10
17	DISCONTINUE SUB: 09408-00024-000	?CLAMP	1	-
