DF40 50 E01

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG 1 CYLINDER HEAD FIG 2 CYLINDER BLOCK FIG 3 OIL SEAL HOUSING (MODEL:99,00)FIG 4 OIL SEAL HOUSING (MODLE:01%10)FIG 5 CRANKSHAFT FIG 6 TIMING CHAIN FIG 7 CAMSHAFT FIG 8 INLET MANIFOLD FIG 9 SILENCER (MODEL:99,00)FIG 10 SILENCER (MODEL:01%06)FIG 10A SILENCER (DF40:680712%,DF50:681339%)FIG 11 FUEL VAPOR SEPARATOR (MODEL:99)FIG 12 FUEL VAPOR SEPARATOR (MODEL:00%10)FIG 13 FUEL INJECTOR FIG 14 FUEL PUMP FIG 15 WATER PUMP FIG 16 THERMOSTAT FIG 17 THROTTLE BODY FIG 18 OIL PUMP FIG 19 OIL PAN FIG 20 CLUTCH FIG 21 SHIFT ROD FIG 22 TRANSMISSION (*)FIG 23 TRANSMISSION (*)FIG 24 STARTING MOTOR (MODEL:99,00)FIG 25 STARTING MOTOR (MODEL:01%04)FIG 26 STARTING MOTOR (MODEL:05%10)FIG 27 MAGNETO (MODEL:99,00)FIG 28 MAGNETO (MODEL:01%04)FIG 29 MAGNETO (MODEL:05%10)FIG 30 IGNITION COIL (MODEL:99%04)FIG 31 IGNITION COIL (MODEL:05%10)FIG 32 HARNESS FIG 33 ENGINE CONTROL UNIT FIG 34 SENSOR FIG 35 CLAMP BRACKET (MODEL:99,00)FIG 36 CLAMP BRACKET (MODEL:01%10)FIG 37 SWIVEL BRACKET (MODEL:99,00)FIG 38 SWIVEL BRACKET (MODEL:01%10)FIG 39 GAS CYLINDER (TYPE:QH,WQH MODEL:99,00)FIG 40 GAS CYLINDER (TYPE:QH,WQH MODEL:01%10)FIG 41 POWER TRIM/TILT (TYPE:T MODEL:99,00)FIG 42 POWER TRIM/TILT (TYPE:T MODEL:01%10)FIG 43 PTT MOTOR (TYPE:T MODEL:99,00)FIG 44 PTT MOTOR (TYPE:T MODEL:01%10)FIG 45 ENGINE HOLDER FIG 46 DRIVE SHAFT HOUSING FIG 47 GEAR CASE FIG 48 SIDE COVER FIG 49 ENGINE COVER (MODEL:99%02)FIG 50 ENGINE COVER (MODEL:03%09)FIG 50A ENGINE COVER (MODEL:10)FIG 51 TILLER HANDLE (TYPE:QH,WQH,TH)FIG 52 FUEL TANK (STEEL)FIG 53 FUEL TANK (PLASTIC)FIG 54 DRAG LINK FIG 55 REMOTE CONTROL (MODEL:99%03)FIG 56 REMOTE CONTROL (MODEL:04)FIG 57 REMOTE CONTROL (MODEL:05%10)FIG 58 OPT:METER (MODEL:99%04)FIG 59 OPT:METER (MODEL:05%)FIG 60 OPT:METER (MODEL:08%)FIG 61 OPT:TRIM SENDER FIG 62 OPT:HARNESS FIG 63 OPT:HARNESS (MODEL:08%)FIG 64 OPT:SWITCH (MODEL:99%04)FIG 65 OPT:SWITCH (MODEL:05%10)FIG 66 OPT:TRIM SWITCH (MODEL:99%04)FIG 67 OPT:TOP MOUNT SINGLE (1)(MODEL:05%10)FIG 68 OPT:TOP MOUNT SINGLE (2)(MODEL:05%10)FIG 69 OPT:TOP MOUNT DUAL (1)(MODEL:05%10)FIG 70 OPT:TOP MOUNT DUAL (2)(MODEL:05%10)FIG 71 OPT:TILLER HANDLE FIG 72 OPT:GASKET SET

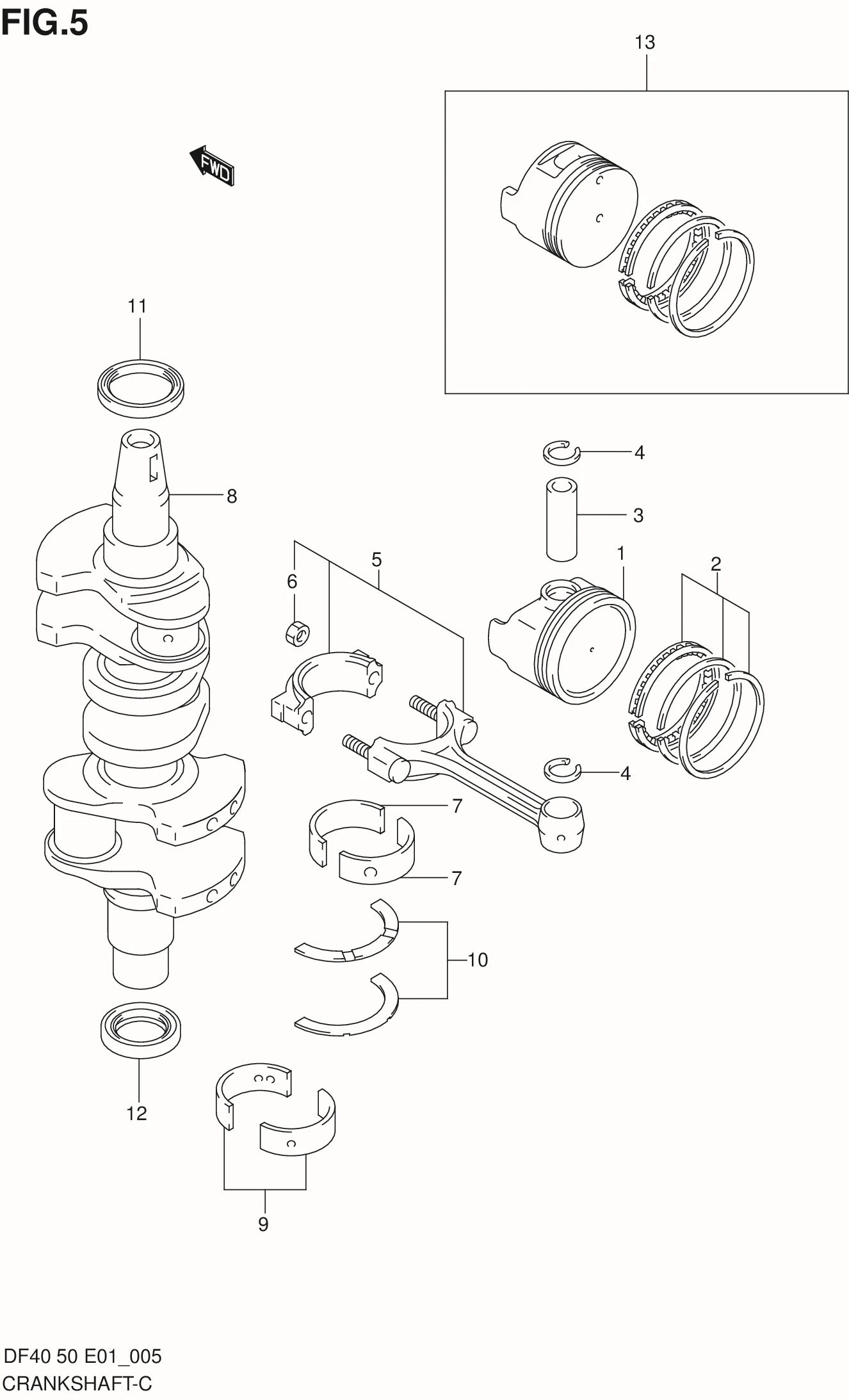

FIG 5 CRANKSHAFT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 12111-87J04-000	PISTON	3	-
2-1	12140-87J01-000	RING SET, PISTON	3	Rp534.000
2-2	12140-87J10-000	RING SET, PISTON	3	Rp928.000	DF50WT,50WQH
3	12151-87J00-000	PIN, PISTON	3	Rp120.500
4	09381-18005-000	CLIP	6	Rp17.500
5	DISCONTINUE SUB: 12160-87J00-000	CONNROD ASSY	3	-
6	09159M08033-000 SUB: 09159-08033-000	?NUT	6	Rp14.000
7	12181-87J00-0A0	BEARING, CONNROD	6	Rp150.500
8-3	12220-87J10-000	CRANKSHAFT	1	Rp11.714.000	MODEL:05%10
8-2	DISCONTINUE SUB: 12220-87J03-000	CRANKSHAFT	1	-	DF40:421179%
8-1	DISCONTINUE SUB: 12220-87J02-000	CRANKSHAFT	1	-	!12220-87J03
9-1	12340-75FA0-0A0	BEARING SET, CRANKSHAFT	4	Rp167.500	GREEN
9-2	12340-75FA0-0B0	BEARING SET, CRANKSHAFT	4	Rp167.500	BLACK
9-3	12340-75F00-0C0	BEARING SET, CRANKSHAFT	4	Rp167.500	N/PAINT
9-4	12340-75F00-0D0	BEARING SET, CRANKSHAFT	4	Rp197.500	YELLOW
9-5	DISCONTINUE SUB: 12340-75F00-0E0	BEARING SET, CRANKSHAFT	4	-	BLUE
10	12300-60840-000 SUB: 12300-82820-000	BEARING SET, THRUST	1	Rp120.000
11	09283-35047-000	SEAL, OIL	1	Rp114.500	UPPER
12	12281-87J00-000	SEAL, OIL	1	Rp107.500	UNDER
13-1	12100-87J02-000	PISTON SET	1	Rp1.177.500	OPT
13-2	12100-87J03-050	PISTON SET (OS:0.50)	1	Rp1.177.500	OPT
