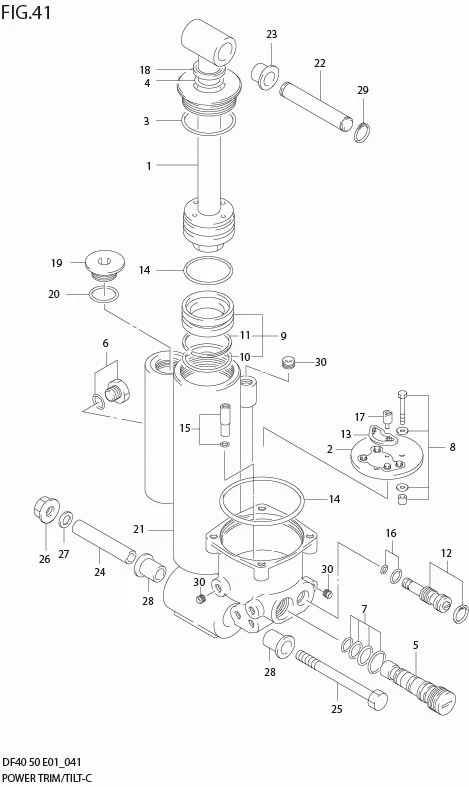

FIG 41 POWER TRIM/TILT (TYPE:T MODEL:99,00)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	48601-97E01-000	PISTON ROD	1	Rp3.852.500
2	DISCONTINUE SUB: 48510-97E00-000	PUMP ASSY, GEAR	1	-
3	48633-97E00-000	O RING, CYLINDER HEAD	1	Rp29.500
4	48634-97E00-000	O RING, CYLINDER HEAD	1	Rp17.500
5	48530-87J00-000	VALVE, MAIN CHECK	1	Rp749.000
6	48572-97E00-000	PLUG SET, RESERVOIR	1	Rp113.000
7	48536-97E01-000	O RING, MAIN CHECK	1	Rp79.500
8	48541-97E01-000	BOLT SET	1	Rp74.500
9	48650-97E00-000	PISTON, FREE	1	Rp472.500
10	48405-87D00-000	?O RING	1	Rp65.500
11	48615-97E00-000	?RING SET, PISTON	1	Rp81.000
12	48550-87J00-000	VALVE, MANUAL	1	Rp598.000
13	48582-97E01-000	FILTER, PUMP	1	Rp144.000
14	48505-87D10-000	O RING SET	1	Rp167.500
15	48830-97E01-000	VALVE, DOWN PRESSURE	1	Rp166.500
16	48557-97E00-000	O RING SET, MANUAL VALVE	1	Rp21.500
17	48583-87J00-000	DRIVE, JOINT	1	Rp105.500
18	48632-97E00-000	OIL SEAL	1	Rp57.500
19	48575-97E01-000	PLUG, RESERVOIR	1	Rp116.000
20	48576-97E01-000	O RING	1	Rp31.500
21	48641-97E01-0EP	MANIFOLD, PTT	1	Rp6.609.000
22	48321-97E01-000	SHAFT, TILT CYLINDER UPPER	1	Rp126.000	?48321-97E00
23	48325-97E00-000	BUSH, TILT CYLINDER UPPER	2	Rp28.000
24	48121-97E00-000	SHAFT, TILT CYLINDER LOWER	1	Rp198.000
25	DISCONTINUE SUB: 09100-10190-000	BOLT (10X145)	1	-
26	09159-10050-000	NUT	1	Rp23.500
27	09160-10082-000	WASHER (10.5X19X2.0)	1	Rp12.000
28	DISCONTINUE SUB: 09307-18002-000	BUSH	2	-
29	09380-12002-000	RING, SNAP	2	Rp12.500
30	48690-97E00-000	PLUG SET, MANIFOLD	1	Rp163.500
