DF40 50 E01

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG 1 CYLINDER HEAD FIG 2 CYLINDER BLOCK FIG 3 OIL SEAL HOUSING (MODEL:99,00)FIG 4 OIL SEAL HOUSING (MODLE:01%10)FIG 5 CRANKSHAFT FIG 6 TIMING CHAIN FIG 7 CAMSHAFT FIG 8 INLET MANIFOLD FIG 9 SILENCER (MODEL:99,00)FIG 10 SILENCER (MODEL:01%06)FIG 10A SILENCER (DF40:680712%,DF50:681339%)FIG 11 FUEL VAPOR SEPARATOR (MODEL:99)FIG 12 FUEL VAPOR SEPARATOR (MODEL:00%10)FIG 13 FUEL INJECTOR FIG 14 FUEL PUMP FIG 15 WATER PUMP FIG 16 THERMOSTAT FIG 17 THROTTLE BODY FIG 18 OIL PUMP FIG 19 OIL PAN FIG 20 CLUTCH FIG 21 SHIFT ROD FIG 22 TRANSMISSION (*)FIG 23 TRANSMISSION (*)FIG 24 STARTING MOTOR (MODEL:99,00)FIG 25 STARTING MOTOR (MODEL:01%04)FIG 26 STARTING MOTOR (MODEL:05%10)FIG 27 MAGNETO (MODEL:99,00)FIG 28 MAGNETO (MODEL:01%04)FIG 29 MAGNETO (MODEL:05%10)FIG 30 IGNITION COIL (MODEL:99%04)FIG 31 IGNITION COIL (MODEL:05%10)FIG 32 HARNESS FIG 33 ENGINE CONTROL UNIT FIG 34 SENSOR FIG 35 CLAMP BRACKET (MODEL:99,00)FIG 36 CLAMP BRACKET (MODEL:01%10)FIG 37 SWIVEL BRACKET (MODEL:99,00)FIG 38 SWIVEL BRACKET (MODEL:01%10)FIG 39 GAS CYLINDER (TYPE:QH,WQH MODEL:99,00)FIG 40 GAS CYLINDER (TYPE:QH,WQH MODEL:01%10)FIG 41 POWER TRIM/TILT (TYPE:T MODEL:99,00)FIG 42 POWER TRIM/TILT (TYPE:T MODEL:01%10)FIG 43 PTT MOTOR (TYPE:T MODEL:99,00)FIG 44 PTT MOTOR (TYPE:T MODEL:01%10)FIG 45 ENGINE HOLDER FIG 46 DRIVE SHAFT HOUSING FIG 47 GEAR CASE FIG 48 SIDE COVER FIG 49 ENGINE COVER (MODEL:99%02)FIG 50 ENGINE COVER (MODEL:03%09)FIG 50A ENGINE COVER (MODEL:10)FIG 51 TILLER HANDLE (TYPE:QH,WQH,TH)FIG 52 FUEL TANK (STEEL)FIG 53 FUEL TANK (PLASTIC)FIG 54 DRAG LINK FIG 55 REMOTE CONTROL (MODEL:99%03)FIG 56 REMOTE CONTROL (MODEL:04)FIG 57 REMOTE CONTROL (MODEL:05%10)FIG 58 OPT:METER (MODEL:99%04)FIG 59 OPT:METER (MODEL:05%)FIG 60 OPT:METER (MODEL:08%)FIG 61 OPT:TRIM SENDER FIG 62 OPT:HARNESS FIG 63 OPT:HARNESS (MODEL:08%)FIG 64 OPT:SWITCH (MODEL:99%04)FIG 65 OPT:SWITCH (MODEL:05%10)FIG 66 OPT:TRIM SWITCH (MODEL:99%04)FIG 67 OPT:TOP MOUNT SINGLE (1)(MODEL:05%10)FIG 68 OPT:TOP MOUNT SINGLE (2)(MODEL:05%10)FIG 69 OPT:TOP MOUNT DUAL (1)(MODEL:05%10)FIG 70 OPT:TOP MOUNT DUAL (2)(MODEL:05%10)FIG 71 OPT:TILLER HANDLE FIG 72 OPT:GASKET SET

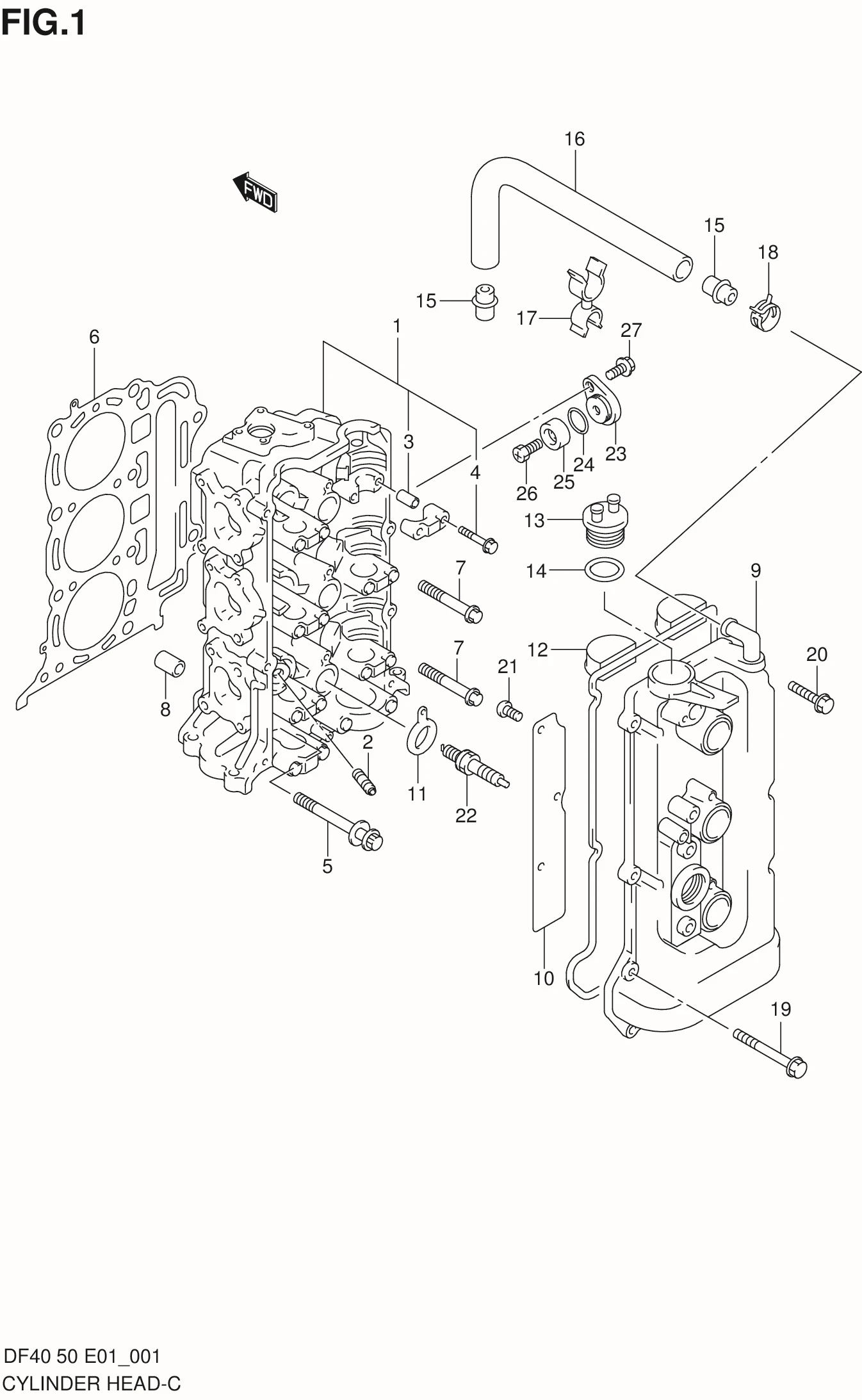

FIG 1 CYLINDER HEAD

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	11100-87J10-000	HEAD, CYLINDER	1	-	MODEL:04
1-1	11100-87J02-019	HEAD, CYLINDER (BLACK)	1	-	?11110-87J01-019
1-3	11100-87J23-000	HEAD, CYLINDER	1	Rp21.480.500	MODEL:05%10
2	11115-73G01-001	?GUIDE, VALVE	12	Rp194.500
3	09206-08001-000 SUB: 09206B08001N000	?PIN	14	Rp5.500
4-1	DISCONTINUE SUB: 11128-87J00-000	?BOLT, CAMSHAFT HOUSING	17	-
4-2	11128-90J00-000	?BOLT, CAMSHAFT HOUSING	17	Rp24.000	DF40:881818%
4-3	09103-06266-000	?BOLT, CAMSHAFT HOUSING	17	Rp14.000	DF40:011310%
5	DISCONTINUE SUB: 11119-87J00-000	BOLT, CYLINDER HEAD	8	-
6	11141-87J02-000	GASKET, CYLINDER HEAD	1	Rp704.500	?11141-87J00
7-1	11116-87J10-000	BOLT, CYLINDER HEAD	2	Rp25.500
7-2	11116-87J20-000	BOLT, CYLINDER HEAD	2	Rp25.000	MODEL:04%09
7-3	11116-87J30-000	BOLT, CYLINDER HEAD	2	Rp58.000	MODEL:10
8	04211M13189-000 SUB: 04211-13189-000	PIN, DOWEL	2	Rp9.000
9-1	DISCONTINUE SUB: 11170-87J00-019	COVER, CYLINDER HEAD (BLACK)	1	-
9-2	11170-87J00-000	COVER, CYLINDER HEAD	1	Rp3.069.500	MODEL:04%10
10	11173-87J01-000	PLATE, BREATHER	1	Rp72.500	?11173-87J00
11	11179-73G00-000	GASKET, SPARK PLUG HOLE	3	Rp115.500
12	11189-87J00-000	GASKET, CYLINDER HEAD COVER	1	Rp282.000
13	11382-99E00-000	CAP, OIL FILLER	1	Rp79.000
14	09280-26006-000	O RING (D:3.1,ID:26.4)	1	Rp16.500
15	11176-87J00-000	JET, BREATHER HOSE	2	Rp27.000
16	11174-87J00-000	HOSE, BREATHER	1	-
17	09408-00140-000	CLAMP	1	Rp37.500
18	09401-20409-000	CLAMP	1	Rp27.000
19	01547-0645A-000 SUB: 01547-06457-000	BOLT	3	Rp7.000
20	01547-06257-000	BOLT	9	Rp14.000
21	02142-0612A-000 SUB: 02142B0612AN000	SCREW	3	Rp4.000
22	09482-00446-000	SPARK PLUG (NGK DCPR6E)	3	Rp119.500
23	11261-93J00-000	COVER, PROTECTION ANODE	2	Rp132.500	MODEL:05%10
24	09280-22019-000	O RING, PROTECTION COVER	2	Rp15.500	MODEL:05%10
25	55321-87J01-000 SUB: 55321-87J00-000	ANODE, PROTECTION	2	Rp79.500	MODEL:05%10
26-1	DISCONTINUE SUB: 09128-06021-000	BOLT, PROTECTION ANODE	2	-	MODEL:05
26-2	09103-06281-000	BOLT, PROTECTION ANODE	2	Rp20.500	MODEL:06%10
27	01550-08207-000	BOLT, PROTECTION COVER	2	Rp19.000	MODEL:05%10
