DF40 50 E01

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG 1 CYLINDER HEAD FIG 2 CYLINDER BLOCK FIG 3 OIL SEAL HOUSING (MODEL:99,00)FIG 4 OIL SEAL HOUSING (MODLE:01%10)FIG 5 CRANKSHAFT FIG 6 TIMING CHAIN FIG 7 CAMSHAFT FIG 8 INLET MANIFOLD FIG 9 SILENCER (MODEL:99,00)FIG 10 SILENCER (MODEL:01%06)FIG 10A SILENCER (DF40:680712%,DF50:681339%)FIG 11 FUEL VAPOR SEPARATOR (MODEL:99)FIG 12 FUEL VAPOR SEPARATOR (MODEL:00%10)FIG 13 FUEL INJECTOR FIG 14 FUEL PUMP FIG 15 WATER PUMP FIG 16 THERMOSTAT FIG 17 THROTTLE BODY FIG 18 OIL PUMP FIG 19 OIL PAN FIG 20 CLUTCH FIG 21 SHIFT ROD FIG 22 TRANSMISSION (*)FIG 23 TRANSMISSION (*)FIG 24 STARTING MOTOR (MODEL:99,00)FIG 25 STARTING MOTOR (MODEL:01%04)FIG 26 STARTING MOTOR (MODEL:05%10)FIG 27 MAGNETO (MODEL:99,00)FIG 28 MAGNETO (MODEL:01%04)FIG 29 MAGNETO (MODEL:05%10)FIG 30 IGNITION COIL (MODEL:99%04)FIG 31 IGNITION COIL (MODEL:05%10)FIG 32 HARNESS FIG 33 ENGINE CONTROL UNIT FIG 34 SENSOR FIG 35 CLAMP BRACKET (MODEL:99,00)FIG 36 CLAMP BRACKET (MODEL:01%10)FIG 37 SWIVEL BRACKET (MODEL:99,00)FIG 38 SWIVEL BRACKET (MODEL:01%10)FIG 39 GAS CYLINDER (TYPE:QH,WQH MODEL:99,00)FIG 40 GAS CYLINDER (TYPE:QH,WQH MODEL:01%10)FIG 41 POWER TRIM/TILT (TYPE:T MODEL:99,00)FIG 42 POWER TRIM/TILT (TYPE:T MODEL:01%10)FIG 43 PTT MOTOR (TYPE:T MODEL:99,00)FIG 44 PTT MOTOR (TYPE:T MODEL:01%10)FIG 45 ENGINE HOLDER FIG 46 DRIVE SHAFT HOUSING FIG 47 GEAR CASE FIG 48 SIDE COVER FIG 49 ENGINE COVER (MODEL:99%02)FIG 50 ENGINE COVER (MODEL:03%09)FIG 50A ENGINE COVER (MODEL:10)FIG 51 TILLER HANDLE (TYPE:QH,WQH,TH)FIG 52 FUEL TANK (STEEL)FIG 53 FUEL TANK (PLASTIC)FIG 54 DRAG LINK FIG 55 REMOTE CONTROL (MODEL:99%03)FIG 56 REMOTE CONTROL (MODEL:04)FIG 57 REMOTE CONTROL (MODEL:05%10)FIG 58 OPT:METER (MODEL:99%04)FIG 59 OPT:METER (MODEL:05%)FIG 60 OPT:METER (MODEL:08%)FIG 61 OPT:TRIM SENDER FIG 62 OPT:HARNESS FIG 63 OPT:HARNESS (MODEL:08%)FIG 64 OPT:SWITCH (MODEL:99%04)FIG 65 OPT:SWITCH (MODEL:05%10)FIG 66 OPT:TRIM SWITCH (MODEL:99%04)FIG 67 OPT:TOP MOUNT SINGLE (1)(MODEL:05%10)FIG 68 OPT:TOP MOUNT SINGLE (2)(MODEL:05%10)FIG 69 OPT:TOP MOUNT DUAL (1)(MODEL:05%10)FIG 70 OPT:TOP MOUNT DUAL (2)(MODEL:05%10)FIG 71 OPT:TILLER HANDLE FIG 72 OPT:GASKET SET

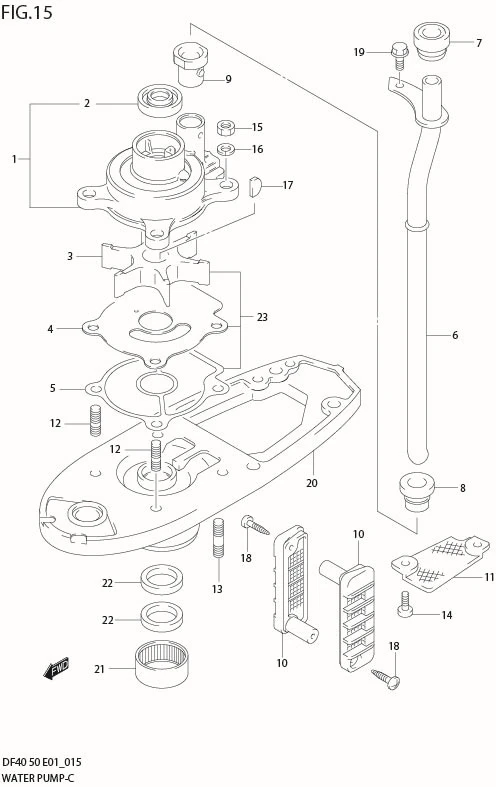

FIG 15 WATER PUMP

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	17410-92L00-000 SUB: 17411-94421-000	CASE, WATER PUMP	1	Rp1.101.000	DF40:422328%
1-3	DISCONTINUE SUB: 17410-94431-000	CASE, WATER PUMP	1	-	DF50WT,50WQH
1-1	17410-95D11-000	CASE, WATER PUMP	1	Rp675.000	DF40T,40QH
2	DISCONTINUE SUB: 09282-17007-000	?SEAL, WATER PUMP CASE	1	-	DF40:%422327
3	17461-96312-000	IMPELLER, WATER PUMP	1	Rp253.000	?17461-96310
4-1	17471-94401-000	PANEL, PUMP CASE UNDER	1	Rp84.000	DF40T,40QH
4-2	17471-92L00-000 SUB: 17471-94411-000	PANEL, PUMP CASE UNDER	1	Rp514.000	DF50WT,50WQH
5	17472-96304-000 SUB: 17472-96303-000	GASKET, PUMP CASE UNDER	1	Rp24.000
6-1	17560-87J11-000	TUBE, WATER (S)	1	Rp435.500
6-2	17560-87J01-000	TUBE, WATER (L)	1	Rp473.000
6-3	17560-87J21-000	TUBE, WATER (X)	1	Rp507.500
7	17563-94400-000	GROMMET, WATER TUBE UPPER	1	Rp37.000
8	17565-94400-000	GROMMET, WATER TUBE MIDDLE	1	Rp40.500	TYPE:L,X
9	17566-94401-000 SUB: 17566-94400-000	GROMMET, WATER TUBE LOWER	1	Rp30.500
10	17631-96320-000	FILTER, WATER	2	Rp64.500
11-2	17635-87E10-000	FILTER, SUB WATER	1	Rp784.500	OPT
11-1	17635-87E00-000	FILTER, SUB WATER	1	Rp39.000
12	09108-06060-000	BOLT, STUD (6X18)	2	Rp17.500
13	09108-06061-000	BOLT, STUD (6X35)	2	Rp42.000
14	09125-05046-000	SCREW (5X12)	2	Rp14.000
15	29141-93J00-000	NUT	4	Rp18.500	?09140-06020
16	29162-93J00-000	LOCK WASHER	4	Rp11.500	?09162-06006
17	09420-04006-000	KEY	1	Rp42.000
18	03142-04309-000	SCREW	2	Rp17.500
19	09116-06094-000	BOLT (6X15)	1	Rp19.000
20-1	56130-94431-0EP SUB: 56130-94413-0EP	HOUSING, DRIVE SFT BRG (BLACK)	1	Rp1.798.000	MODEL:99%04
20-2	56130-87J12-0EP SUB: 56130-87J00-0EP	HOUSING, DRIVE SFT BRG (BLACK)	1	Rp1.641.000	DF40:510001%510209
20-3	56130-94431-0EP SUB: 56130-94430-0EP	HOUSING, DRIVE SFT BRG (BLACK)	1	Rp1.798.000	DF40:510210%
21-1	09263-25025-000	?BEARING	1	Rp242.500	MODEL:99%04
21-2	09263-25025-000	?BEARING	1	Rp242.500	DF40:510210%
22	09282-17005-000	?SEAL, OIL	2	Rp54.500
23	17400-96353-000	WATER PUMP REPAIR KIT	1	Rp233.500	OPT
