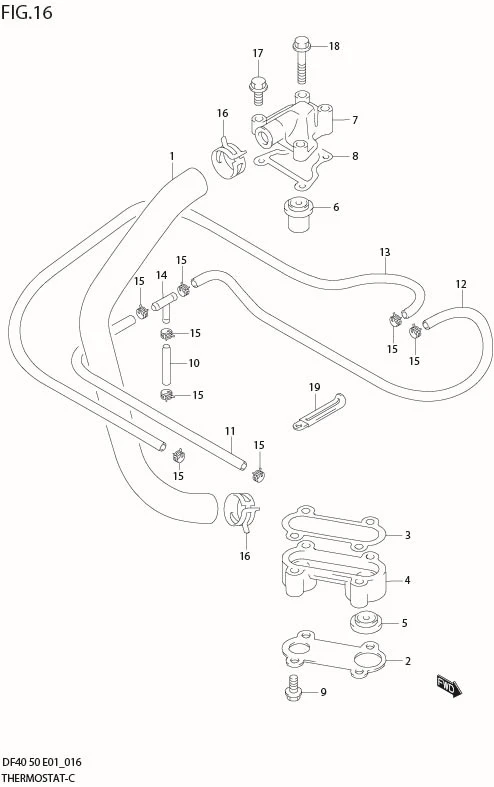

FIG 16 THERMOSTAT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	11196-87J10-000	HOSE, WATER RETURN	1	Rp239.500	MODEL:00%10
1-1	DISCONTINUE SUB: 11196-87J00-000	HOSE, WATER RETURN	1	-
2	17615-87J00-000	COVER, WATER PRESS VALVE	1	Rp138.000
3	17616-87J00-000	GASKET, PRESS VALVE COVER	1	Rp52.500
4	17621-87J00-000	CASE, WATER PRESS VALVE	1	Rp119.500
5	17660-99E01-000	VALVE, WATER PRESS	1	Rp142.500	?17660-99E00
6-1	17670-93964-000 SUB: 17670-93962-000	THERMOSTAT (50áC)	1	Rp508.000	MODEL:99
6-2	17670-94404-000 SUB: 17670-94402-000	THERMOSTAT (60áC)	1	Rp520.000	MODEL:00%10
6-3	17670-94404-000 SUB: 17670-94402-000	THERMOSTAT (60áC)	1	Rp520.000	OPT MODEL:99%10
6-4	17670-87J01-000 SUB: 17670-87J00-000	THERMOSTAT (72áC)	1	Rp432.500	OPT MODEL:01%10
7-1	17681-87J01-019	COVER, THERMOSTAT (BLACK)	1	Rp173.500
7-2	17681-87J01-000	COVER, THERMOSTAT	1	Rp1.110.500	MODEL:04%10
8	17685-87D10-000	GASKET, THERMOSTAT COVER	1	Rp37.000
9	09116-06175-000	BOLT (6X42)	4	Rp36.500
10	09352-50006-600 SUB: 09352-50903-600	HOSE (3 WAY TO PAN)	1	Rp46.000	L:600!80
11-1	09352-50006-600 SUB: 09352-50903-600	HOSE (HOLDER TO 3 WAY)	1	Rp46.000	L:600!250
11-2	09352-50006-600 SUB: 09352-50903-600	HOSE (HOLDER TO 3 WAY)	1	Rp46.000	L:600!300
12	09352-50006-600 SUB: 09352-50903-600	HOSE (3 WAY TO SEPARATOR)	1	Rp46.000	L:600!320
13	09352-50006-600 SUB: 09352-50903-600	HOSE (SEPARATOR TO E/H)	1	Rp46.000	L:600!490
14	09367-06002-000	3 WAY	1	Rp21.000
15	09401-08413-000	CLIP	8	Rp19.500
16	09401-25406-000	CLIP	2	Rp35.000
17	01550-06257-000 SUB: 01550B06257N000	BOLT	2	Rp3.500
18	DISCONTINUE SUB: 01550-06407-000	BOLT	2	-
19	DISCONTINUE SUB: 29404-93J10-000	CLAMP	1	-	?09404-06432
