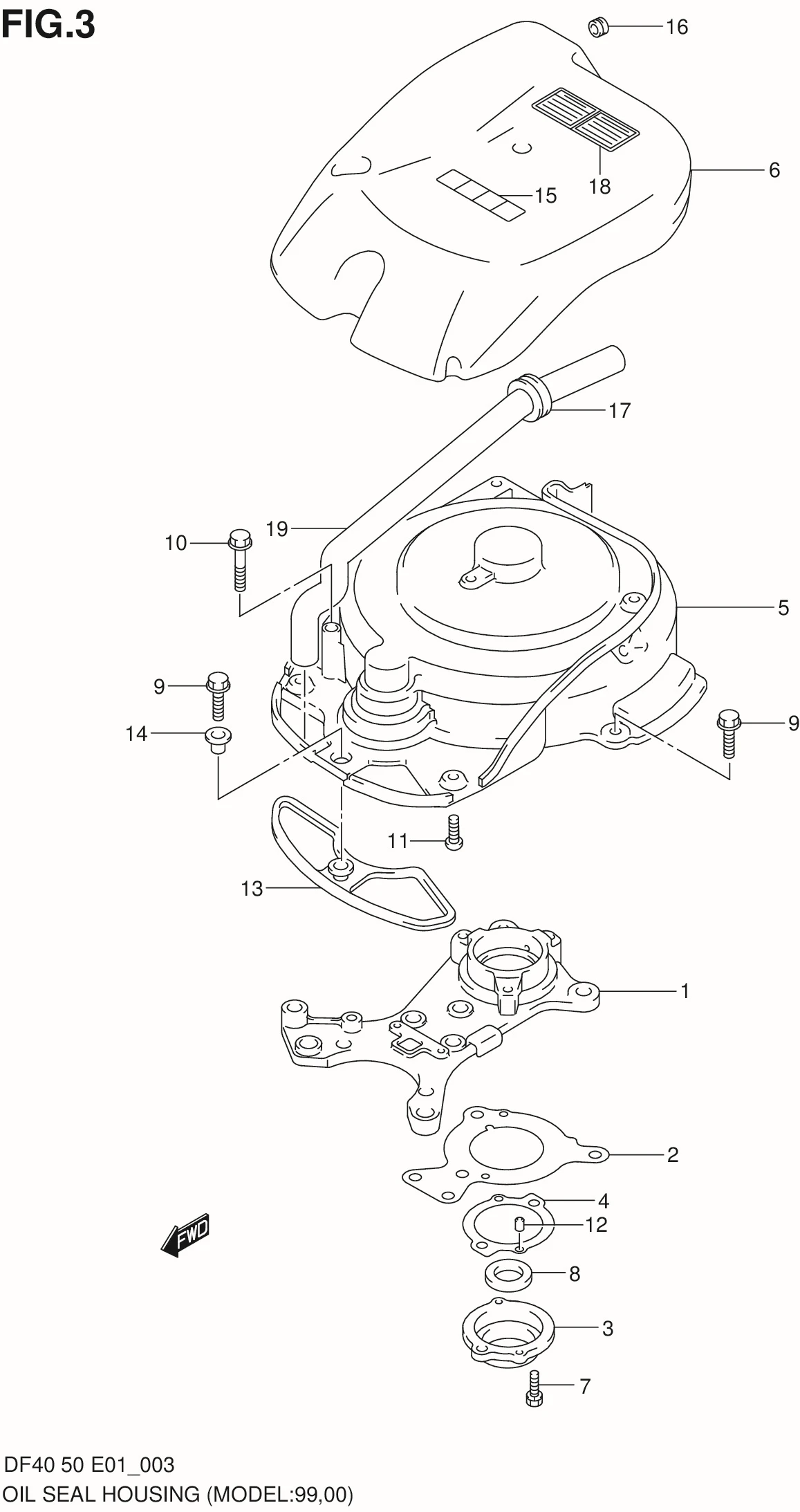

FIG 3 OIL SEAL HOUSING (MODEL:99,00)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	11411-87J00-019	HOUSING, UPPER OIL SEAL	1	Rp1.169.000
2	11413-87J00-000	GASKET, UPPER OIL SEAL HOUSING	1	Rp72.500
3	11431-87J00-019	HOUSING, UNDER OIL SEAL	1	Rp130.000
4	11433-87J00-000	GASKET, UNDER OIL SEAL HOUSING	1	Rp56.500
5	DISCONTINUE SUB: 11511-87J00-000	COVER, RING GEAR	1	-
6	11513-87J00-000	COVER, FLYWHEEL MAGNETO UPPER	1	Rp208.000
7	09117-06031-000	BOLT (6X20)	2	Rp22.000
8	09282-17009-000	SEAL, OIL	1	Rp69.000
9	01550-06207-000 SUB: 01550B06207N000	BOLT	8	Rp3.000
10	01550-06507-000	BOLT	1	Rp17.500
11	03541-0516A-000 SUB: 03541B05163N000	SCREW	7	Rp3.500
12	04221-04089-000 SUB: 04221B04089N000	PIN	4	Rp3.500
13	11531-87J00-000	SEAL, MAGNETO COVER	1	Rp57.000
14	09169-06062-000	WASHER	1	Rp16.500
15	69711-93E11-000 SUB: 69711-93E10-000	LABEL, CAUTION	1	Rp39.000	?69711-93E00
16	48169-12JA0-000 SUB: 09320-08013L000	GROMMET	1	Rp15.000
17	09320-20008-000	GROMMET	1	Rp26.500
18	61472-93E30-000	LABEL, MAGNETO COVER	1	-
19	11174-87J00-000	HOSE, BREATHER	1	-
