DF40 50 E01

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG 1 CYLINDER HEAD FIG 2 CYLINDER BLOCK FIG 3 OIL SEAL HOUSING (MODEL:99,00)FIG 4 OIL SEAL HOUSING (MODLE:01%10)FIG 5 CRANKSHAFT FIG 6 TIMING CHAIN FIG 7 CAMSHAFT FIG 8 INLET MANIFOLD FIG 9 SILENCER (MODEL:99,00)FIG 10 SILENCER (MODEL:01%06)FIG 10A SILENCER (DF40:680712%,DF50:681339%)FIG 11 FUEL VAPOR SEPARATOR (MODEL:99)FIG 12 FUEL VAPOR SEPARATOR (MODEL:00%10)FIG 13 FUEL INJECTOR FIG 14 FUEL PUMP FIG 15 WATER PUMP FIG 16 THERMOSTAT FIG 17 THROTTLE BODY FIG 18 OIL PUMP FIG 19 OIL PAN FIG 20 CLUTCH FIG 21 SHIFT ROD FIG 22 TRANSMISSION (*)FIG 23 TRANSMISSION (*)FIG 24 STARTING MOTOR (MODEL:99,00)FIG 25 STARTING MOTOR (MODEL:01%04)FIG 26 STARTING MOTOR (MODEL:05%10)FIG 27 MAGNETO (MODEL:99,00)FIG 28 MAGNETO (MODEL:01%04)FIG 29 MAGNETO (MODEL:05%10)FIG 30 IGNITION COIL (MODEL:99%04)FIG 31 IGNITION COIL (MODEL:05%10)FIG 32 HARNESS FIG 33 ENGINE CONTROL UNIT FIG 34 SENSOR FIG 35 CLAMP BRACKET (MODEL:99,00)FIG 36 CLAMP BRACKET (MODEL:01%10)FIG 37 SWIVEL BRACKET (MODEL:99,00)FIG 38 SWIVEL BRACKET (MODEL:01%10)FIG 39 GAS CYLINDER (TYPE:QH,WQH MODEL:99,00)FIG 40 GAS CYLINDER (TYPE:QH,WQH MODEL:01%10)FIG 41 POWER TRIM/TILT (TYPE:T MODEL:99,00)FIG 42 POWER TRIM/TILT (TYPE:T MODEL:01%10)FIG 43 PTT MOTOR (TYPE:T MODEL:99,00)FIG 44 PTT MOTOR (TYPE:T MODEL:01%10)FIG 45 ENGINE HOLDER FIG 46 DRIVE SHAFT HOUSING FIG 47 GEAR CASE FIG 48 SIDE COVER FIG 49 ENGINE COVER (MODEL:99%02)FIG 50 ENGINE COVER (MODEL:03%09)FIG 50A ENGINE COVER (MODEL:10)FIG 51 TILLER HANDLE (TYPE:QH,WQH,TH)FIG 52 FUEL TANK (STEEL)FIG 53 FUEL TANK (PLASTIC)FIG 54 DRAG LINK FIG 55 REMOTE CONTROL (MODEL:99%03)FIG 56 REMOTE CONTROL (MODEL:04)FIG 57 REMOTE CONTROL (MODEL:05%10)FIG 58 OPT:METER (MODEL:99%04)FIG 59 OPT:METER (MODEL:05%)FIG 60 OPT:METER (MODEL:08%)FIG 61 OPT:TRIM SENDER FIG 62 OPT:HARNESS FIG 63 OPT:HARNESS (MODEL:08%)FIG 64 OPT:SWITCH (MODEL:99%04)FIG 65 OPT:SWITCH (MODEL:05%10)FIG 66 OPT:TRIM SWITCH (MODEL:99%04)FIG 67 OPT:TOP MOUNT SINGLE (1)(MODEL:05%10)FIG 68 OPT:TOP MOUNT SINGLE (2)(MODEL:05%10)FIG 69 OPT:TOP MOUNT DUAL (1)(MODEL:05%10)FIG 70 OPT:TOP MOUNT DUAL (2)(MODEL:05%10)FIG 71 OPT:TILLER HANDLE FIG 72 OPT:GASKET SET

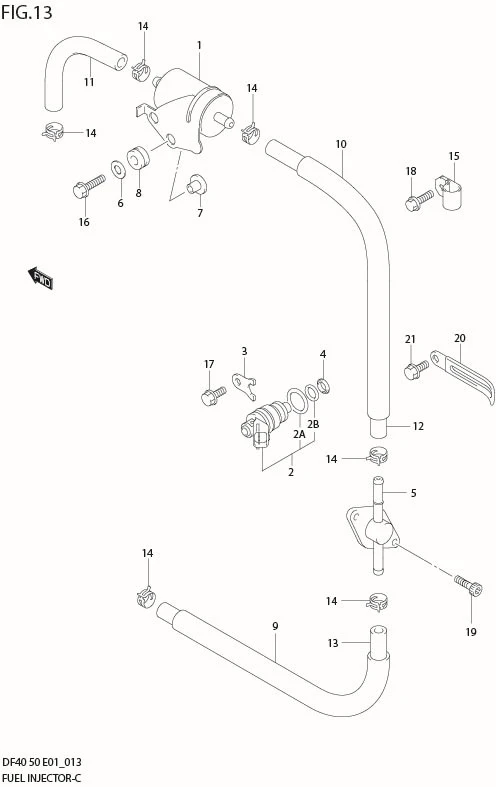

FIG 13 FUEL INJECTOR

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	15410-87J00-000	FILTER, HIGH PRESSURE FUEL	1	Rp363.500
2	DISCONTINUE SUB: 15710-87J00-000	INJECTOR, FUEL	3	-
2A	DISCONTINUE SUB: 15761-94900-000	?O RING, UPPER	3	-
2B	DISCONTINUE SUB: 15771-94900-000	?O RING, LOWER	3	-
3	15741-87J00-000	STOPPER, FUEL INJECTOR	3	Rp34.000
4	DISCONTINUE SUB: 15751-94900-000	CUSHION, FUEL INJECTOR	3	-
5	15830-87J10-000	JOINT, FUEL MAIN	1	Rp316.500
6	09160-06006-000 SUB: 09160-06084-000	WASHER	2	Rp11.000
7	09169-06062-000	WASHER	2	Rp16.500
8	09320-08501-000	CUSHION	2	Rp21.500
9	18498-99E20-000	PROTECTOR, FUEL HOSE (L:450)	1	Rp64.000	L:450!190
10	18498-99E20-000	PROTECTOR, FUEL HOSE (L:450)	1	Rp64.000	L:450!140
11	15681-87J00-000	HOSE, FUEL (TANK TO FF)	1	Rp147.000
12	09356-75137-600	HOSE (3 WAY TO SEPARATOR)	1	Rp1.190.000	L:600!220
13	09356-75137-600	HOSE (JOINT TO SEPARATOR)	1	Rp1.190.000	L:600!270
14	09401-11425-000	CLIP	6	Rp35.500
15	09403-18410-000	CLAMP	1	Rp23.000	MODEL:01%09
16	DISCONTINUE SUB: 01500-06257-000	BOLT	2	-
17	01550-06127-000	BOLT	3	Rp17.000
18	DISCONTINUE SUB: 01550-08167-000	BOLT	1	-	MODEL:01%10
19	07120-06167-000	BOLT	2	Rp19.000
20	09404-06434-000	CLAMP (L:95)	1	Rp13.500	%MODEL:00
21	01550-06127-000	BOLT	1	Rp17.000	%MODEL:00
