DF40 50 E01

< KEMBALI KE THUMBNAIL FIG 1 CYLINDER HEADFIG 2 CYLINDER BLOCKFIG 3 OIL SEAL HOUSING (MODEL:99,00)FIG 4 OIL SEAL HOUSING (MODLE:01%10)FIG 5 CRANKSHAFTFIG 6 TIMING CHAINFIG 7 CAMSHAFTFIG 8 INLET MANIFOLDFIG 9 SILENCER (MODEL:99,00)FIG 10 SILENCER (MODEL:01%06)FIG 10A SILENCER (DF40:680712%,DF50:681339%)FIG 11 FUEL VAPOR SEPARATOR (MODEL:99)FIG 12 FUEL VAPOR SEPARATOR (MODEL:00%10)FIG 13 FUEL INJECTORFIG 14 FUEL PUMPFIG 15 WATER PUMPFIG 16 THERMOSTATFIG 17 THROTTLE BODYFIG 18 OIL PUMPFIG 19 OIL PANFIG 20 CLUTCHFIG 21 SHIFT RODFIG 22 TRANSMISSION (*)FIG 23 TRANSMISSION (*)FIG 24 STARTING MOTOR (MODEL:99,00)FIG 25 STARTING MOTOR (MODEL:01%04)FIG 26 STARTING MOTOR (MODEL:05%10)FIG 27 MAGNETO (MODEL:99,00)FIG 28 MAGNETO (MODEL:01%04)FIG 29 MAGNETO (MODEL:05%10)FIG 30 IGNITION COIL (MODEL:99%04)FIG 31 IGNITION COIL (MODEL:05%10)FIG 32 HARNESSFIG 33 ENGINE CONTROL UNITFIG 34 SENSORFIG 35 CLAMP BRACKET (MODEL:99,00)FIG 36 CLAMP BRACKET (MODEL:01%10)FIG 37 SWIVEL BRACKET (MODEL:99,00)FIG 38 SWIVEL BRACKET (MODEL:01%10)FIG 39 GAS CYLINDER (TYPE:QH,WQH MODEL:99,00)FIG 40 GAS CYLINDER (TYPE:QH,WQH MODEL:01%10)FIG 41 POWER TRIM/TILT (TYPE:T MODEL:99,00)FIG 42 POWER TRIM/TILT (TYPE:T MODEL:01%10)FIG 43 PTT MOTOR (TYPE:T MODEL:99,00)FIG 44 PTT MOTOR (TYPE:T MODEL:01%10)FIG 45 ENGINE HOLDERFIG 46 DRIVE SHAFT HOUSINGFIG 47 GEAR CASEFIG 48 SIDE COVERFIG 49 ENGINE COVER (MODEL:99%02)FIG 50 ENGINE COVER (MODEL:03%09)FIG 50A ENGINE COVER (MODEL:10)FIG 51 TILLER HANDLE (TYPE:QH,WQH,TH)FIG 52 FUEL TANK (STEEL)FIG 53 FUEL TANK (PLASTIC)FIG 54 DRAG LINKFIG 55 REMOTE CONTROL (MODEL:99%03)FIG 56 REMOTE CONTROL (MODEL:04)FIG 57 REMOTE CONTROL (MODEL:05%10)FIG 58 OPT:METER (MODEL:99%04)FIG 59 OPT:METER (MODEL:05%)FIG 60 OPT:METER (MODEL:08%)FIG 61 OPT:TRIM SENDERFIG 62 OPT:HARNESSFIG 63 OPT:HARNESS (MODEL:08%)FIG 64 OPT:SWITCH (MODEL:99%04)FIG 65 OPT:SWITCH (MODEL:05%10)FIG 66 OPT:TRIM SWITCH (MODEL:99%04)FIG 67 OPT:TOP MOUNT SINGLE (1)(MODEL:05%10)FIG 68 OPT:TOP MOUNT SINGLE (2)(MODEL:05%10)FIG 69 OPT:TOP MOUNT DUAL (1)(MODEL:05%10)FIG 70 OPT:TOP MOUNT DUAL (2)(MODEL:05%10)FIG 71 OPT:TILLER HANDLEFIG 72 OPT:GASKET SET

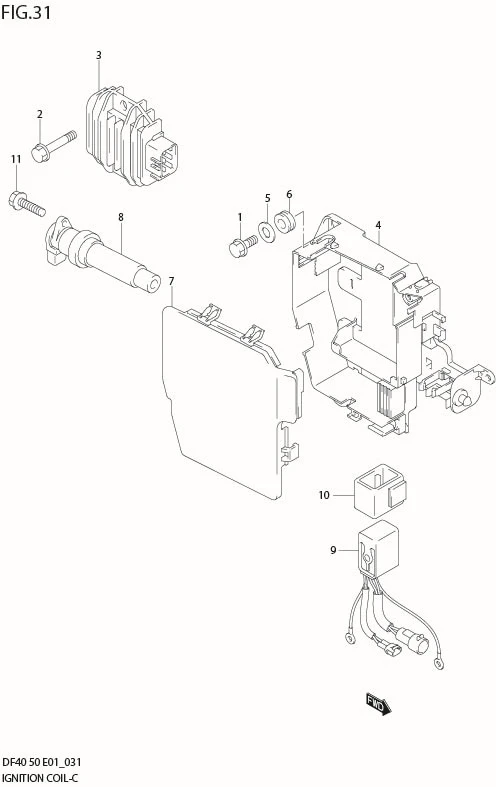

FIG 31 IGNITION COIL (MODEL:05%10)

FIG 31  IGNITION COIL (MODEL:05%10)
No No. Part Description Qty Price Per Pcs Remarks
1 01550-06127-000 BOLT 2 Rp17.000
2 01580-06257-000 BOLT 2 Rp17.500
3 DISCONTINUE
SUB: 32800-38F10-000
RECTIFIER/REGULATOR 1 -
4 32890-87J21-000 HOLDER, ELECTRIC PARTS 1 Rp367.000
5 DISCONTINUE
SUB: 09160-06054-000
WASHER (6.5X22X1.6) 2 -
6 09320-12090-000
SUB: 09320-12011-000
CUSHION 2 Rp13.500
7 32891-87J10-000 COVER, ELECTRIC PARTS HOLDER 1 Rp268.000
8 33410-87J01-000 COIL, IGNITION 3 Rp1.312.500
9-1 38410-93J12-000
SUB: 38410-93J00-000
RELAY, PTT 2 Rp1.174.500
9-2 38410-93J12-000
SUB: 38410-93J11-000
RELAY, PTT 2 Rp1.174.500 MODEL:06%10
10 38415-93J00-000 HOLDER, PTT RELAY 1 Rp52.000
11 01550-06207-000
SUB: 01550B06207N000
BOLT 3 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
