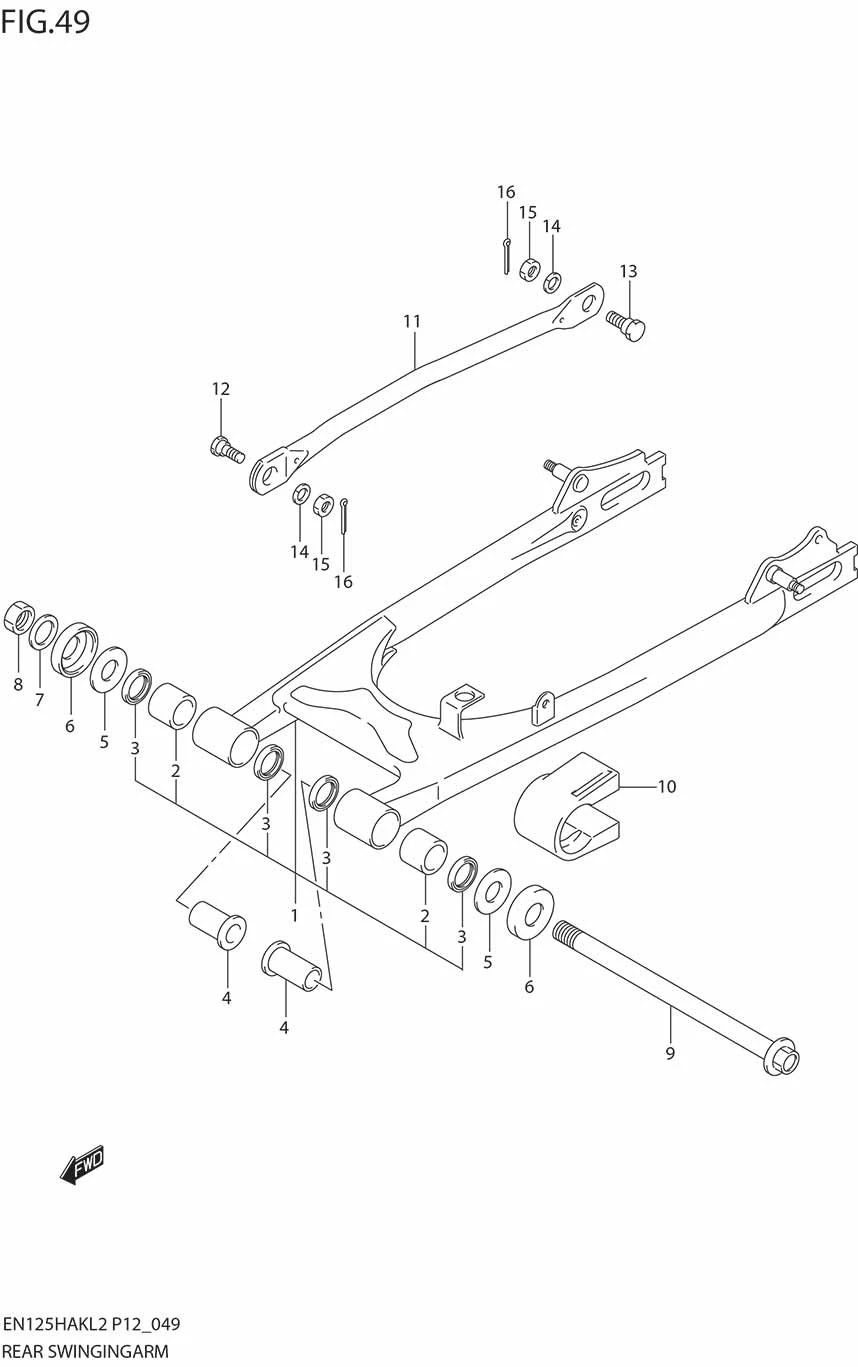

FIG.49 REAR SWINGING ARM

FIG.49 REAR SWINGING ARM
No No. Part Description Qty Price Per Pcs Remarks
1 61000-26H10-019 SWINGING ARM ASSY, REAR (BLACK) 1 -
2 61261-05350-000 ?BUSH 2 -
3 09283-20031-000 ?OIL SEAL (20X27X5) 4 Rp27.500
4 61251-05300-000 SPACER, ARM PIVOT 2 Rp121.500
5 08211-14321-000 WASHER 2 Rp10.500
6 61262-38301-000
SUB: 61262-38300-000		 COVER, ARM PIVOT 2 Rp62.000
7 08322-0114B-000 WASHER 1 Rp16.000
8 08319-2114A-000 NUT 1 Rp24.500
9 61211-45F10-000 SHAFT, PIVOT 1 Rp55.500
10 61273H05300H000
SUB: 61273-05300-000		 BUFFER, CHAIN TOUCH DEFENSE 1 Rp53.500
11 64310-26H00-000 TORQUE LINK, REAR 1 Rp56.500
12 09111-08012-000 BOLT, FRONT (8X22.5) 1 Rp19.500
13 09111-08013-000 BOLT, REAR (8X26.5) 1 Rp5.500
14 09162-08008-000 LOCK WASHER 2 Rp16.500
15 09140-08008-000 NUT 2 Rp10.500
16 04111-2020A-000 COTTER PIN 2 Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
